23.5 GHA 15 Height Advisor
23.5.1 J2001

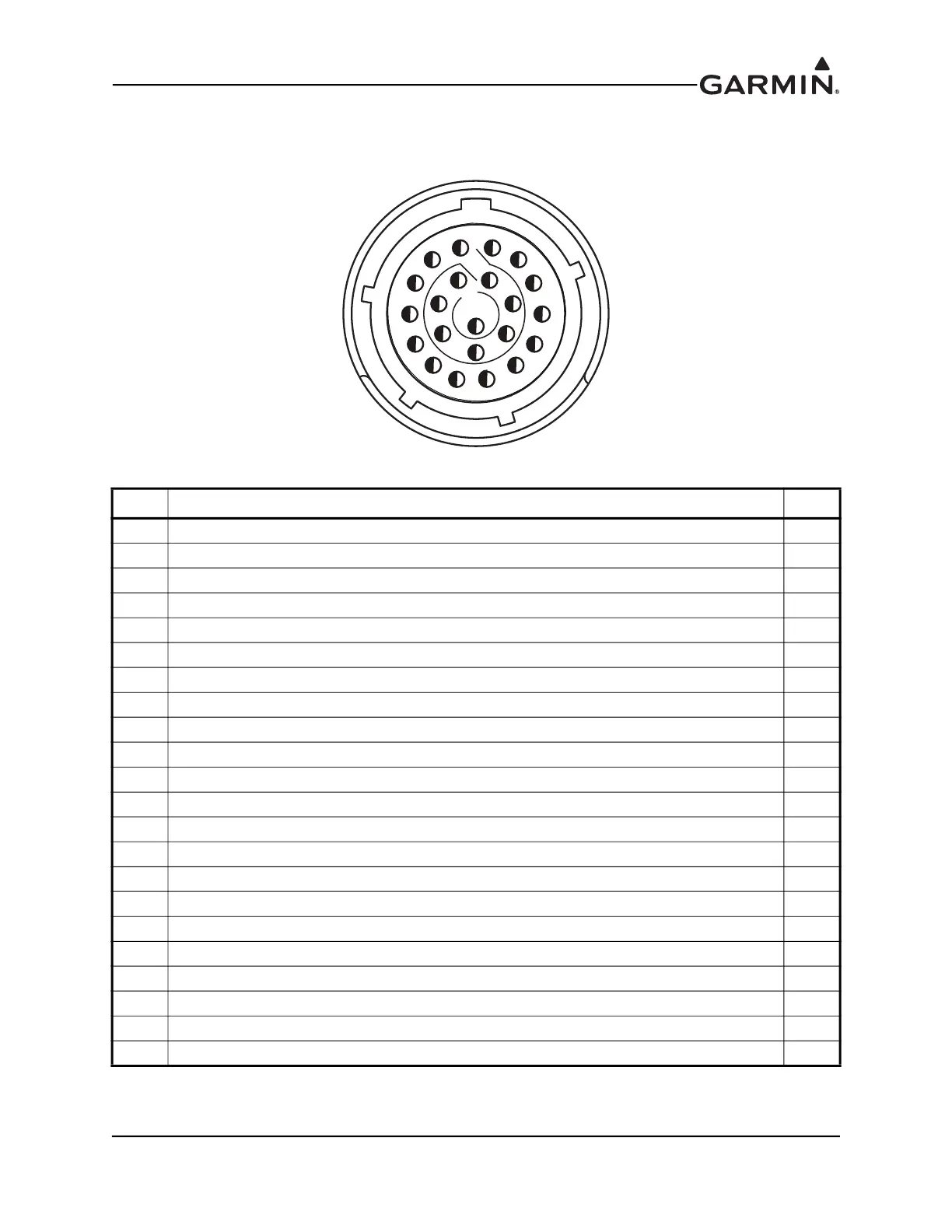

Figure 23-16 View of J2001 connector, from front of unit
Pin Pin Name I/O
1 POWER GROUND --
2 RESERVED --
3 RESERVED --
4 RESERVED --
5 RESERVED --
6 RESERVED --
7 CAN BUS LO I/O
8 CAN BUS HI I/O
9 USBO DP I/O
10 USBO DM I/O
11 RESERVED --
12 RESERVED --
13 RESERVED --
14 AIRCRAFT POWER IN
15 RESERVED --
16 RESERVED --
17 N/C --
18 CAN BUS TERM OUT
19 USB VBUS IN
20 SIGNAL GROUND --
21 RESERVED --
22 SIGNAL GROUND --
1
21
22
