23.4.3 J243 Connector

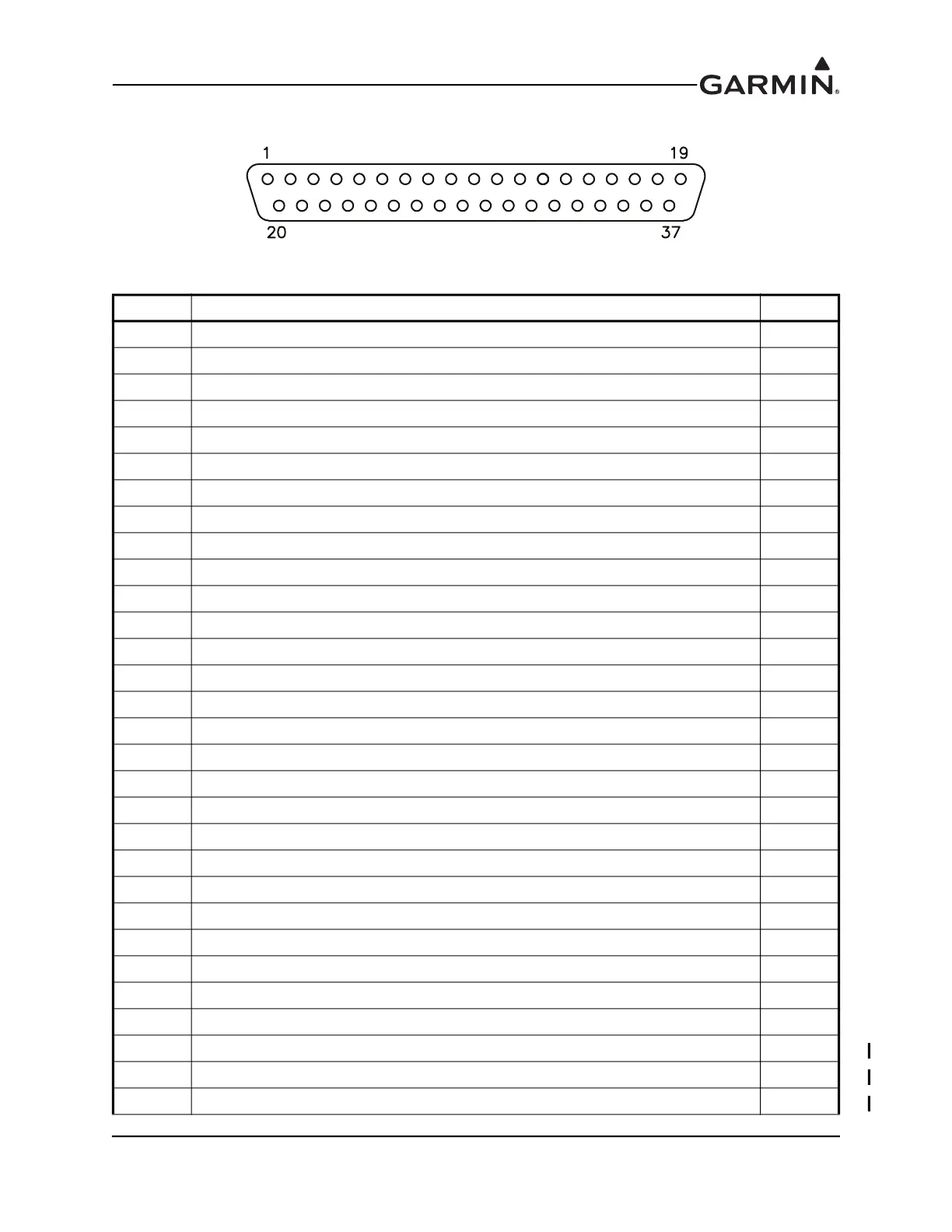

Figure 23-13 J243 on GEA 24, as viewed looking at connector on unit
Pin Pin Name I/O
1 FUEL PRESS GND --
2 FUEL PRESS In
3 FUEL PRESS XDCR +12V Out
4 FUEL PRESS XDCR +5V Out
5 RPM XDCR GND_2 --
6 RPM 2 In
7 RPM XDCR GND_1 --
8 RPM 1 In
9 RPM XDCR +12V_1 Out
10 RPM XDCR +12V_2 Out
11 RESERVED / SPARE In
12 MANIFOLD PRESS GND --
13 MANIFOLD PRESS In
14 MANIFOLD PRESS XDCR +12V Out
15 MANIFOLD PRESS XDCR +5V Out
16 OIL PRESS GND --
17 OIL PRESS HI In
18 OIL PRESS XDCR +12V Out
19 OIL PRESS XDCR +5V Out
20 FUEL XDCR GND_1 --
21 FUEL RETURN (shared w/Pin 37, J244 connector) In
22 FUEL XDCR GND_2 --
23 FUEL FLOW (shared with Pin 36, J244 connector) In
24 FUEL XDCR +12V_1 Out
25 FUEL XDCR +12V_2 Out
26 GP +5V_1 Out
27 GP GND_1 --
28 GP 7 / TEMP 2 LO In
29 GP 7 / TEMP 2 HI In
30 GP 6 / TEMP 1 LO In
