30.4.32.2 Engine/Airframe Input Configuration
The Engine/Airframe Input Configuration section of the Engine Configuration Page allows selection of the
engine/airframe inputs that are connected to the GEA 24 or GSU 73, and for customizing the displayed
resulting information on the EIS display and the Engine Page. A list of analog, digital, and discrete inputs
appropriate for the connected EIS LRU type (GEA 24, Figure 30-58 or GSU 73, Figure 30-61
) will be
displayed.

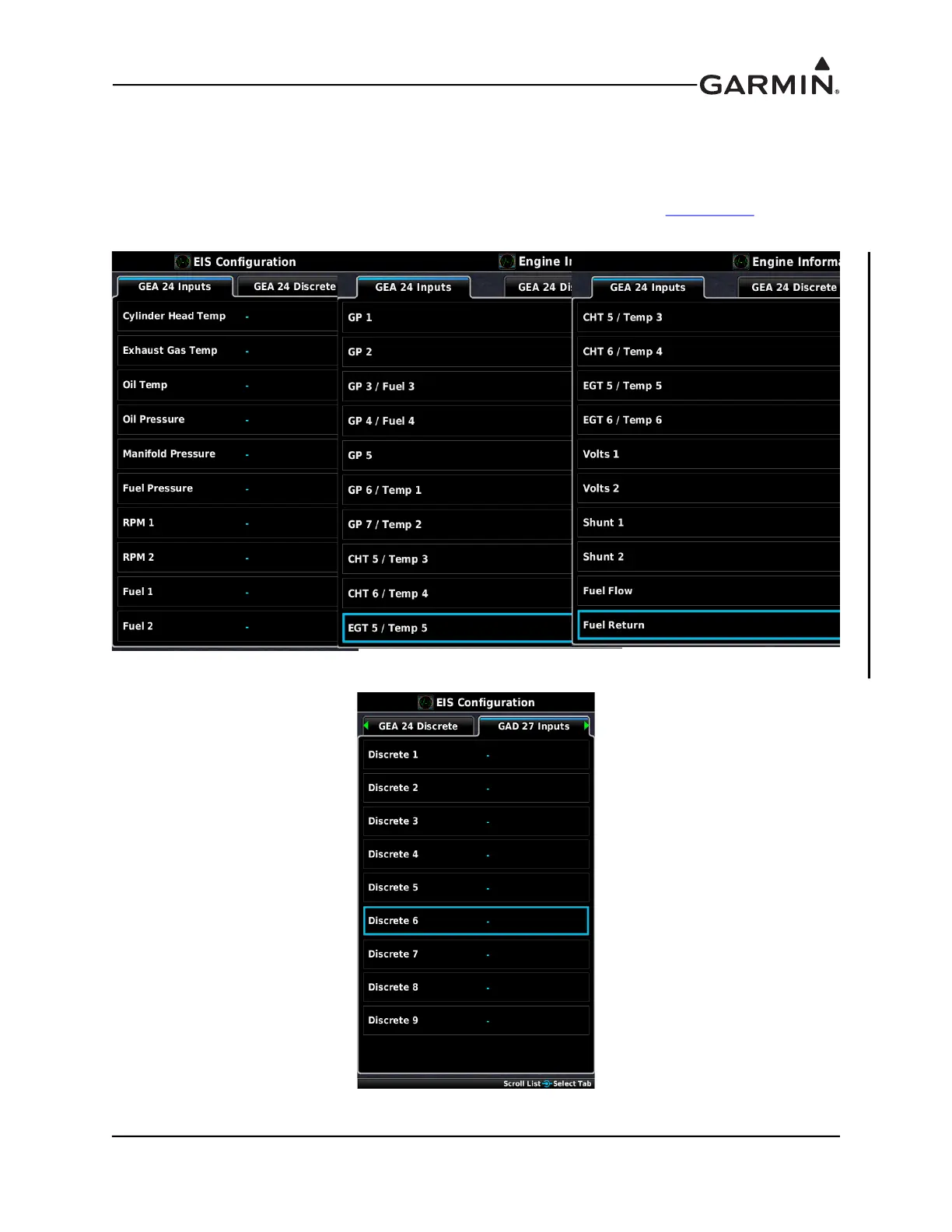

Figure 30-58 GEA 24 Engine/Airframe Input Configuration Page
Figure 30-59 GAD 27 Engine/Airframe Input Configuration Page
