190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page H-120
H.4.19.3 Engine/Airframe Input Configuration
The Engine/Airframe Input Configuration section of the Engine Configuration Page allows selection of the
engine/airframe inputs that are connected to the GEA 24 or GSU 73, and for customizing the displayed
resulting information on the EIS display and the MFD Engine Page. A list of analog, digital, and discrete
inputs appropriate for the connected EIS LRU type (GEA 24, Figure H-35 or GSU 73, Figure H-36
) will
be displayed.

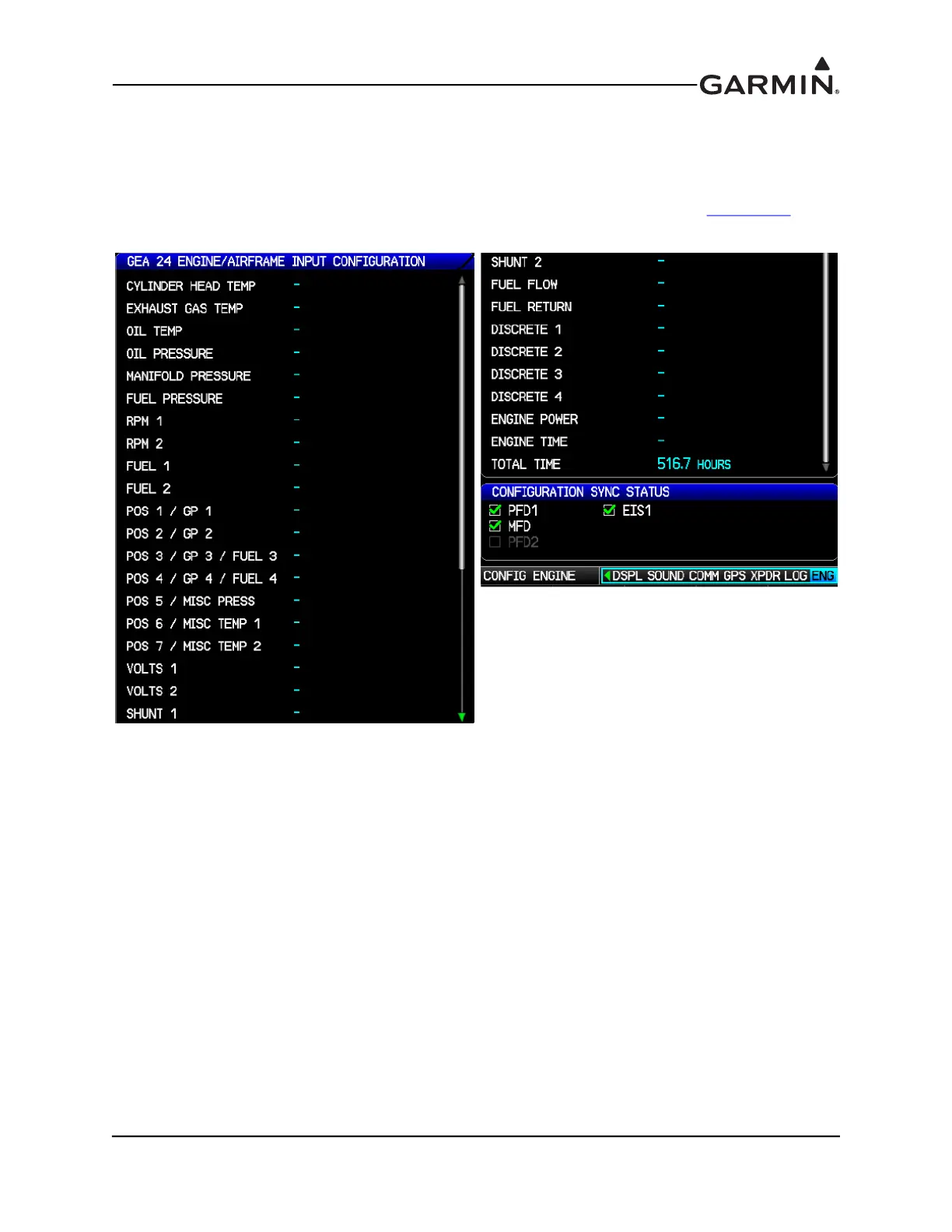

Figure H-35 GEA 24 Engine/Airframe Input Configuration Page
