1.730 43.94
5.380 136.65
CUT OUT PANEL
TO INSIDE LINE
IMPORTANT!
Make sure the Page Scaling setting
is set to NONE when printing this
page. Verify dimensions of printed
template are accurate before
cutting panel.
2.
1.
DIMENSIONS ARE NOMINAL AND TOLERANCES ARE NOT IMPLIED UNLESS
DIMENSIONS: INCHES[mm]. METRIC VALUES ARE FOR REFERENCE ONLY.
NOTES:
SPECIFICALLY STATED.

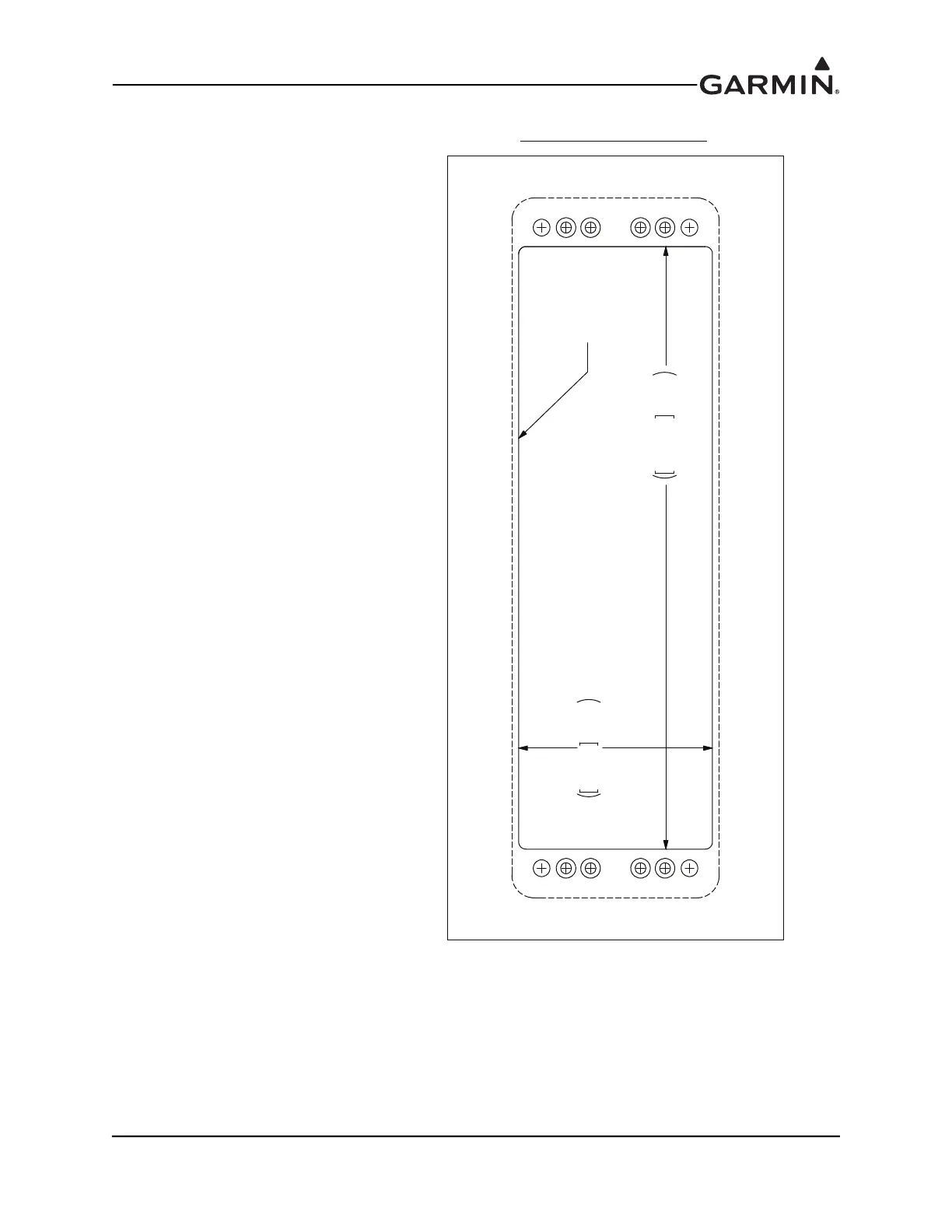

GMC 305 PANEL CUTOUT
