4. TO DISENGAGE THE UNIT, ROTATE FASTENERS CCW. DO NOT EXCEED 15 IN-LBS OF TORQUE.
3.
INSTALLATION NOTES:
THE PAWL LATCH FASTENERS WILL ACCOMMODATE PANEL THICKNESSES FROM1.
.075[1.91] TO .140[3.56] THICK AND REQUIRE NO ADDITIONAL MOUNTING HARDWARE.
THE FASTENERS ARE ENGAGED AND DISENGAGED BY USE OF A 3/32" HEX TOOL.2.
TORQUE FASTENERS TO 20±2 IN-LBS ON INSTALLATION.

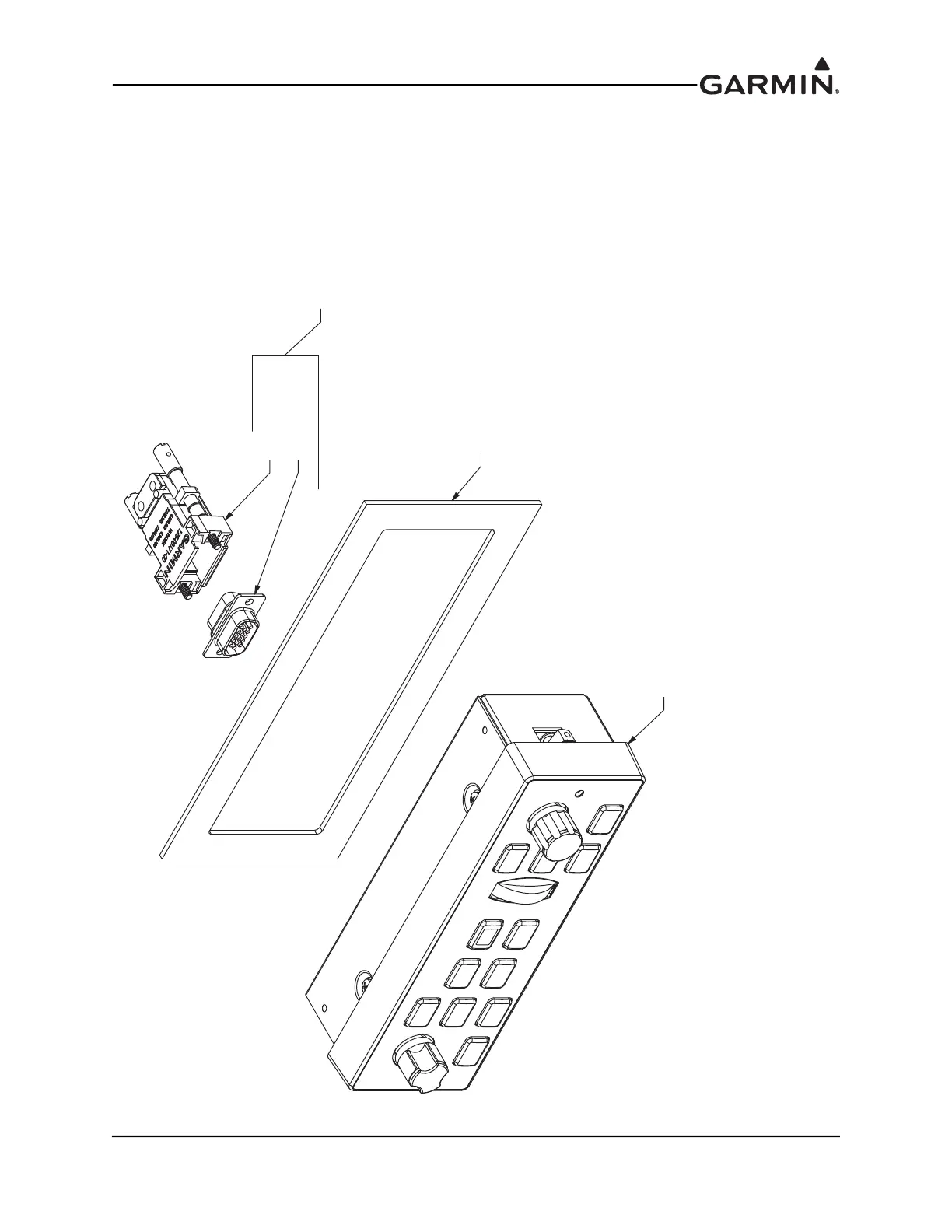

CONNECTOR KIT
011-01855-00
AIRCRAFT PANEL
INCLUDED IN 011-01824-01
(NOTE 1)
330-00366-15
GMC 507 UNIT
011-04548-00 SHOWN
