190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 15-5

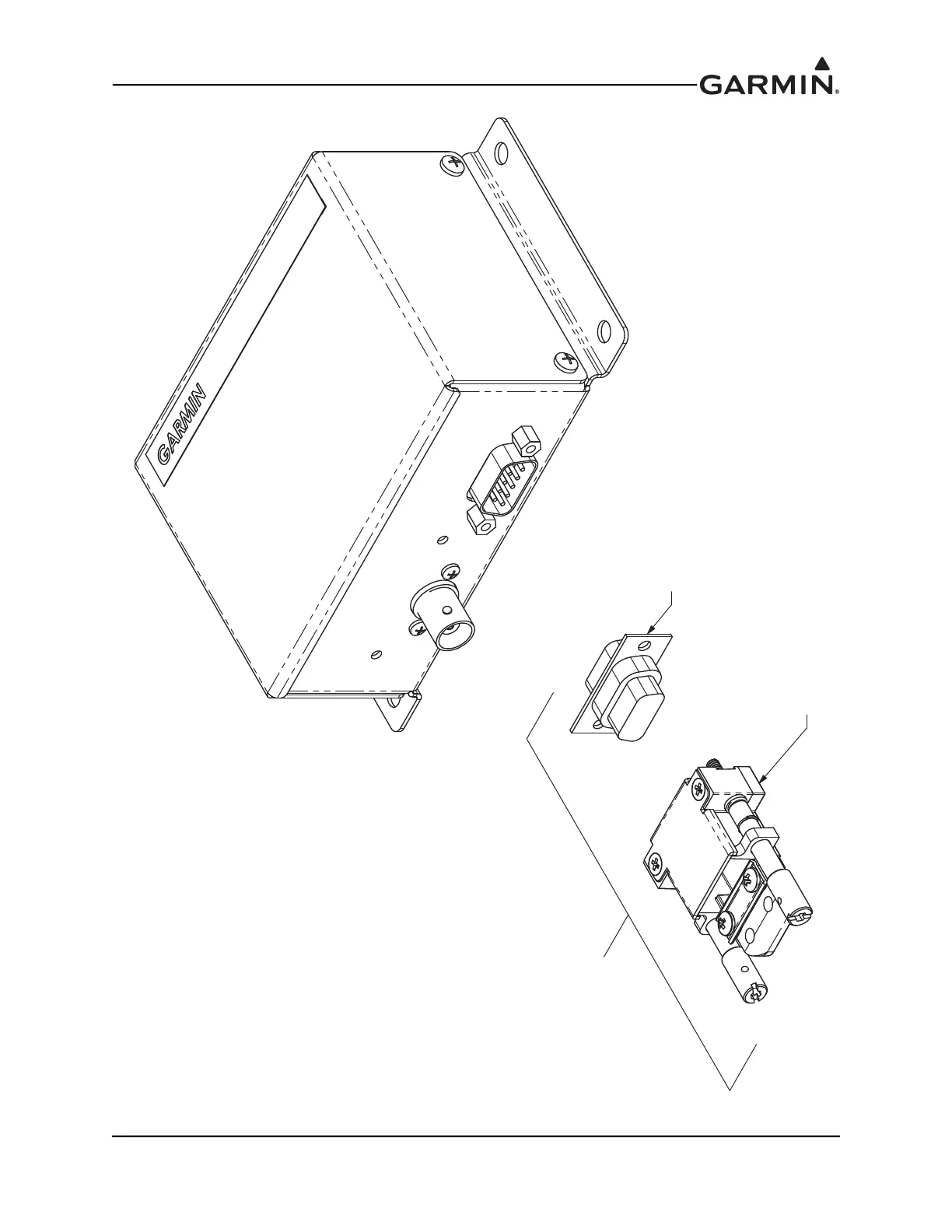

Figure 15-3 GPS 20A Installation Drawing (no CAN terminator)

011-01855-00

011-03913-00

J201

GPS 20A

330-00625-09

P201

GPS 20A

CONNECTOR KIT

011-03914-00
