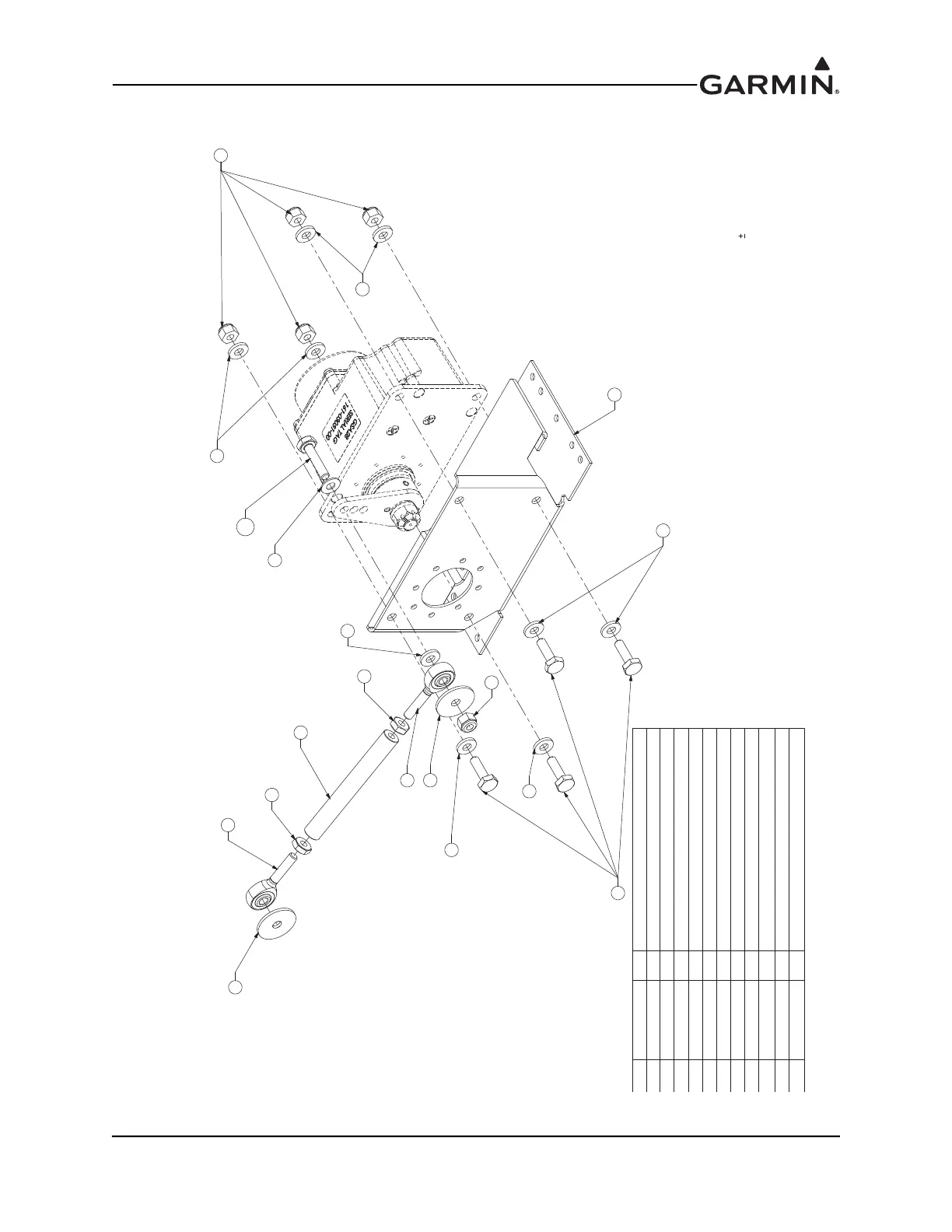

Figure 16-8.8 GSA 28 Generic, Push-Pull Mounting Kit w/Bracket 011-02952-01
011-02952-01
GSA28 MOUNTING KIT, GENERIC, PUSH-PULL, W/BRACKET
ITEM GARMIN P/N QTY DESCRIPTION
1 212-00080-03 2 AN970-3 WASHER 2 382-00019-02 2 MALE ROD END BEARING 3 210-00116-03 2 AN315-3R JAM JUT 4 117-00542-07 1 PUSH ROD, 8.0" UNTAPPED 5 212-00035-10 9 AN960-10 WASHER 6 211-00090-01 4 AN3-5A BOLT 7 212-00043-10 1 AN960-10L (THIN) WASHER 8 210-00117-03 5 AN365-1032A LOCK NUT 9 115-01854-00 1 GSA28 MOUNTING BRAKCET, GENERIC
10 211-00090-05 1 AN3-7A BOLT 11 231-00034-04 1 COTTER PIN, MS24665-208
1
1
2
3
4
3
2
5
5
5
9
7
6
10
5
5
8
5
8
NOTES:
PUSH ROD (ITEM 4) IS SUPPLIED 8" LONG AND UNTAPPED. CUT TO DESIRED LENGTH1. AND TAP #10-32 THREADS X .61" MIN DEEP IN EACH END. ALLOW ENOUGH LENGTH FOR THREAD ENGAMENT BETWEEN PUSH ROD (ITEM 4) AND ROD END (ITEM 2). ACCEPTABLE THREAD ENGAGMENT BETWEEN ITEM 2 AND 4 IS 0.492"
.117".
IF COTTER PIN IS REMOVE FROM GSA28 CASTLE NUT, DISCARD COTTER PIN AND2. REPLACE WITH NEW COTTER PIN (ITEM 11) INCLUDED.
