190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 24-17

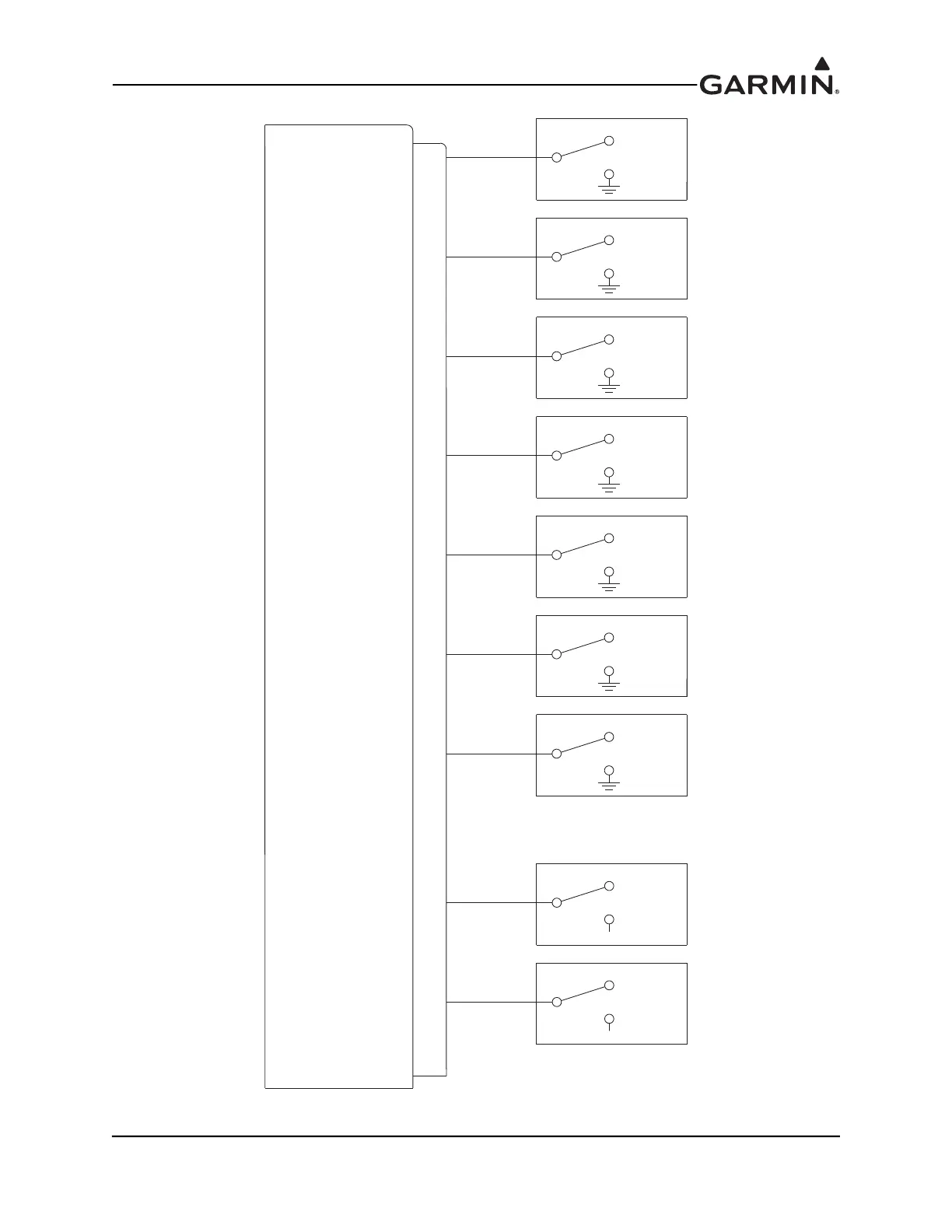

Figure 24-2.2 GAD 27 Interconnect Example (page 3 of 5)
GAD 27
J271
DISCRETE IN 1 9
DISCRETE SUPPORT
ACTIVE
INACTIVE
ACTIVE LOW INPUT
10
ACTIVE
INACTIVE
ACTIVE LOW INPUT
DISCRETE IN 2
11
ACTIVE
INACTIVE
ACTIVE LOW INPUT
DISCRETE IN 3
12
ACTIVE
INACTIVE
ACTIVE LOW INPUT
DISCRETE IN 4
13
ACTIVE
INACTIVE
ACTIVE LOW INPUT
DISCRETE IN 5
14
ACTIVE
INACTIVE
ACTIVE LOW INPUT
DISCRETE IN 6
15
ACTIVE
INACTIVE
ACTIVE LOW INPUT
DISCRETE IN 7
48
ACTIVE
INACTIVE
ACTIVE HIGH INPUT
DISCRETE IN 8
+14V
49
ACTIVE
INACTIVE
ACTIVE HIGH INPUT
DISCRETE IN 9
+14V
