190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 24-19

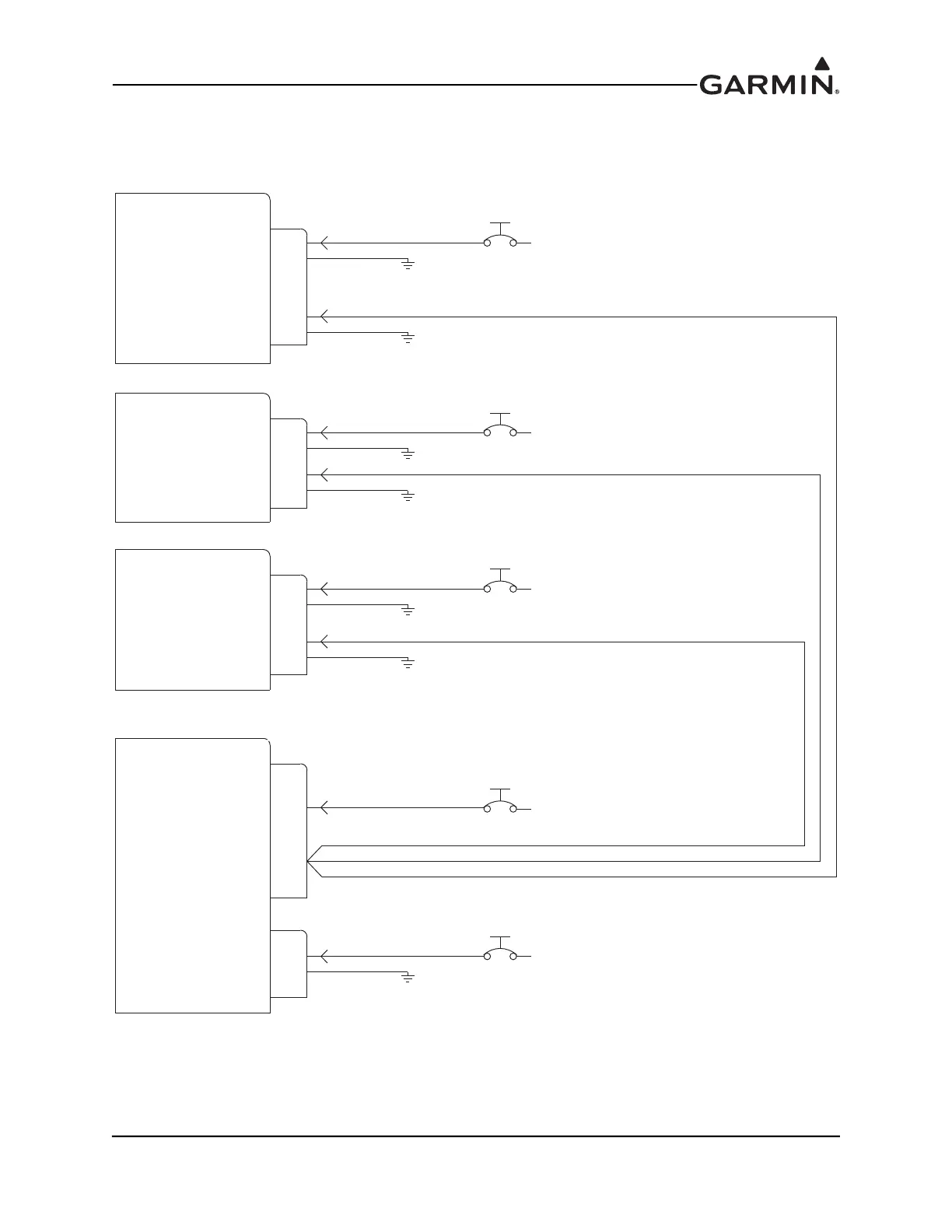

Figure 24-2.2 GAD 27 Interconnect Keep-Alive Example (page 5 of 5)

GEA 24 ENGINE MON.

GDU 4XX/37X PFD

AIRCRAFT POWER 2

AIRCRAFT POWER 1

POWER GROUND

# 22

GDU

POWER GROUND 15

# 22

P4X02/P3701

AIRCRAFT POWER 2

AIRCRAFT POWER 1

POWER GROUND

# 22

GEA 24

POWER GROUND 9

# 22

P241

GAD 27

GAD 27 POWER IN 7

# 22

GAD 27

KEEP ALIVE POWER OUT

# 22

GSU 25 ADAHRS

AIRCRAFT POWER 2

AIRCRAFT POWER 1

POWER GROUND

# 22

GSU 25

POWER GROUND 9

# 22

P251

# 22

KEEP ALIVE POWER IN

MAXIMUM 3.5A AT 12V ALL DEVICES CONNECTED TO PIN 2

TB273

10A

14 Vdc

KEEP ALIVE

14 Vdc

J271

# 18

POWER GROUND 8

# 22

14 Vdc
