190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 24-21

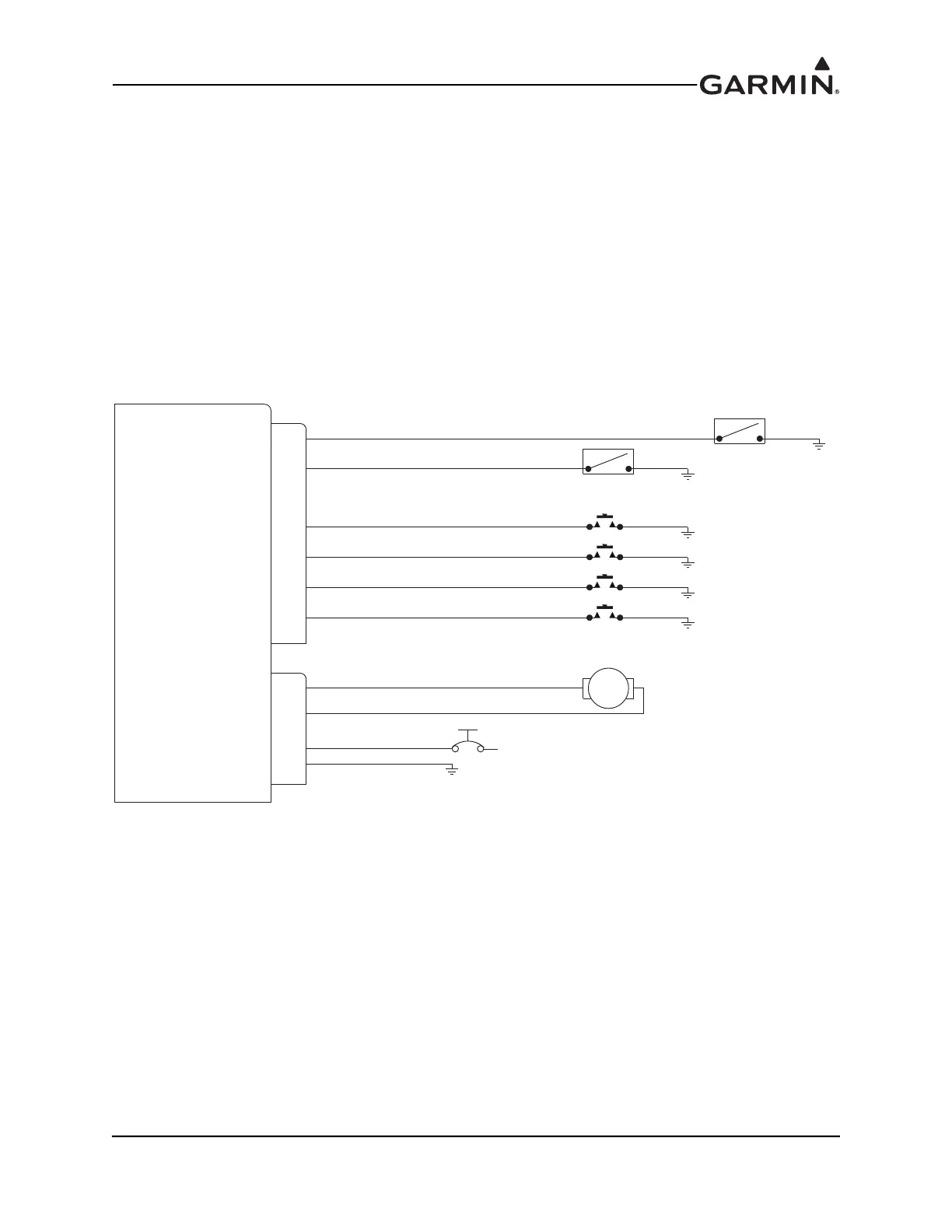

Figure 24-2.3 GAD 27 Flap Switch Example, Push Button (page 2 of 3)

GAD 27

J271

FLAP SUPPORT

SPST SWITCH

FLAP LIMIT UP

FLAP LIMIT DOWN 23

SPST SWITCH

TB273

FLAP POWER IN

ABSOLUTE POSITION 1 18

FLAP POWER OUT 1 7

14 Vdc

FLAP POWER GROUND

CONFIGURED FOR

ABSOLUTE POSITION

ABSOLUTE POSITION 2

ABSOLUTE POSITION 3

ABSOLUTE POSITION 4

FLAP MOTOR

(14V, <10A)

FLAP POWER OUT 2

FLAP UP

FLAP PARTIAL 1

FLAP PARTIAL 2

FLAP DOWN
