190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 24-50

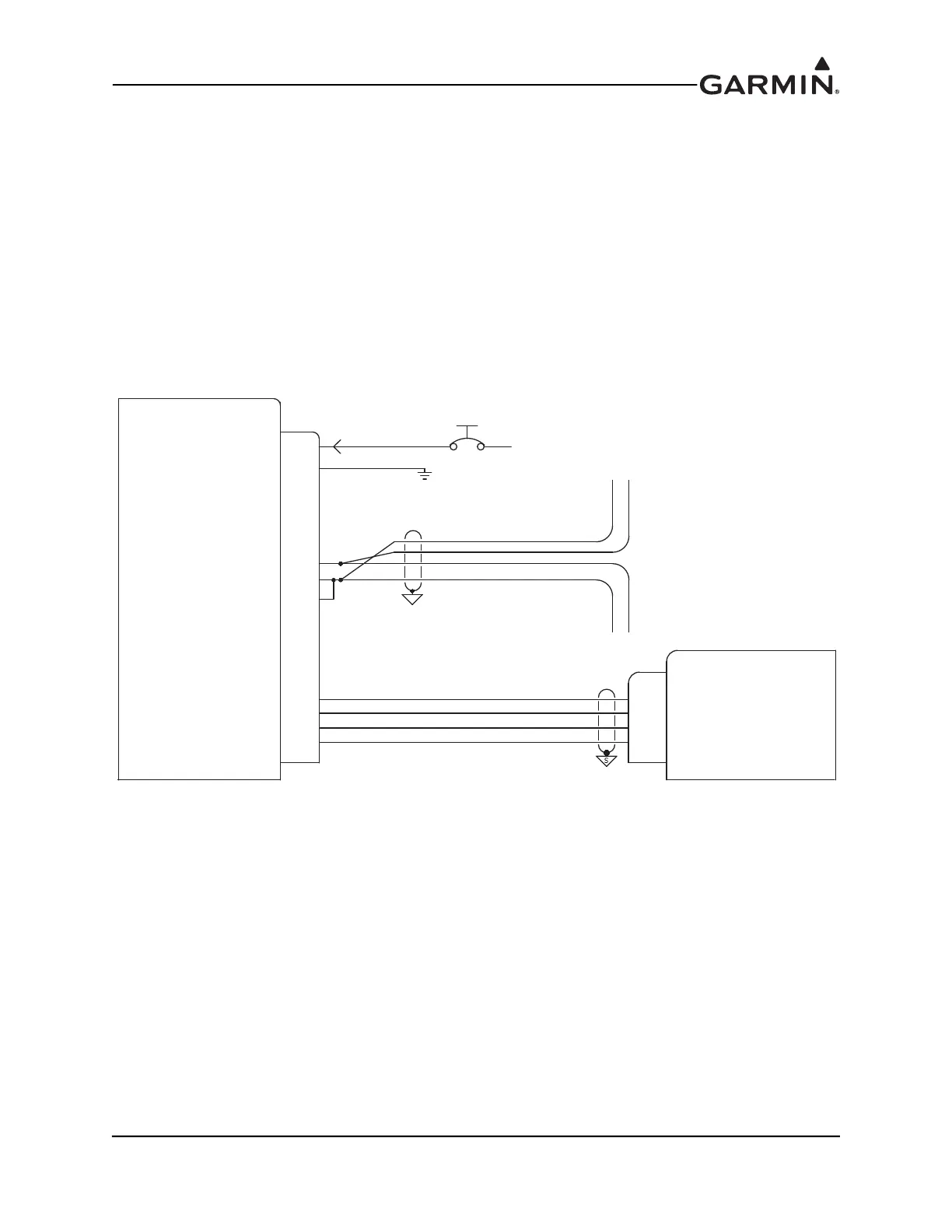

Figure 24-2.30 GHA 15 Interconnect Example

GHA 15

J2001

POWER GROUND

AIRCRAFT POWER

# 22

GHA 15

CAN BUS LO

CAN BUS HI

USB VBUS

USBO DM

USBO DP 9

TO 14/28 VDC AIRCRAFT POWER

# 22

USB TYPE B RECEPTACLE

(OPTIONAL)

D-

GND

PWR

D+

SIGNAL GROUND

GRN

WHT

RED

BLK

CAN BUS TERM* 18
