190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 25-4

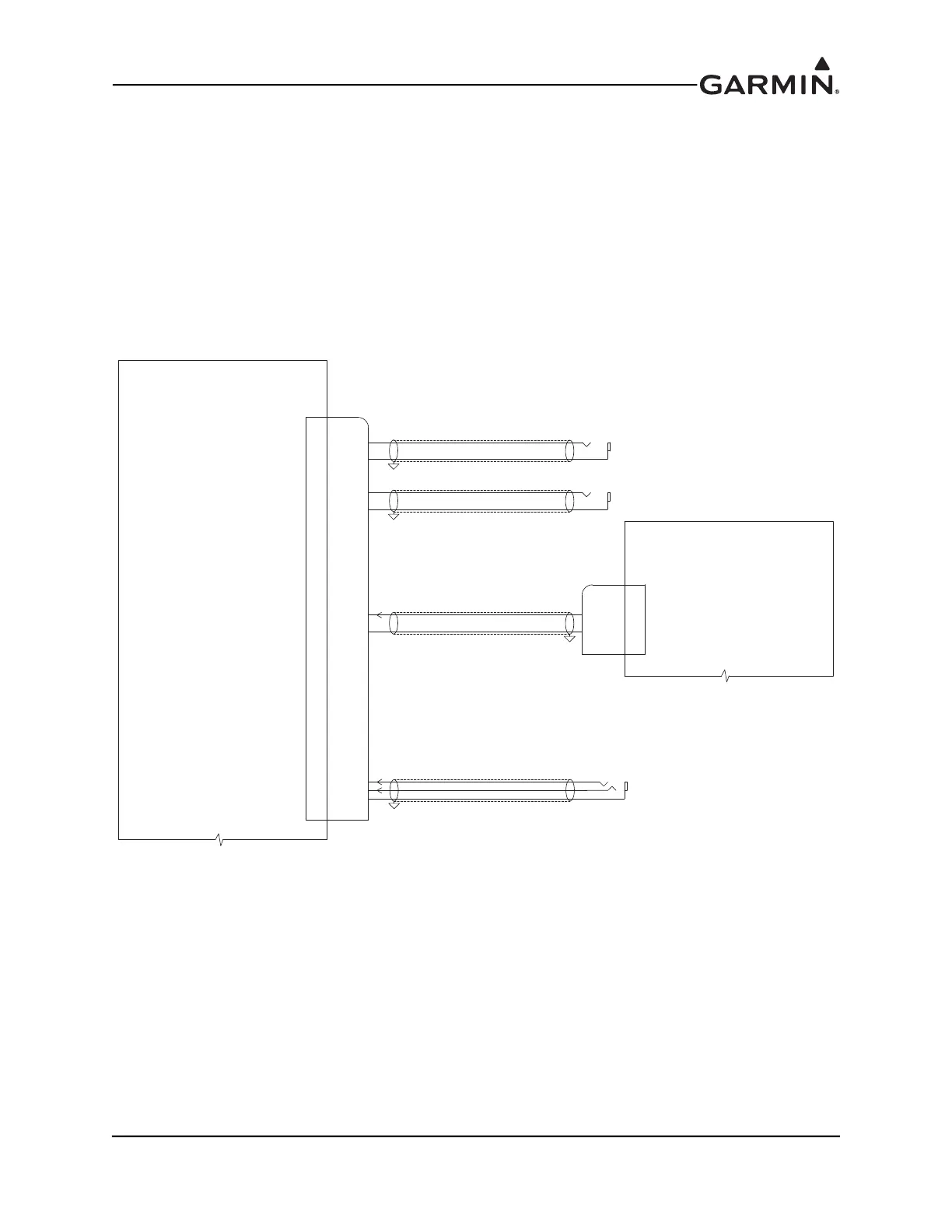

Figure 25-2.2 GTR 20/Mono Audio Source Interconnect Drawing
PILOT HEADSET LEFT
PILOT HEADSET RIGHT
PILOT HEADSET LO
COPILOT HEADSET LEFT
COPILOT HEADSET RIGHT
COPILOT HEADSET LO
12
11
30
MUSIC 1 IN LEFT
MUSIC 1 IN RIGHT
MUSIC 1 IN LO
19
18
37
P2001
GARMIN
J2001
GTR 20
14
13
33
NC
PILOT HEADSET JACK
NOTE 5 NOTE 14
s
NC
COPILOT HEADSET JACK
NOTE 5 NOTE 14
MONO CONNECTIONS
MUSIC 1 IN LEFT
MUSIC 1 IN RIGHT
MUSIC 1 IN LO
19
18
37
MONO AUDIO OUT HI
MONO AUDIO SOURCE
NC
MONO AUDIO OUT LO
MUSIC INPUT USING REMOTE MOUNT JACK
NOTE 5
s
s
s
