190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 26-4

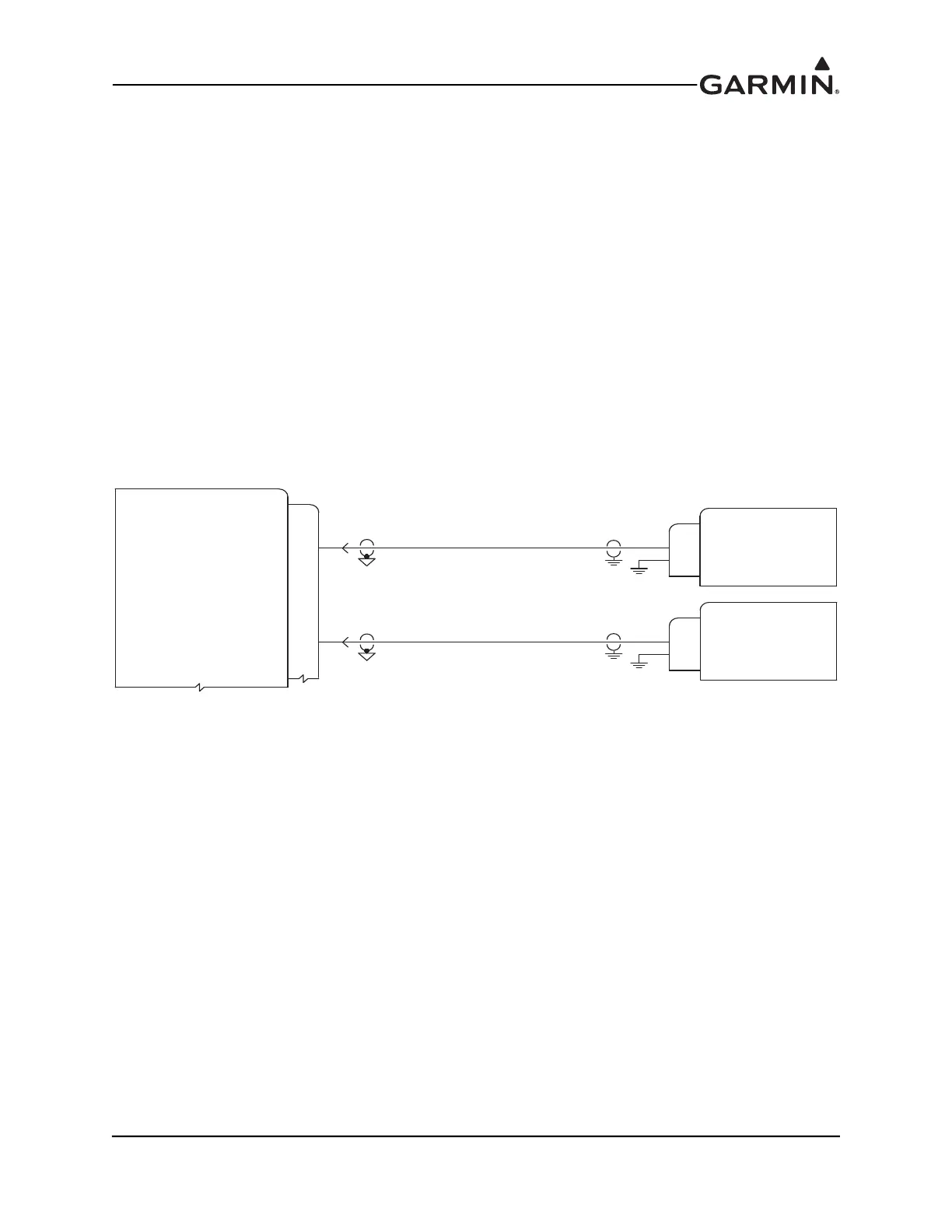

Figure 26-2.1 Page 3 of 3 Fuel Quantity and Fuel Flow Examples (w/GEA 24)
GEA 24
P244
AT TANK MASTER SENDER
OUT HI
OUT LO/GROUND
BLK
GRN
6FUEL QTY 1
CIES CC284022 (0-5Vdt)
AT TANK MASTER SENDER
OUT HI
OUT LO/GROUND
BLK
BLUE
6FUEL QTY 1
CIES CC284022 (DIGITAL)
OR
S
S
NOTE: SEE APPLICABLE CiES DOCUMENTATION FOR MULTIPLE PROBE AND POWER/GROUND WIRING INFO.
