190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 26-9

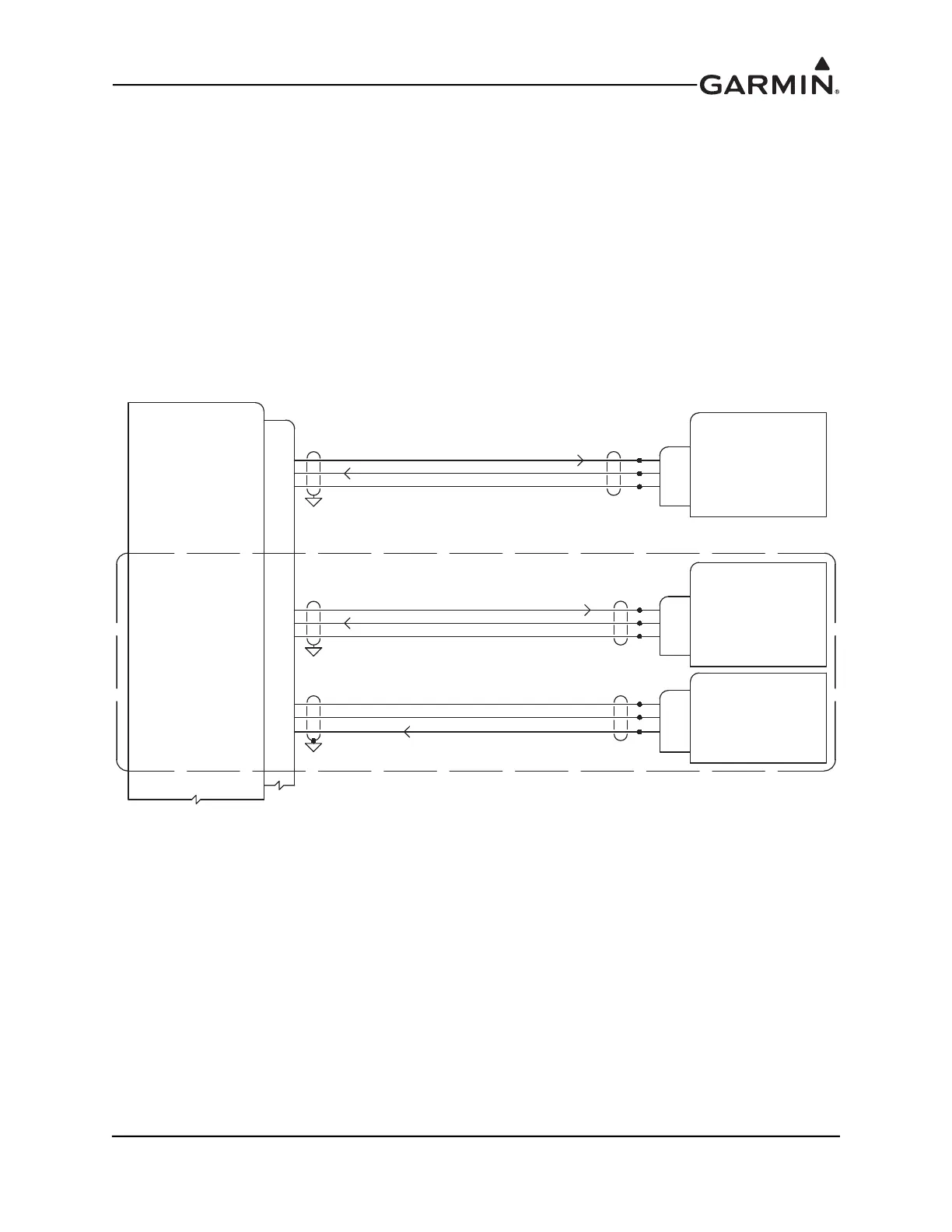

Figure 26-3.1 Page 2 of 2 Fuel Quantity and Fuel Flow Examples (w/GSU 73)
GSU 73
J732
XX
38
FUEL FLOW TRANSDUCER
OUT LO/GROUND
OUT HI
+12V TRANSDUCER POWER 55 EXCITATION INPUT
S
EI FT-60 (RED CUBE) OR
FLOSCAN 201B-6
RED
WHT
BLK
XDCR PWR OUT LO (GND)
CAP FUEL 2 / FUEL FLOW 2
XX OUT LO/GROUND
EXCITATION
OUT HI
FUEL QUANTITY
+5V TRANSDUCER POWER 75
38
S
BLK
WHT
RED
P-300C
OR
XDCR PWR OUT LO (GND)
CAP FUEL 2 / FUEL FLOW 2
XX
19
FUEL FLOW TRANSDUCER
OUT LO/GROUND
OUT HI
+12V TRANSDUCER POWER 55 EXCITATION INPUT
S
EI FT-60 (RED CUBE) OR
FLOSCAN 201B-6
RED
WHT
BLK
XDCR PWR OUT LO (GND)
FUEL FLOW 1
SEE NOTE 10
