190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 27-5

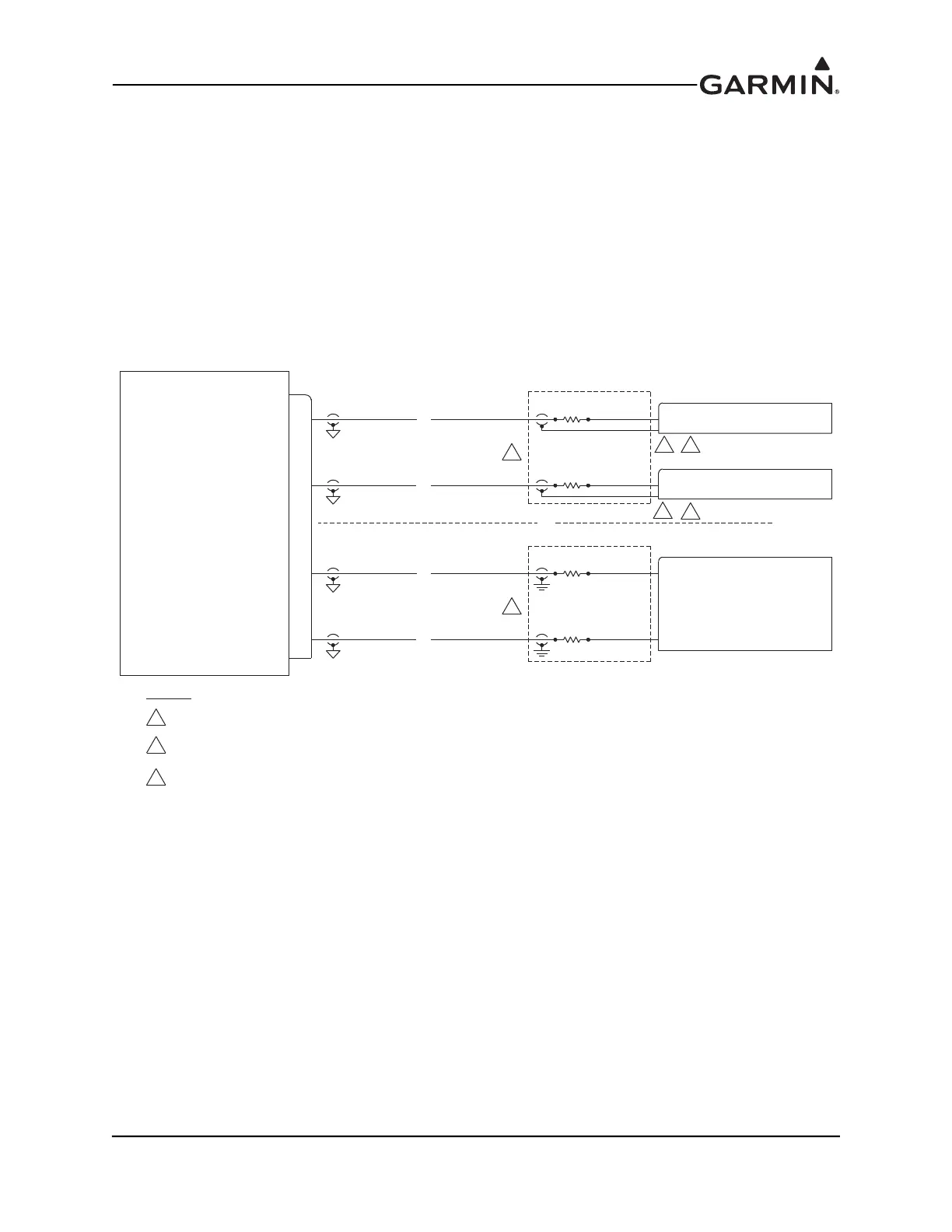

Figure 27-4 GEA 24 - Lycoming P-Lead Resistor Wiring Example
P243
GEA 24
8RPM 1
LH MAGNETO
SG
OUT HI (P-LEAD)
400K OHM (±10%)
6RPM 2
RH MAGNETO
SG
OUT HI (P-LEAD)
400K OHM (±10%)
1
SEE P-LEAD RESISTOR INSTALLATION FIGURE FOR DETAILED INSTALLATION OF RESISTOR.
1
22
22
2
CONNECT WIRE SHIELD TO THE GROUND STUD ON THE MAGNETO.
2
2
OR
8RPM 1
IGNITION SWITCH
SG
LH IGNITION
400K OHM (±10%)
6RPM 2
SG
400K OHM (±10%)
1
22
22 RH IGNITION
NOTES
3
ONLY A MOD LEVEL 2 GEA 24 CAN BE CONNECTED TO A P-LEAD. DO NOT CONNECT MOD LEVEL 1 OR MOD LEVEL 0
UNITS TO A P-LEAD. THE MOD LEVEL STATUS CAN BE DETERMINED BY CHECKING THE SERIAL TAG ON THE UNIT.
3
3
