190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 28-3

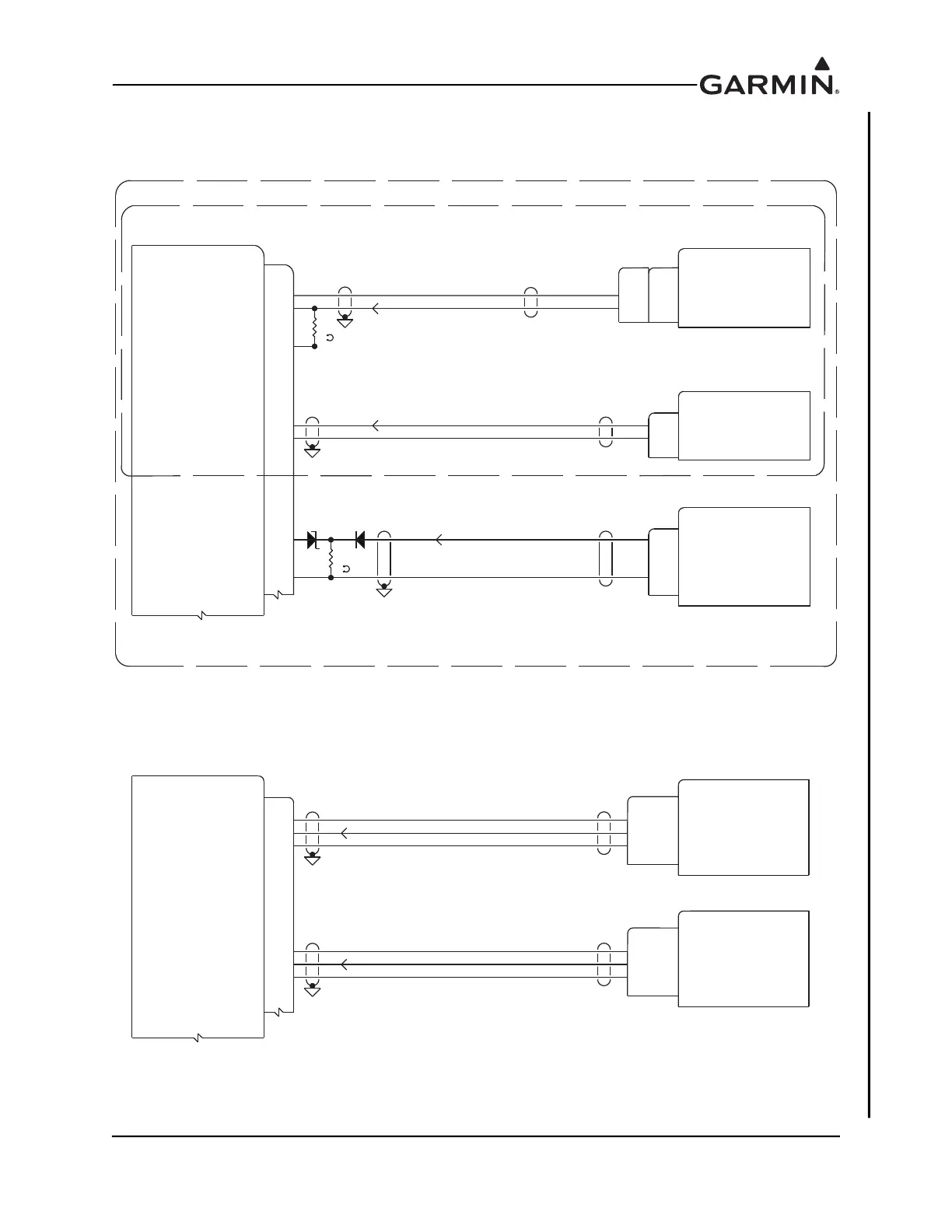

Figure 28-2.1 GEA 24 - Rotax 912/914/916 Sensor Wiring Examples, Page 2 of 2
RPM XDCR GND_1 7
ROTAX TRIGGER COIL
RPM 1 8
S
OUT LO/GROUND
OUT HI
OIL PRESS GND 16
OIL PRESSURE SENSOR
OIL PRESS HI 17 OUTPUT
ROTAX P/N 956413
OIL PRESS GND
OIL PRESS HI
16
17
GROUND
OUTPUT
OIL PRESS SENSOR
ROTAX P/N 956415
+ EXCITATIONA
B
OR
OIL PRESS XDCR +12V
S
GRN OR WHT
GEA 24
P243
NOTE 8
NOTE 6
18
RED
300
1%,¼W
NOTE 12
S
40
1%,¼W
OR ROTAX P/N 456180
B
C
956413 456180
4-20 mA
FUEL PRESS LO
FUEL PRESS
1
2
FUEL PRESS SENSOR
S
FUEL PRESS XDCR +12V 3
GEA 24
P243
UMA 1EU70D
(912iS/915iS/916iS)
GROUND
OUTPUT
VOLTAGE IN
FUEL PRESS LO
FUEL PRESS
1
2
FUEL PRESS SENSOR
S
FUEL PRESS XDCR +12V 3
UMA 1EU07D (914)
GROUND
OUTPUT
VOLTAGE INORN/WHT
WHT
BLU/WHT
DIFFERENTIAL FUEL PRESSURE SENSOR
FOR ROTAX 912iS/915iS/916iS INSTALLATIONS
0-70 PSID, 0.2 - 4.54 VDC OUTPUT
DIFFERENTIAL FUEL PRESSURE SENSOR
FOR ROTAX 914 INSTALLATIONS
0-7 PSID, 0.2 - 4.54 VDC OUTPUT
ORN/WHT
WHT
BLU/WHT
NOTE: REFER TO SENSOR MFR DOCUMENTATION
TO CONFIRM WIRE COLORS
USE ROTAX HOSE NIPPLE 840670 (M6 THREAD)
AND SEALING RING 230415 TO CONNECT VENT SIDE
OF SENSOR TO ENGINE AIRBOX
