190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 30-28

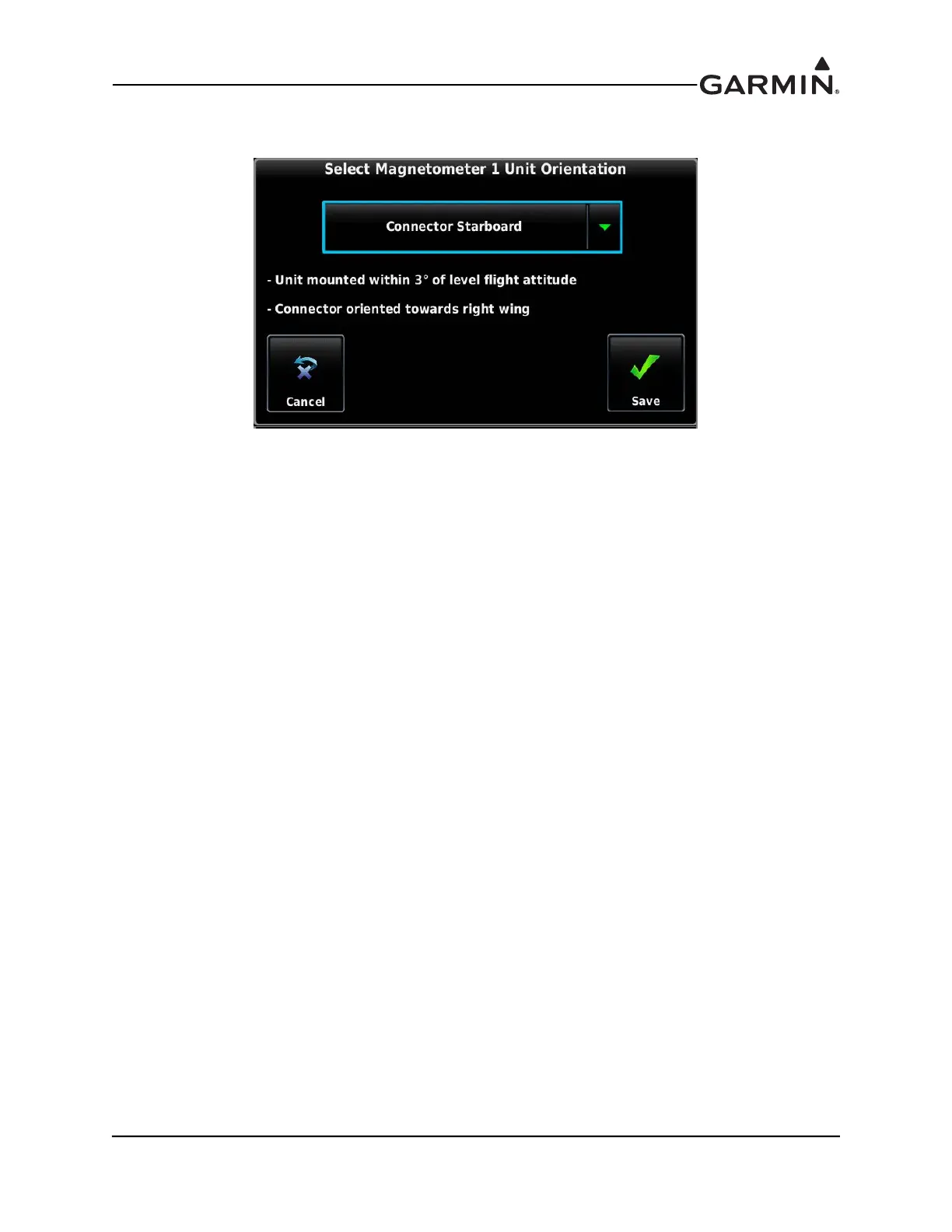

6. Read the description of the selected orientation to make sure the proper orientation has been

selected, then press the Save button to store the orientation.
