Caution Alert AOA Calibration
This procedure sets the AOA value for the bottom of the yellow "chevron" section of the AOA gauge
(Figure 30-11), which is also the AOA value at which the audible stall warning sound will begin to
intermittently play, dependent upon configuration (see AOA Alert Mode, Section 30.4.20
). Perform this
calibration while flying the aircraft at an AOA below the aircraft's stall AOA (1.1 x stall speed is
suggested).

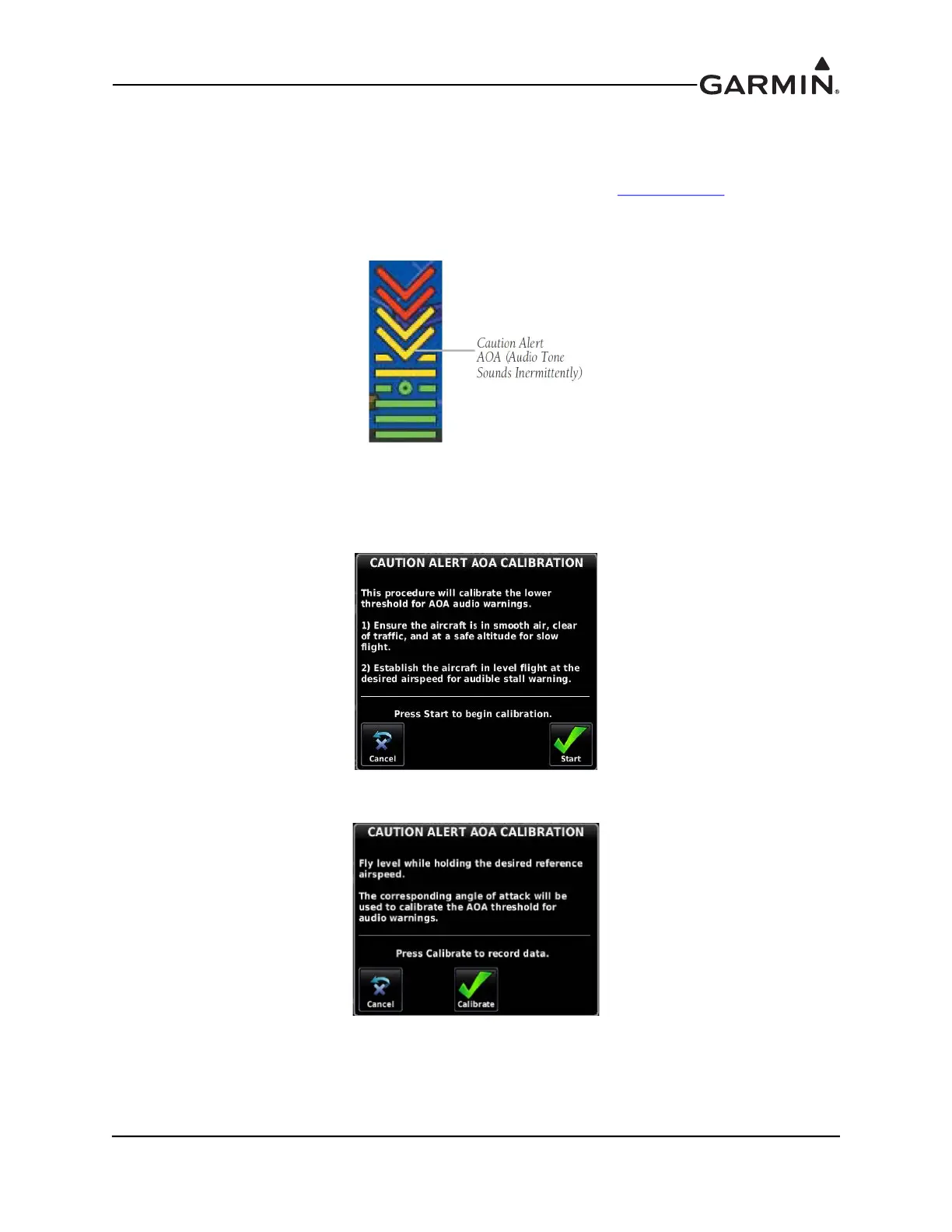

Figure 30-11 Caution Alert AOA
1. If dual curve AOA calibration is available, ensure the appropriate Flaps Up Calibration tab is
highlighted. Select the Caution Alert AOA Calibration field, then press the Calibrate button
.
2. Follow the onscreen instructions, then press the Start button to begin the calibration.
3. Press the Calibrate button when in compliance with the onscreen instructions.
