190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 30-73

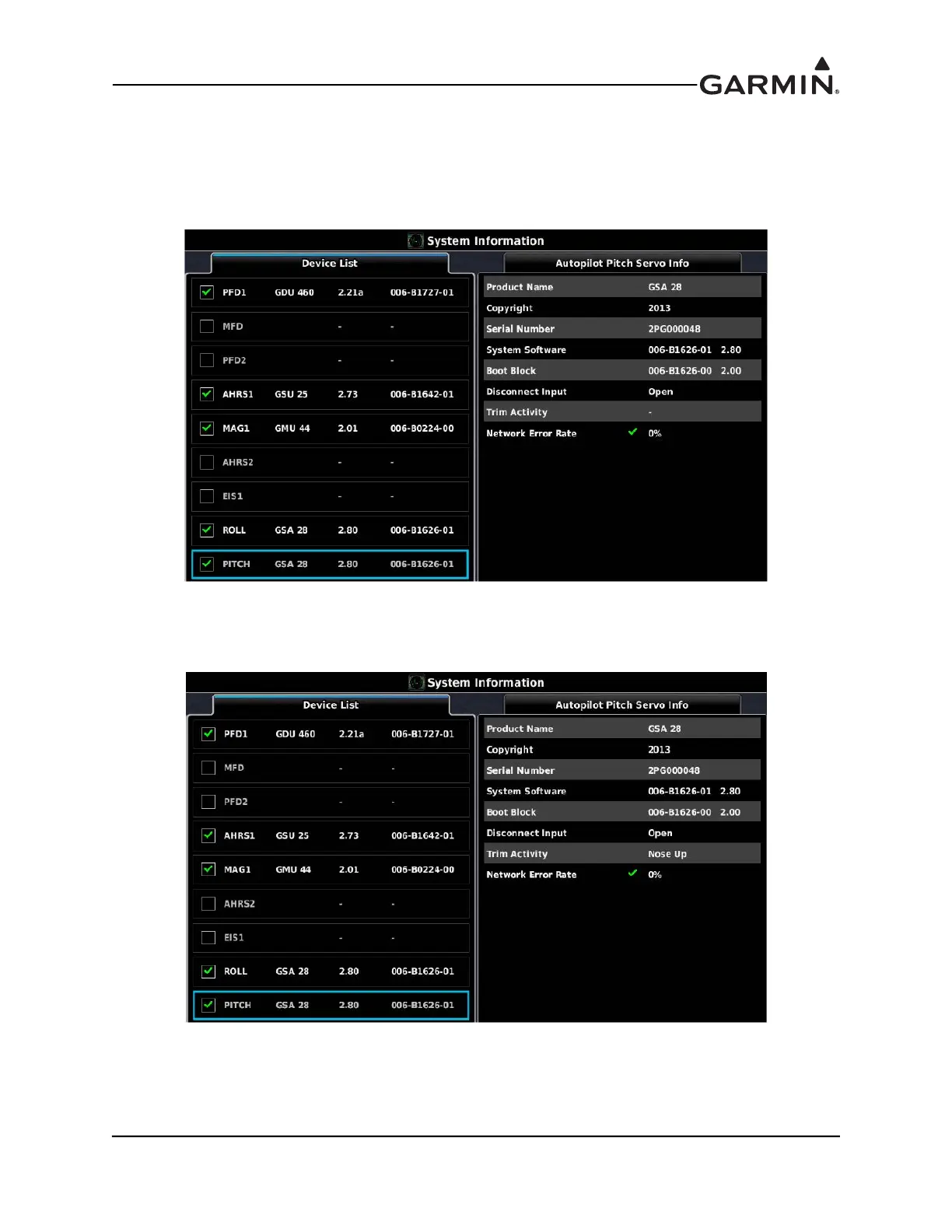

7. Go to the System Information page in configuration mode and verify the correct Trim Activity is
displayed if the Pitch servo is connected to an auxiliary trim motor.
a) Center the elevator trim switch to input no Trim command. Verify the elevator trim switch is
not moving. Verify that Trim Activity for the Pitch servo is properly displaying “-” for no
activity.
b) Use the elevator trim switch to input a nose up Trim command. Verify the elevator trim
switch properly moves for nose up trim. Verify the Trim Activity for the Pitch servo is
properly indicating “Nose Up”.
