190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 3-5

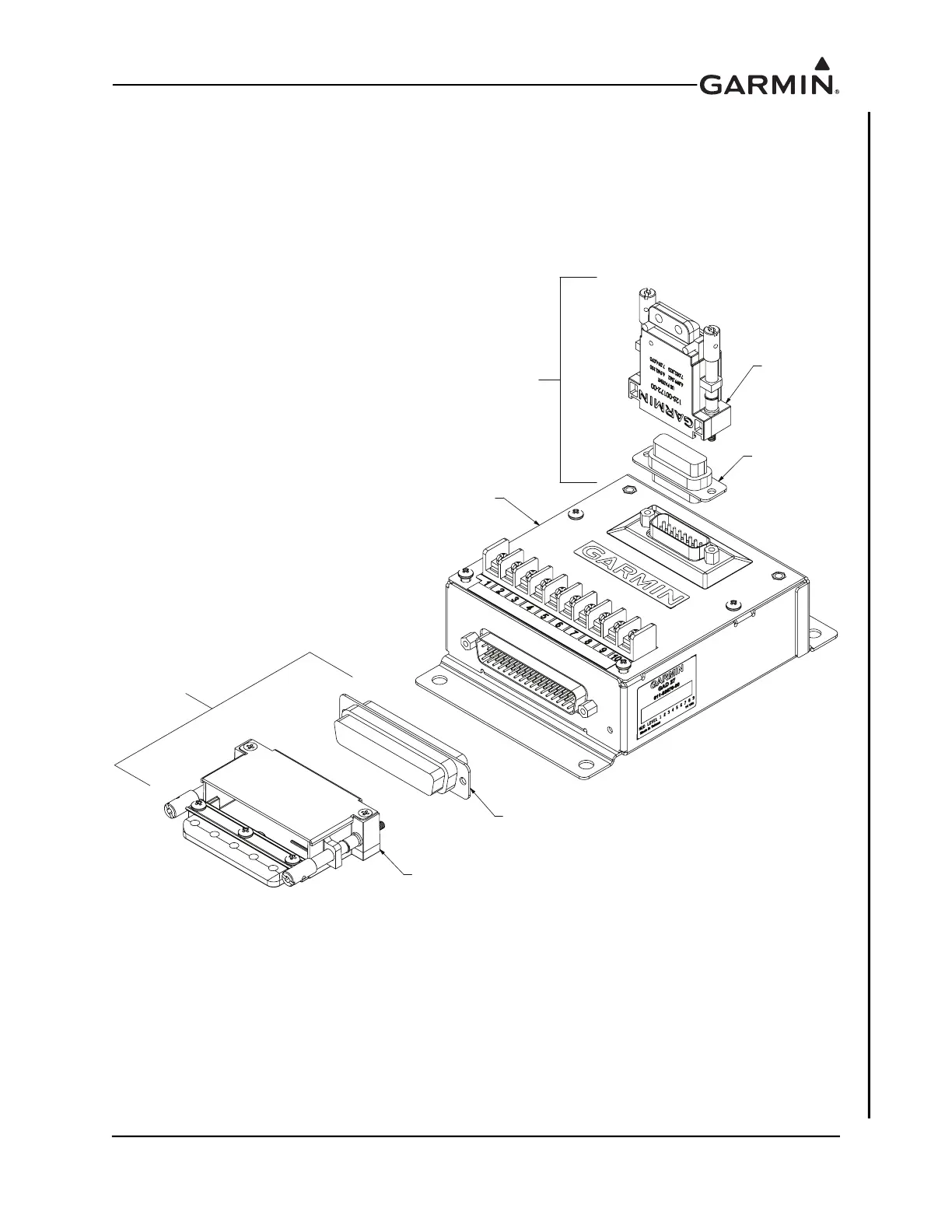

Figure 3-3 GAD 27 Installation Drawing

GAD 27

CONNECTOR KIT

011-03877-00

GAD 27

CONNECTOR KIT

011-03877-00

P272

J272

TB273

J271

P271

011-01855-01

330-00625-15

330-00625-50

011-01855-04

GAD 27

011-03876-X0
