190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page B-18

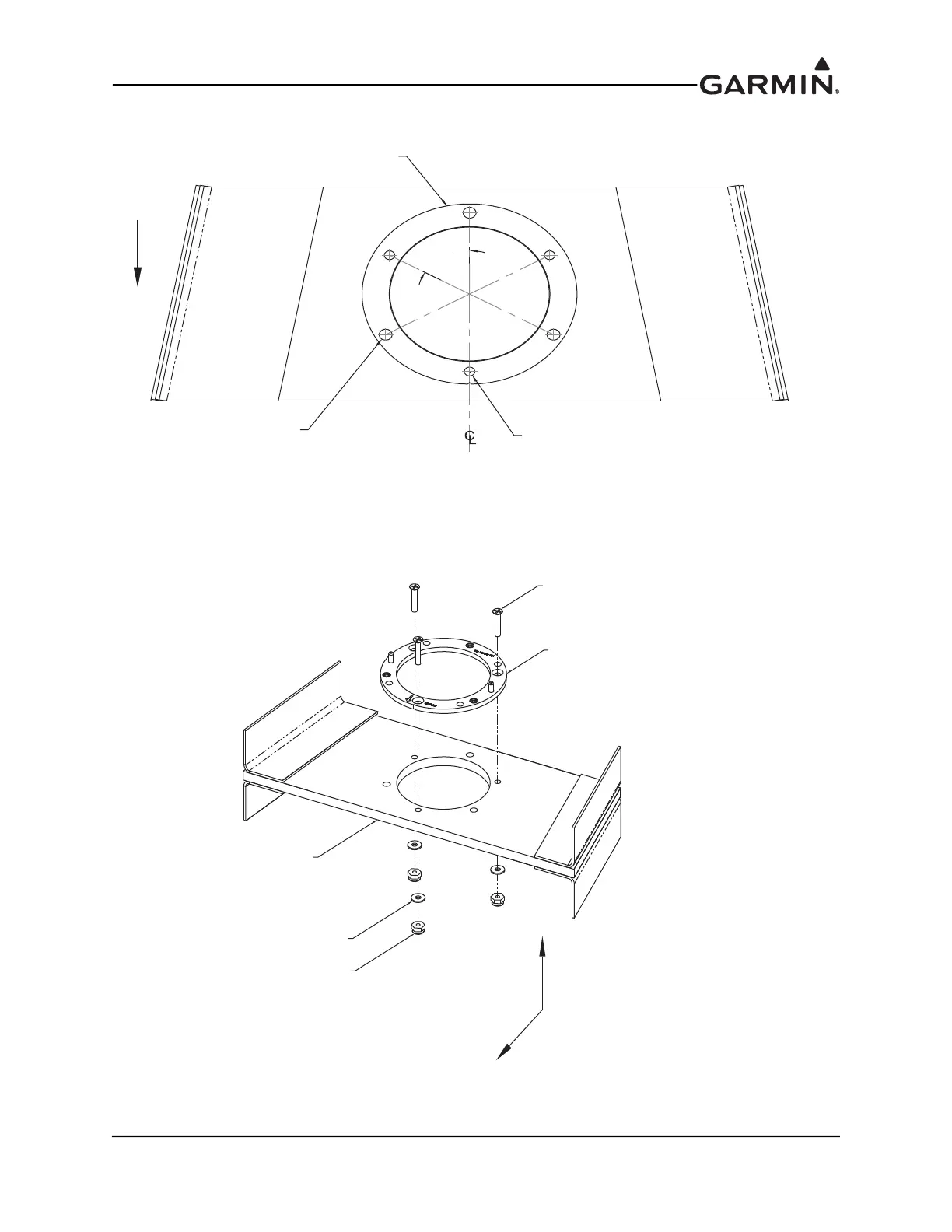

Figure B-26 Magnetometer Shelf With Hole Pattern For GMU 22 Installation Rack
7. Assemble the GMU 22 Installation Rack to the magnetometer shelf as shown in Figure B-27.
Figure B-27 Assembly Of GMU 22 Installation Rack To Magnetometer Shelf
60°
TYP
MARK LOCATION
Ø0.203
3 PLACES
MATCH DRILL Ø0.164
3 PLACES
FWD
115-00481-X0
GMU 22 INSTALLATION RACK
MAGNETOMETER SHELF (REF)
3X 6-32 STAINLESS SCREWS, 100° COUNTERSUNK
(MS24693C OR EQUIVALENT)
3X AN960C6 WASHERS
3X 6-32 STAINLESS NUTS
(MS21083C06 OR EQUIVALENT)
115-00481-X0 GMU 22
INSTALLATION RACK
UP
FWD
