Rev. AV Page E-12

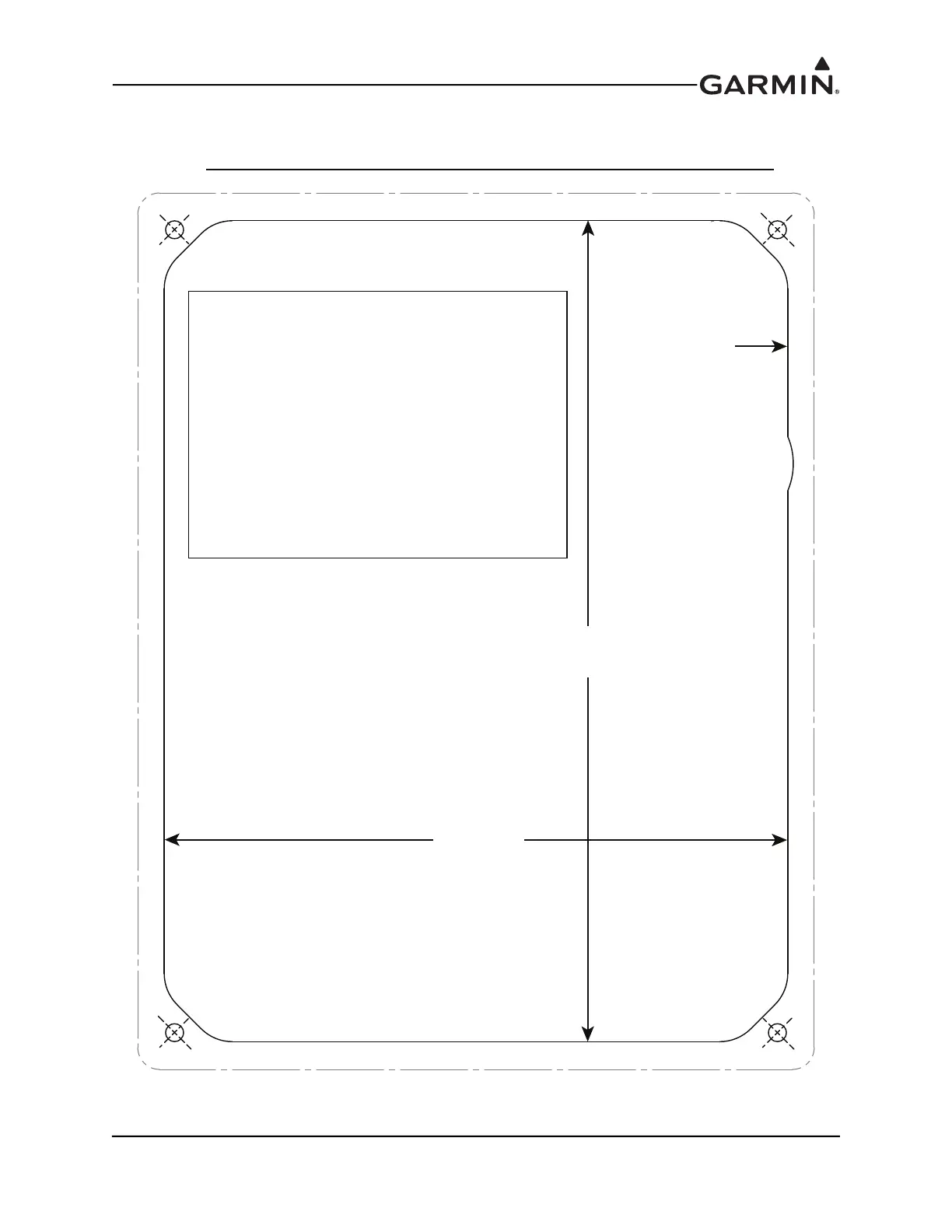

GDU 37X PANEL CUTOUT TEMPLATE
5.57 in
[141.4 mm]
7.33 in
[186.2 mm]
Cut out panel
to inside line
For corner holes, center punch and drill
(#36) / tap (6/32) to create threaded holes
OR
drill out with 25 drill bit and use Garmin
nut-plate P/N 115-01054-00
IMPORTANT!
Make sure the Page Scaling
setting is set to NONE when
printing this page. Verify
dimensions of printed template
are accurate before cutting
panel.
