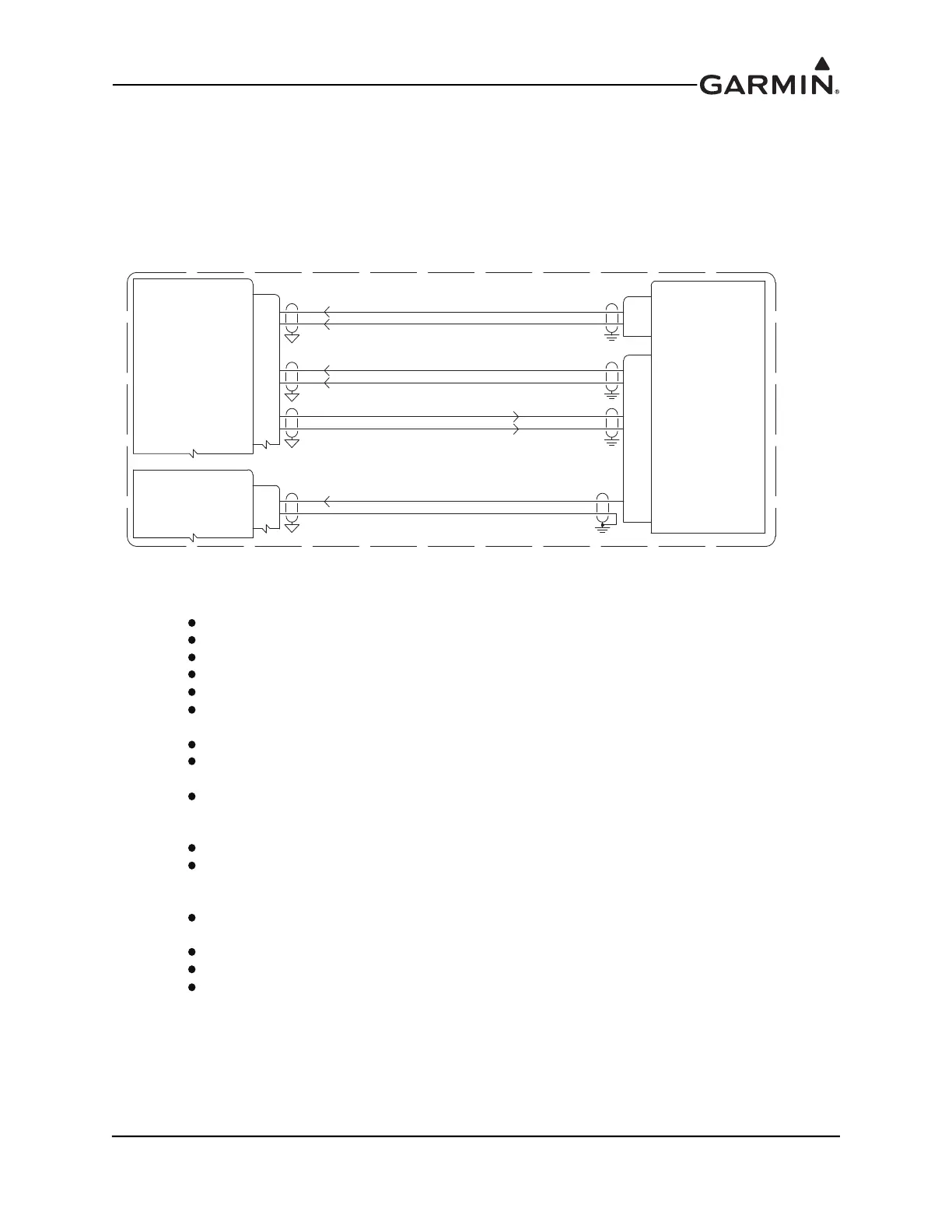

Rev. AV Page G-8
49
48
GSU 73
A429 OUT 1A (AIR DATA) 20
A429 OUT 1B (AIR DATA) 21
WHT
BLU
P731
GPS/NAV/COM
GNS 430(W)/530(W)
S
47
ARINC 429 OUT A46
WHT
BLU
ARINC 429 IN 1A (GPS) 25
ARINC 429 IN 1B (GPS) 26
WHT
BLU
S
23
24
WHT
BLU
ARINC 429 IN 2A (NAV) 27
ARINC 429 IN 2B (NAV) 28
WHT
BLU
S
ARINC 429 OUT B
ARINC 429 IN 1A
ARINC 429 IN 1B
ARINC 429 OUT A
ARINC 429 OUT B
P4001/5001
WHT
BLU
P4006/5006
56
RS-232 OUT
WHT
BLU
GDU 37X
P4602/P3701
RS-232 IN 2 14
SIGNAL GROUND 44
WHT
BLU
S
CONFIGURATION GUIDANCE
1. GNS 430W/530W
A. ON THE MAIN ARINC 429 CONFIG PAGE
SET IN 1 SPEED TO "LOW"
SET IN 1 DATA TO "EFIS/AIR DATA"
SET OUT SPEED TO "LOW"
SET OUT DATA TO "GAMA 429"
SET SDI TO "LNAV 1"
SET VNAV TO "ENABLE LABELS" FOR GNS #1 (WAAS UNITS ONLY)
B. ON THE MAIN RS-232 CONFIG PAGE
SET CHNL 1 INPUT TO "OFF"
SET CHNL 1 OUTPUT TO "MAPMX" (WAAS UNITS ONLY) OR "AVIATION" (NON-WAAS UNITS)
C. ON THE MAIN CDI/OBS CONFIG PAGE
PRESS MENU AND SELECT THE "IGNORE SEL CRS FOR VLOC?" OPTION
NOTE: MENU WILL SAY "ALLOW SEL COURSE FOR VLOC?" WHEN SET CORRECTLY
D. ON THE VOR/LOC/GS ARINC 429 CONFIG PAGE (430(W)/530(W) ONLY)
SET RX AND TX SPEED TO "LOW"
SET SDI TO "VOR/ILS 1"
2. G3X
A. ON THE GDU 46X/37X RS-232 AND ARINC 429 CONFIG MODE PAGES
SET THE CONNECTED GDU 46X/37X (PFD) RS-232 CHANNEL TO "MAPMX" (IF CONNECTED TO
A WAAS UNIT) OR "AVIATION IN" (IF CONNECTED TO A NON-WAAS UNIT)
SET ARINC 429 TX 1 FORMAT TO "EFIS/AIRDATA" AND "NAV 1"
SET ARINC 429 RX 1 FORMAT TO "GARMIN GPS" AND "NAV 1"
SET ARINC 429 RX 2 FORMAT TO "GARMIN VOR/ILS" AND "NAV 1" (430(W)/530(W) ONLY)
SEE NOTE 11
USED ONLY FOR 430(W)/530(W)
MAPMX INTERFACE
NOTE: THIS INTERFACE EXAMPLE DRAWING IS NOT SUFFICIENT FOR INSTALLATION OF A GNS 4XX(W)/5XX(W)
SERIES PRODUCT. PLEASE REFERENCE THE APPROPRIATE INSTALLATION DOCUMENTATION FOR THE
GNS 4XX(W)/5XX(W) UNIT FOR COMPREHENSIVE INSTALLATION AND CONFIGURATION INFORMATION.
