190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page H-8

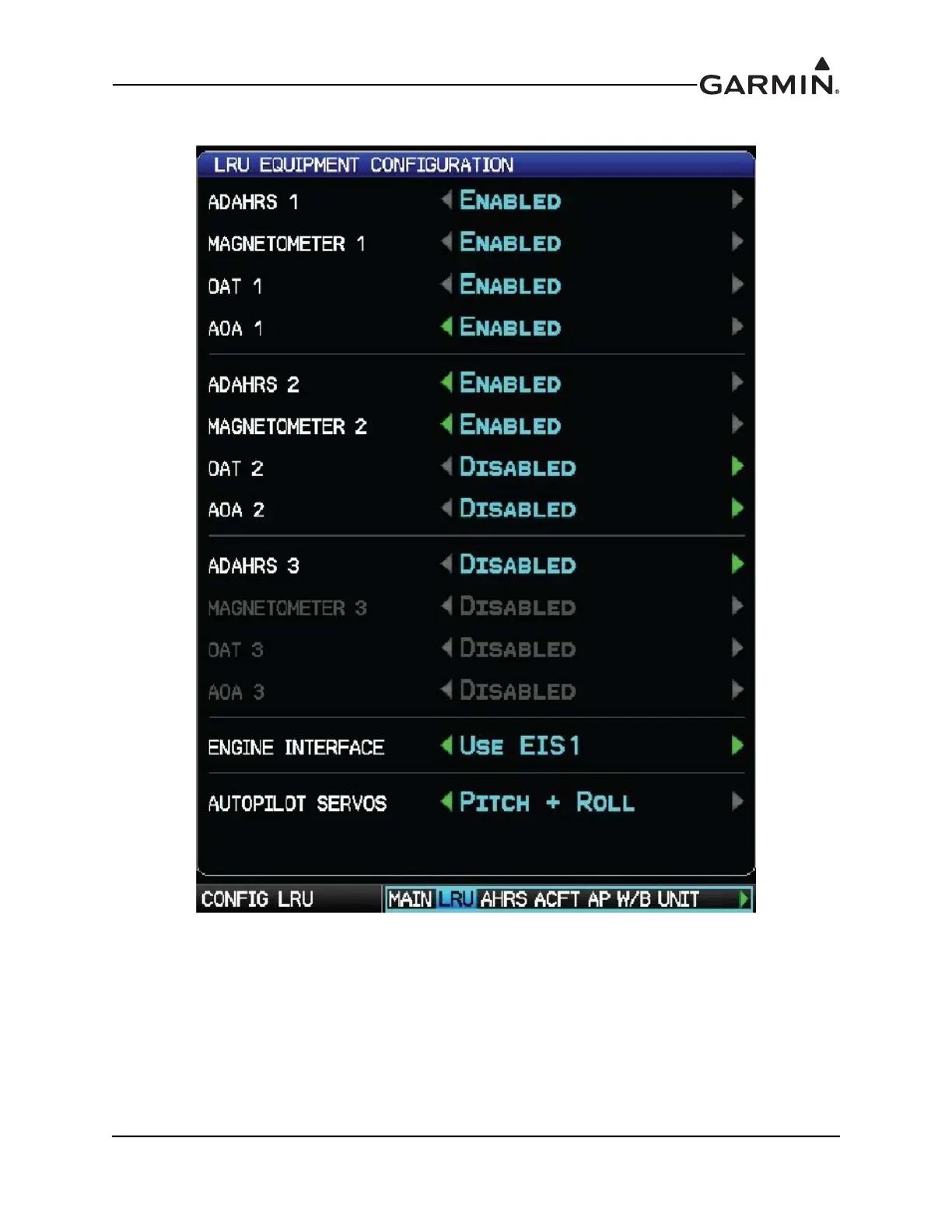

2. Use the FMS Joystick to enable or disable the listed LRUs.
