190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page H-18

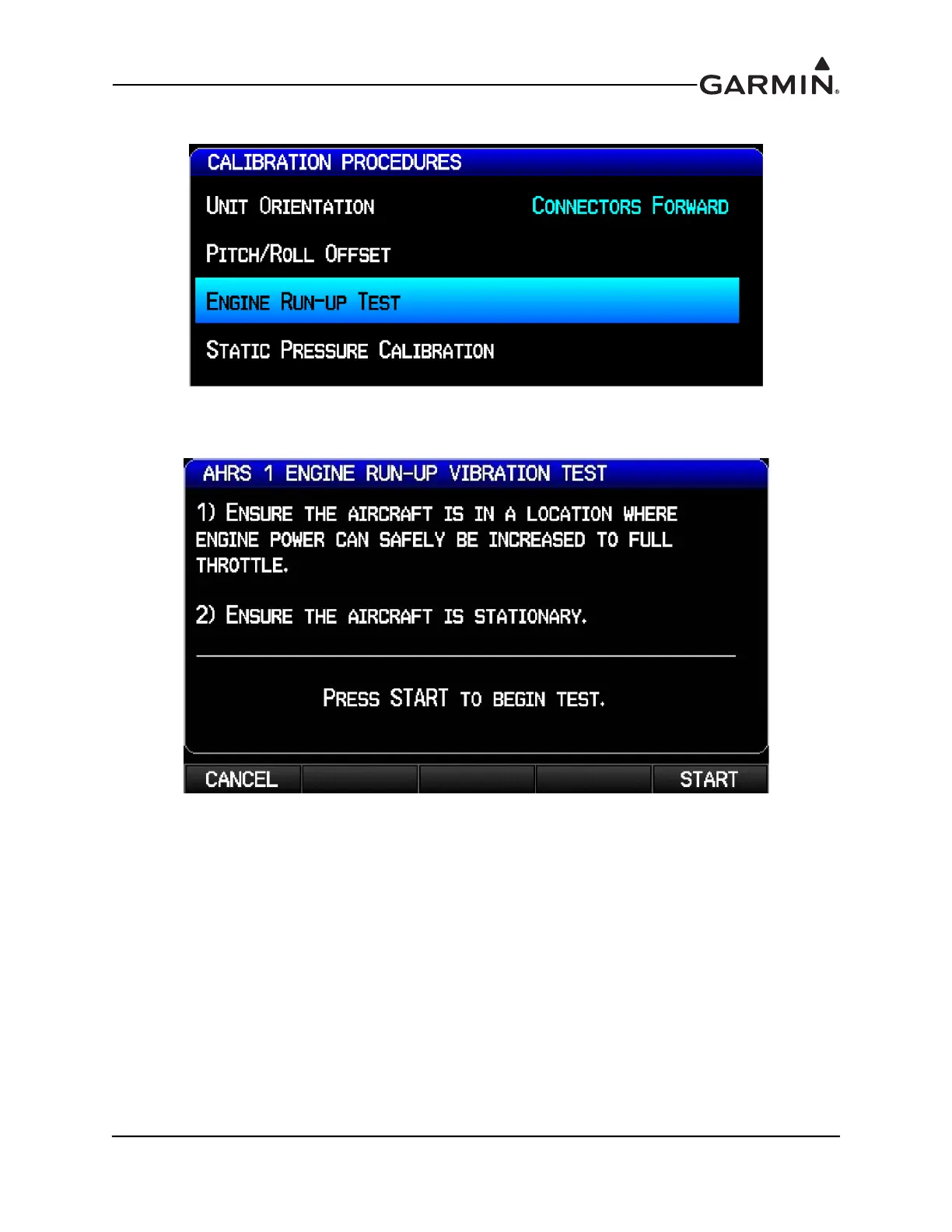

4. Use the FMS Joystick to select ENGINE RUN-UP TEST and press the ENT key.

5. Make sure the aircraft has been properly positioned per the on-screen instructions, then press the

Start softkey to begin the test.
