4. Engage the autopilot in HDG/PIT mode and command a nose down, right bank.
a) With no GMC Mode Controller:
i. Press the HDG/ROLL softkey on the PFD
ii. Press the AP HDG softkey on the PFD
iii. Push the joystick to center the HDG bug
iv. Turn the joystick clockwise to command a right turn
v. Bump the joystick down to command a pitch down
b) With a GMC Mode Controller:
i. Press the AP button on the GMC Mode Controller
ii. Press the HDG button on the GMC Mode Controller
iii. Push the HDG softkey on the PFD
iv. Push the joystick on the PFD to center the HDG bug
v. Turn the joystick on the PFD clockwise to command a right turn
vi. Turn the wheel on the GMC Mode Controller down to command a pitch down
5. Verify the stick properly moves toward the nose and toward the right wing smoothly with no
control system binding.

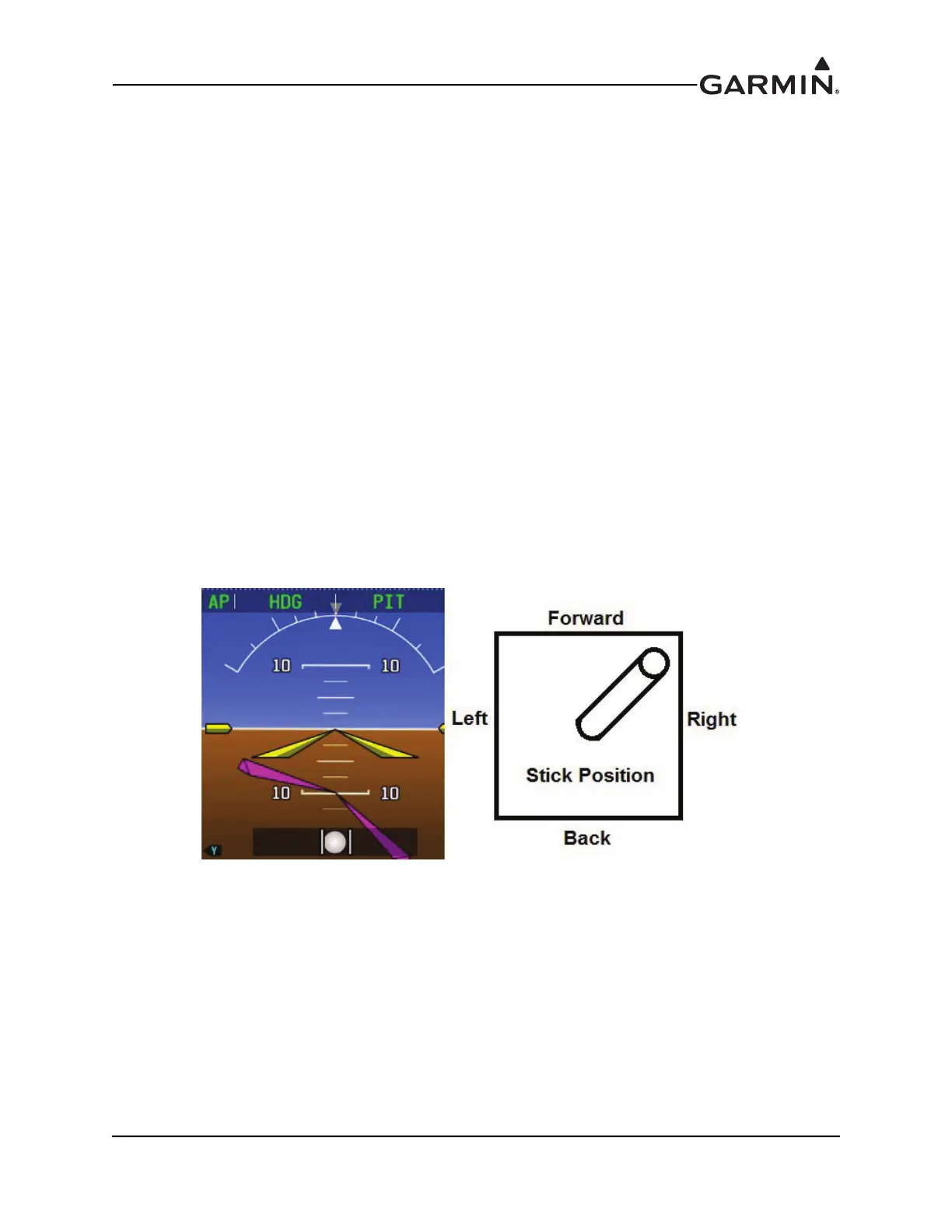

Figure H-12 Stick Position Nose Down, Bank Right
