5.48
139.1
7.30
185.5
4X .29
7.4
4X .29
7.4
4X R.29
7.4

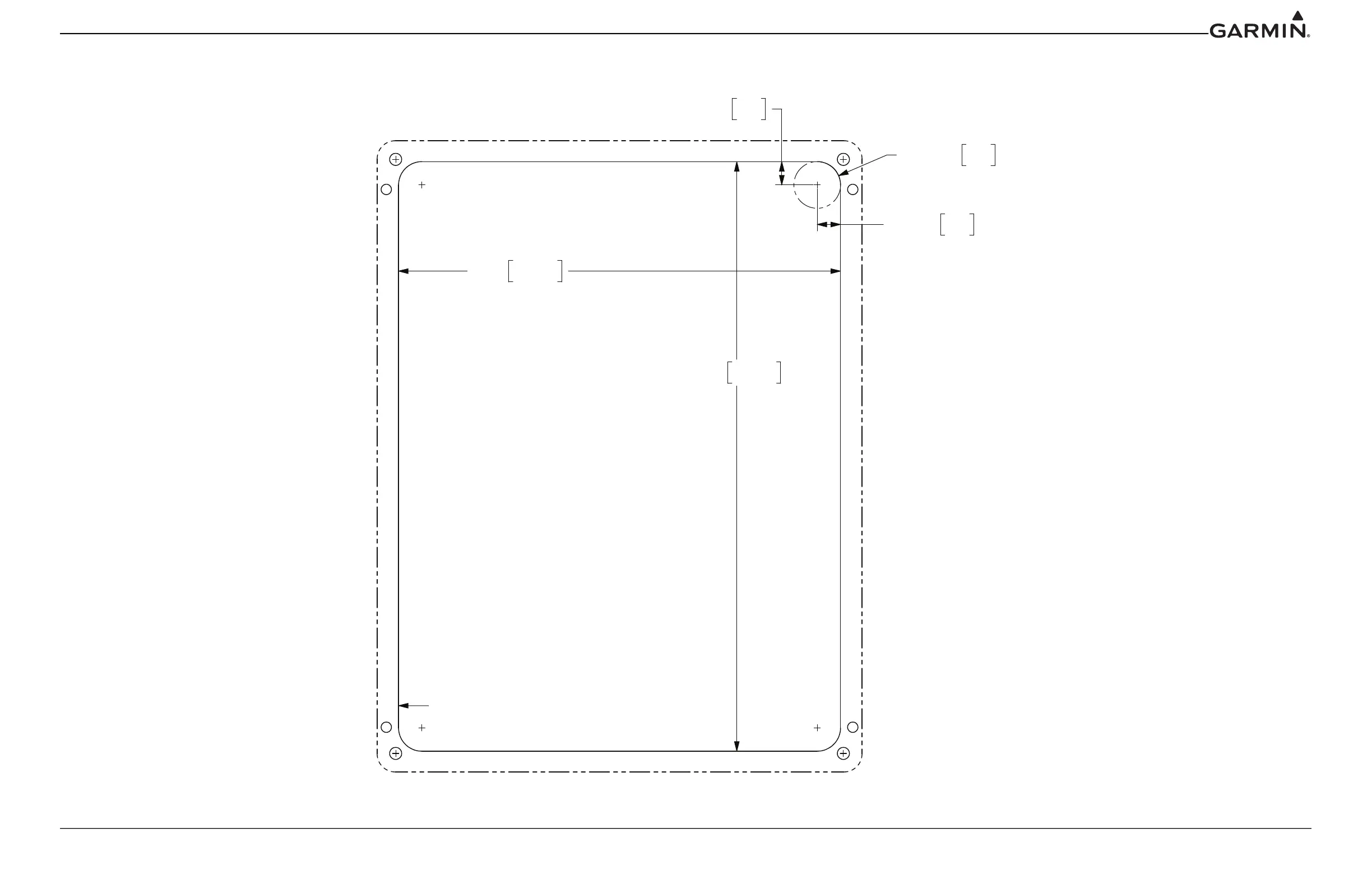

Cut out panel to inside line
IMPORTANT!
Make sure the Page Scaling setting
is set to NONE when printing
this page. Verify dimensions
of printed template are
accurate before cutting panel.
For corner holes, center punch and drill
(#36) / tap (6/32) to create threaded holes
OR
drill out with #25 drill bit and use Garmin
nut-plate P/N 115-01725-03.
The outline in this drawing is identical
to the outline of the actual bezel.
