Job Card TSG A012 - Use of DB9 Adaptors to Reduce Intermittent IDC or ADS Communication Errors
TABLE 2 - IDC DB9 CONNECTIONS

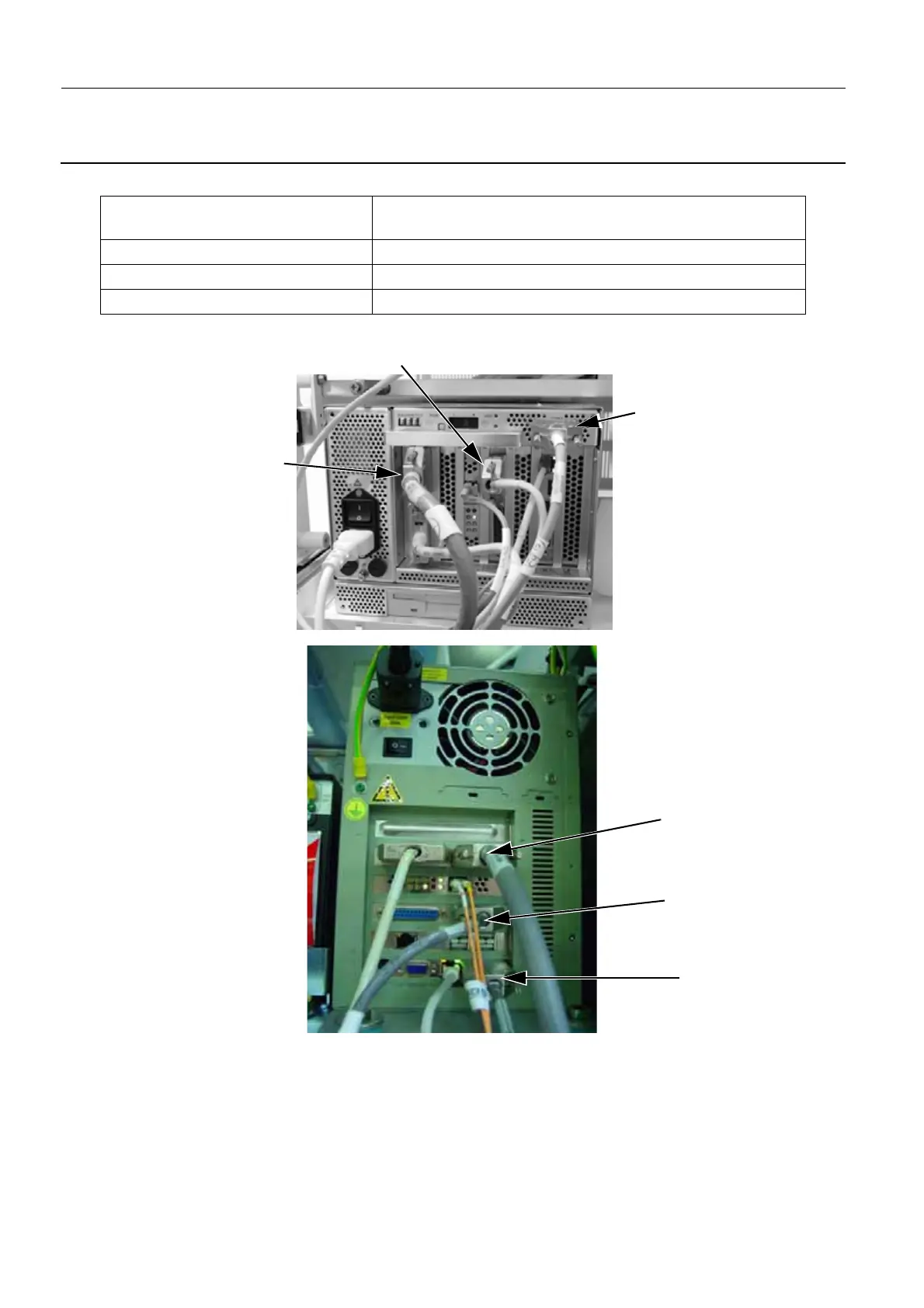

ILLUSTRATION 3 - IDC DB9 CABLE CONNECTIONS
DB9 cable connection reference in
illustration
Cable Label
1 IDC - Gantry Conditioner Link 2226612
2 Detector Power Supply 2226621
3 IDC - Gantry Serial Link RT 2240227 or 2246615
Dione4
1
2
3
1
2
3
Dione5
