GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card TSG A015 - Lift Movement Troubleshooting
Page no. 1053 Chapter 9
JC-TSG-A-015.fm

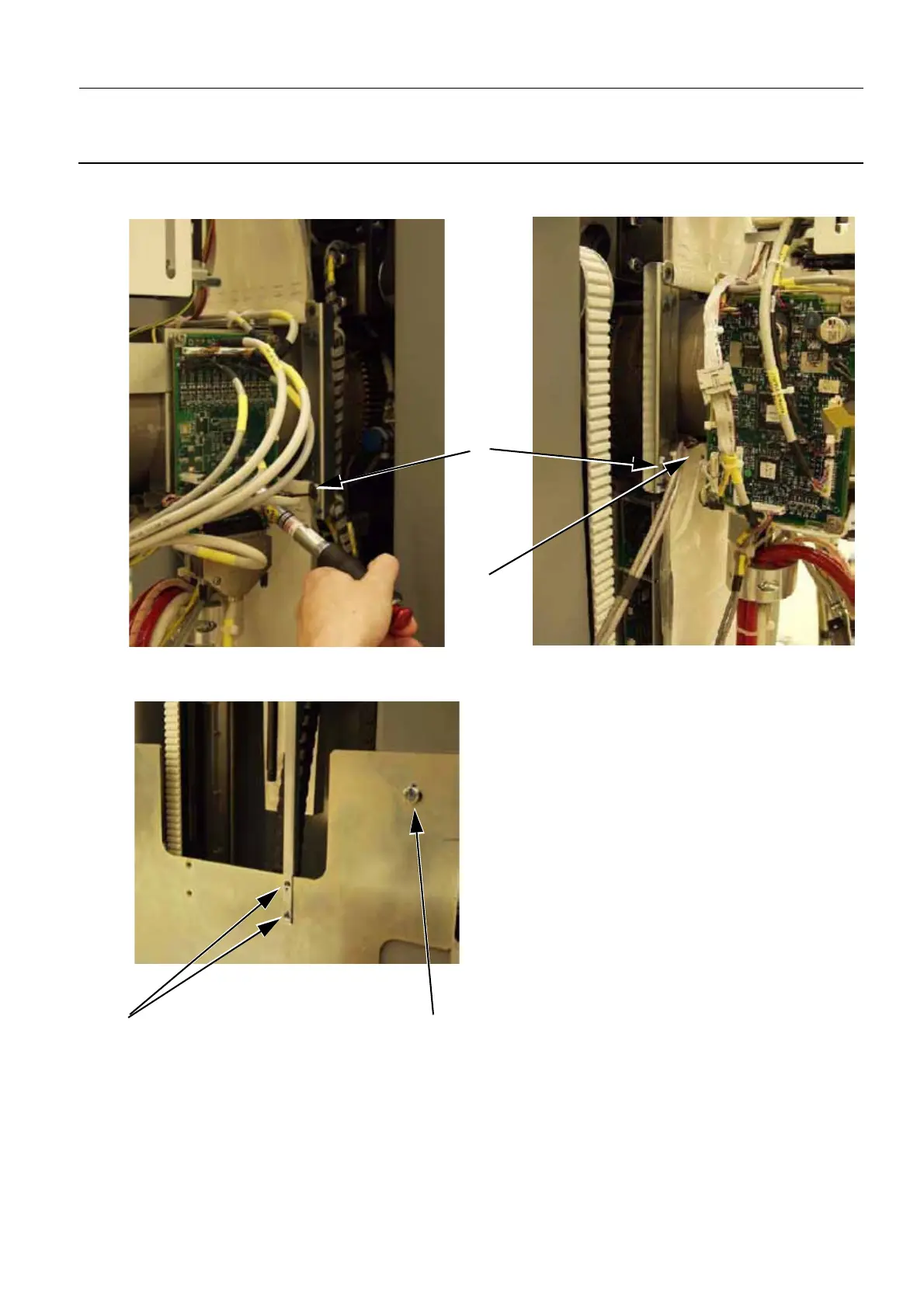

3. Cut the tiewrap fixing the clutch cable to curtain (2).
4. Release and remove the two lower screws securing the lower curtain (3) (3 mm allen wrench).
5. Remove the lower curtain.
6. Release the two lower screws (4) on the lower part of each of the Curtain Ribs (3 mm allen wrench).
7. Release the four nuts (5) securing the lower X plate (17 mm open-ended wrench) and remove the
lower X-Plate by sliding it under the remaining Curtain Ribs.
8. Use the Arm Control buttons to drive the Lift to its lowest position, so that the bottom of the lift rests
2
3
5
4
To Next Page
