Chapter 9 Page no. 1054
JC-TSG-A-015.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card TSG A015 - Lift Movement Troubleshooting

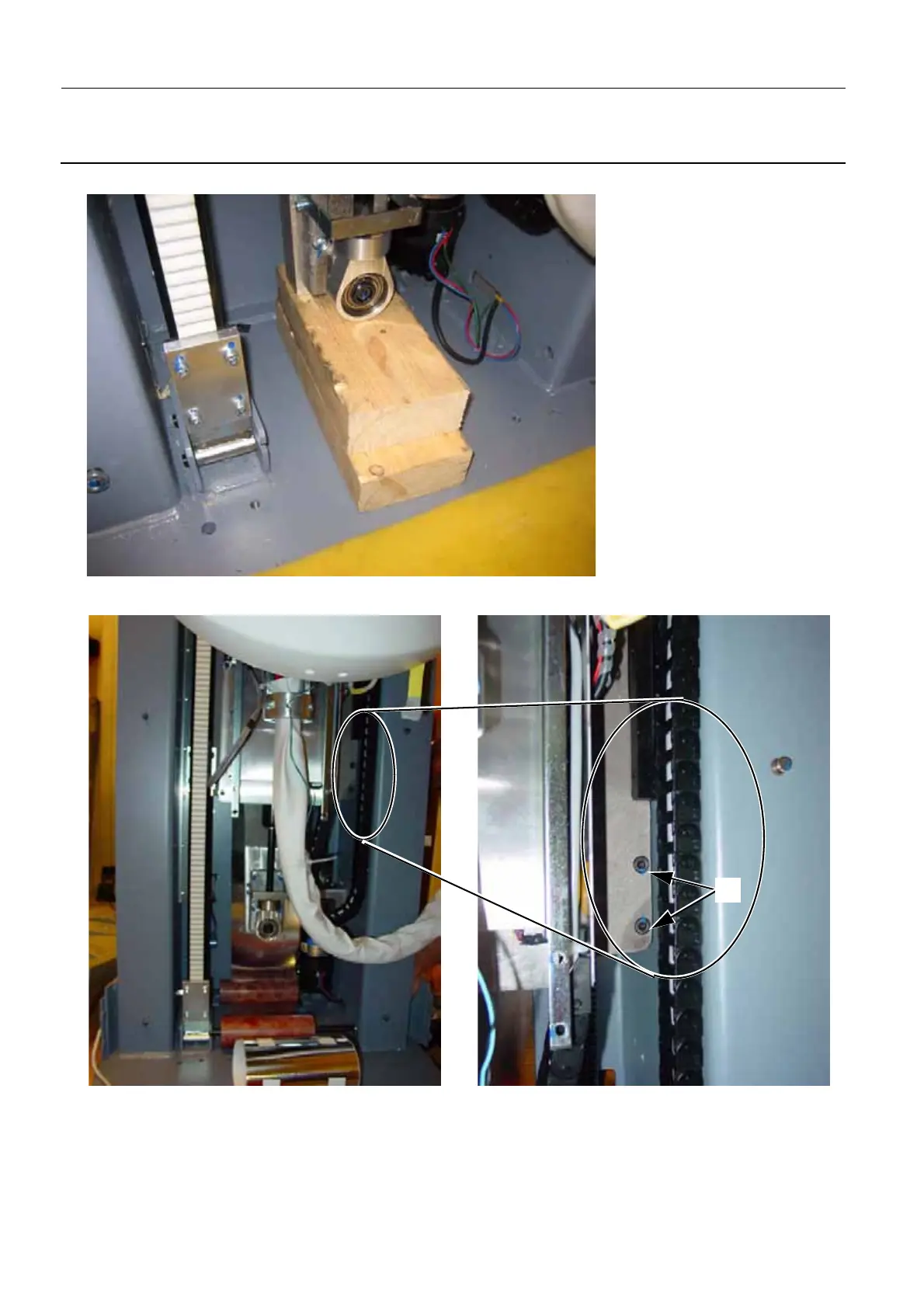

on a wood or plastic block.
The two right hand side fixing screws (6) of the Cardan are visible.
9. Release two right hand side Cardan screws (6) from the Cardan (6 mm socket wrench).
10. Release two left hand side Cardan screws (7) from the Cardan. To access these screws from behind
Note:
The supporting block(s) must have
a total height of between 7.6 cm
(3") and 12.7 cm (5").
The supporting block(s) must be at
least 7.6 cm (3") wide, and 10 cm
(4") to 20 cm (8") long.
One or more blocks can be used,
but the minimum thickness of each
block must be 2.5 cm (1").
6
