GE Senographe DS User Manual

GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card TSG A020 - Generator Power-Up Sequence Flow Charts
Page no. 1077 Chapter 9
JC-TSG-A-020.fm

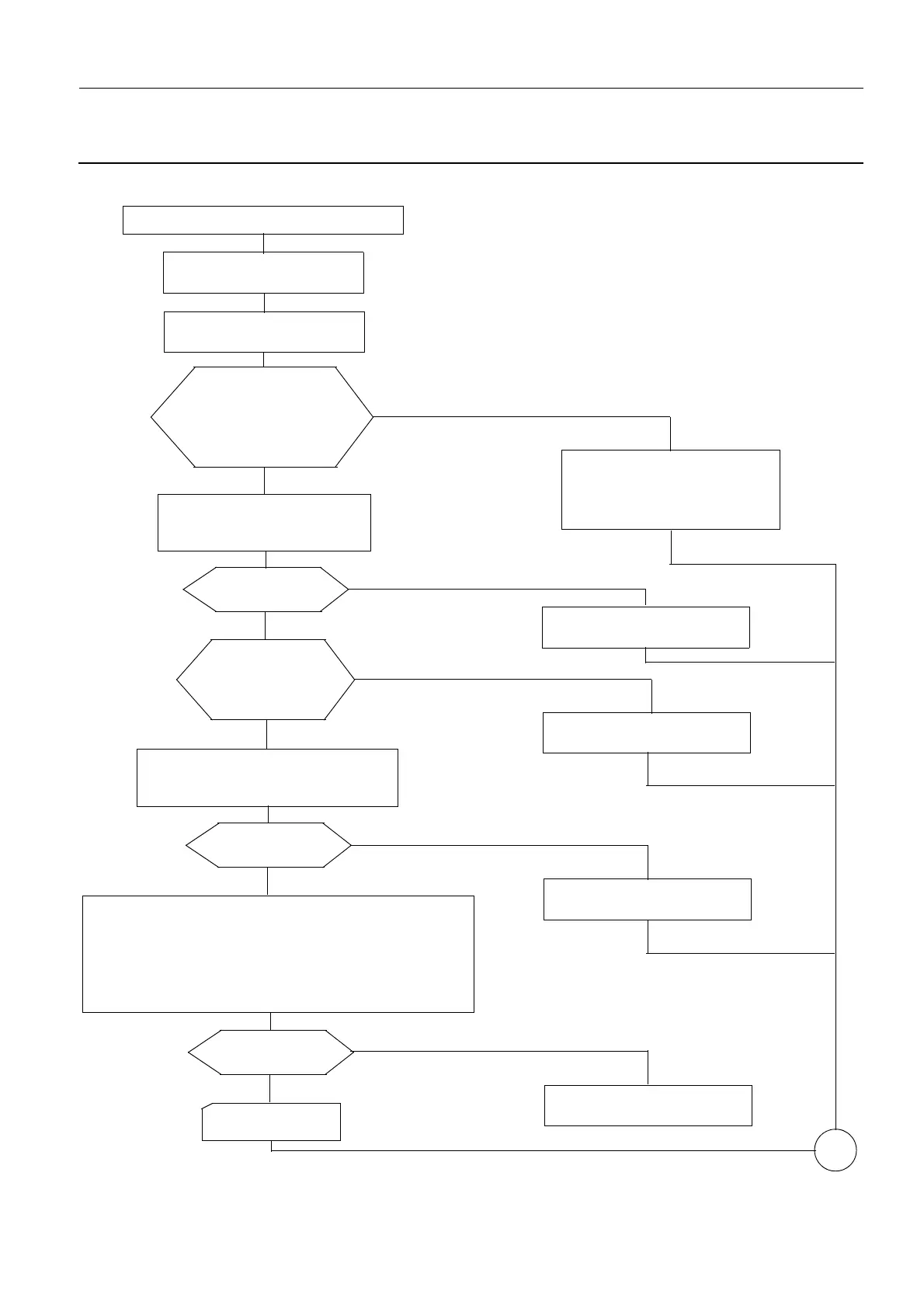

2-8 Partial Power–up Sequence
Partial power–up sequence
Open generator mains supply
switch S1 ("0" position).
On 200PL1, disconnect XJ4,
XJ6, and XJ7.
200PL1: Configuration the
of IN2 voltage selection
"strap" correct? (see
Job
Card PHY A016 - AC
Connection
on page 469)
On 200PL1, unscrew and
disconnect one end of R1 or R4.
Measure values of R1 and R4.
200PL1 R1 and R4
values correct?
Yes
200PL1: Connectivity
between R1 and R4
and surrounding
circuits OK?
Yes
Yes
On 200PL1, check continuity between
XJ7 and terminal 4 of relay X1, and
between XJ3 and terminal 7 of relay X1.
Continuity checks
OK?
Yes
On 200PL1,measure resistance between terminal 4 of relay
X1, and 0 V. The resistance must be approximately equal to
R1 and R4 in
series if strap IN2 is in position "HT" or R1 and
R4 in
parallel if strap IN2 is in position "BT". See Job Card
PHY A016 - AC Connection
on page 469 and Job Card ELE
A007 - Line Resistance Measurement
on page 547.
Resistance values
OK?
Yes
Change faulty mains
fuses F1/F2.
Correct 200PL1 IN2
configuration. (
Job Card PHY
A016 - AC Connection
on page
469) Replace faulty mains fuses.
No
No
No
No
No
Replace 200PL1 R1 and/or R4
and faulty mains fuses F1/F2.
Replace 200PL1 and faulty
mains fuses F1/F2.
Replace 200PL1 and faulty
mains fuses F1/F2.
Replace 200PL1 R1 and/or R4
and faulty mains fuses F1/F2.
D
