GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A150 - System Fuses
Page no. 1117 Chapter 9
JC-DR-A-150.fm
WARNING

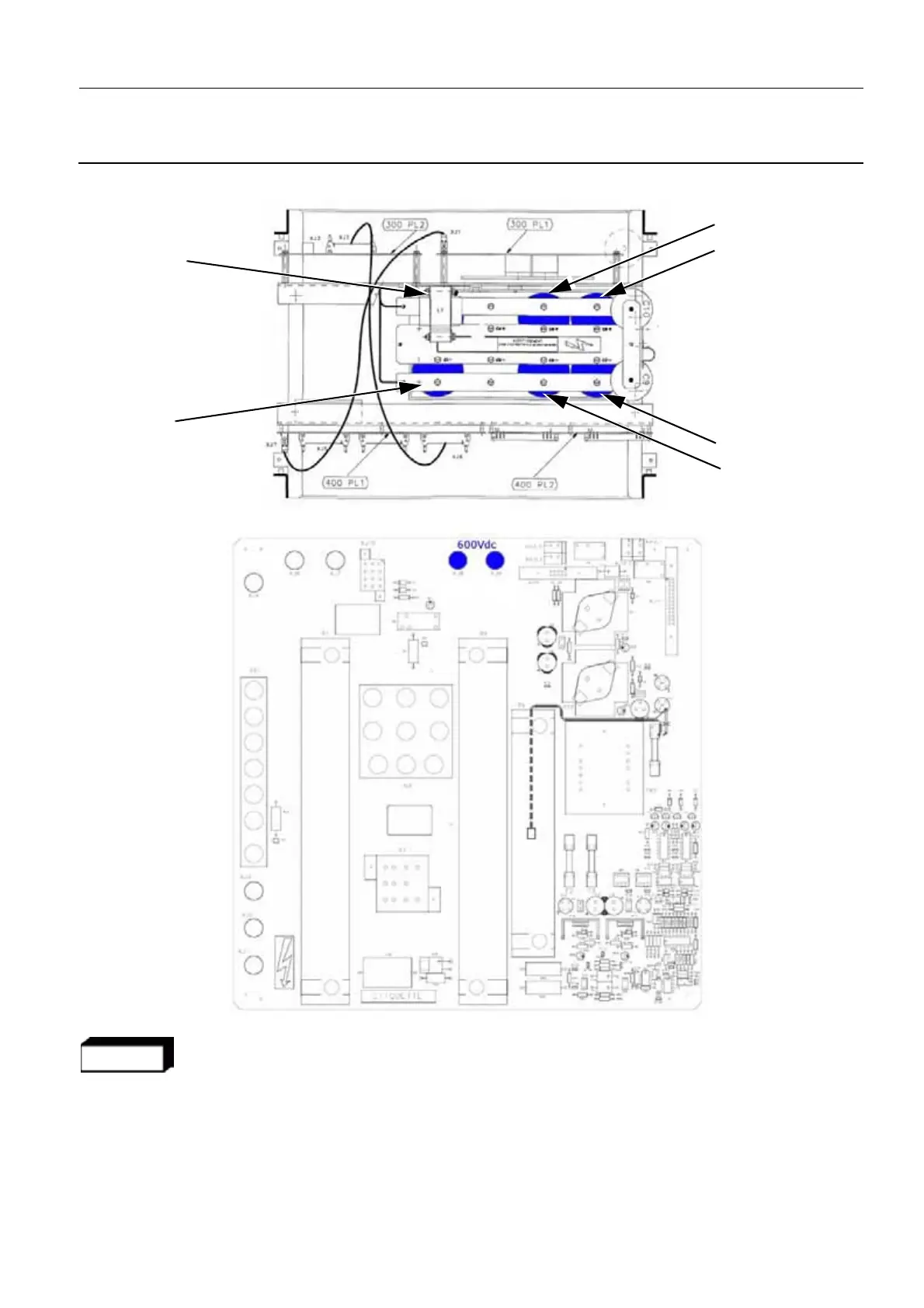

Residual voltage stored in the C1, C2, C5, C6, C7, and C8 capacitors (located behind the
Mains Distribution board can be dangerous. Ensure that the capacitors are fully dis-
charged before you handle the fuse on the Mains Distribution board.
C1
C5
XJ8
XJ9
C7
C8
C6
C2
To Next Page
