Job Card D/R A191 - PDU Board

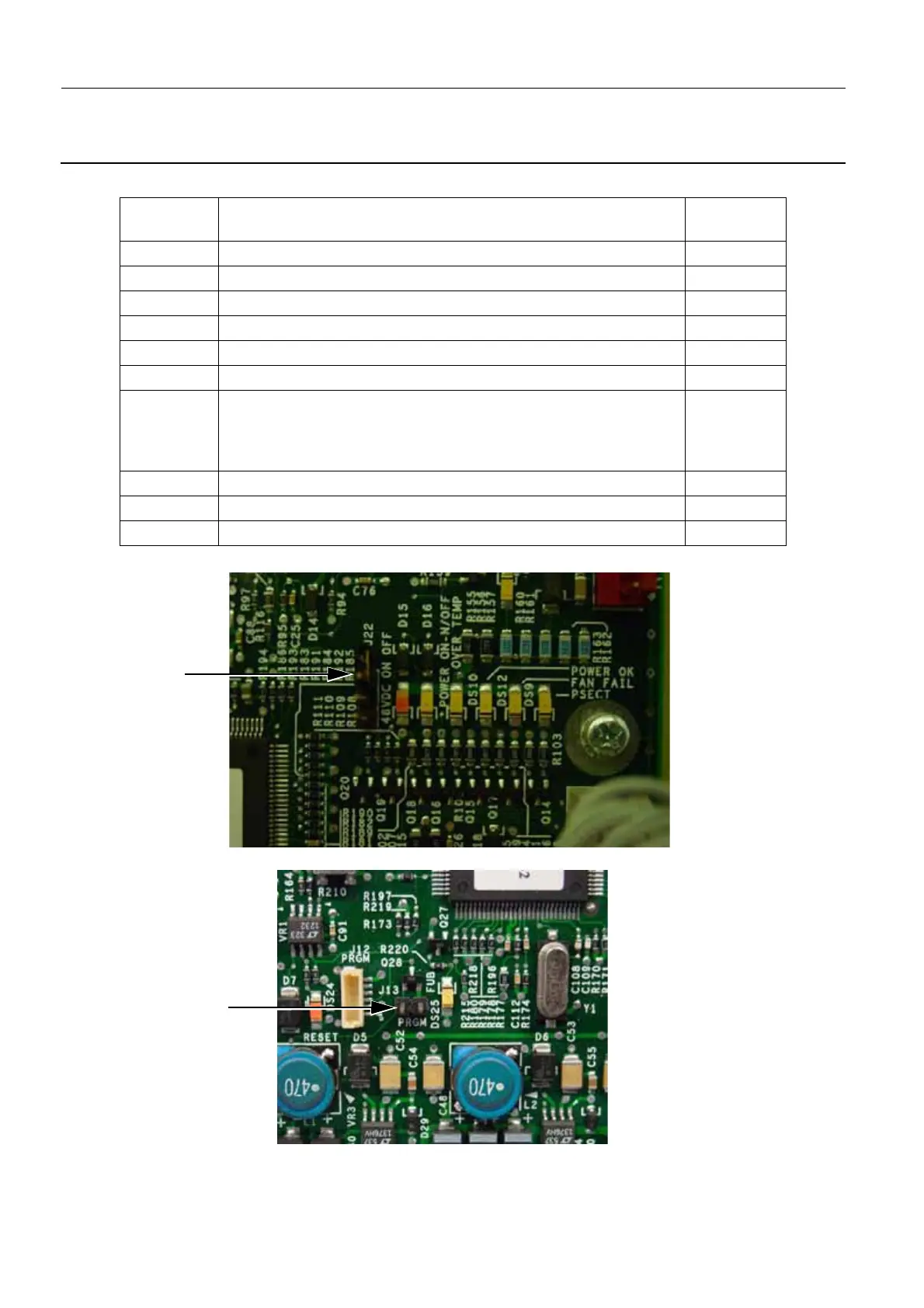

PDU board cable connections:
9. Ensure that jumper JP22 (5) on the PDU board is open and only connected to the very top connector.
10. Ensure that jumper PRGM (6) on the PDU board is open.
11. Switch on the Senographe electrical power.
Connector
Label
Description of cable
(usually identified by code on a yellow label)
Cable color
J1 J1/PL101-W104 Gray
J2 J2/PL101-W125 White
J3 No code, but cable ends with a gray ribbon cable Black
J4 2345987 Black
J5 J5/PL101-W110 Gray
J6 J6/PL101-W315 Gray
J7 Three cables arriving at the same physical connector:
J7/PL101-W114
J7/PL101-W209
2345992
Black
Gray
Gray
J8 J8/PL101-W101 Gray
J9 No cable attached N/A
J10 No cable attached N/A
5
6
