Chapter 9 Page no. 1144
JC-DR-A-192.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A192 - Arm Distribution Board
the Arm Distribution board.
5. Put the defective Arm Distribution board into an anti-static bag.

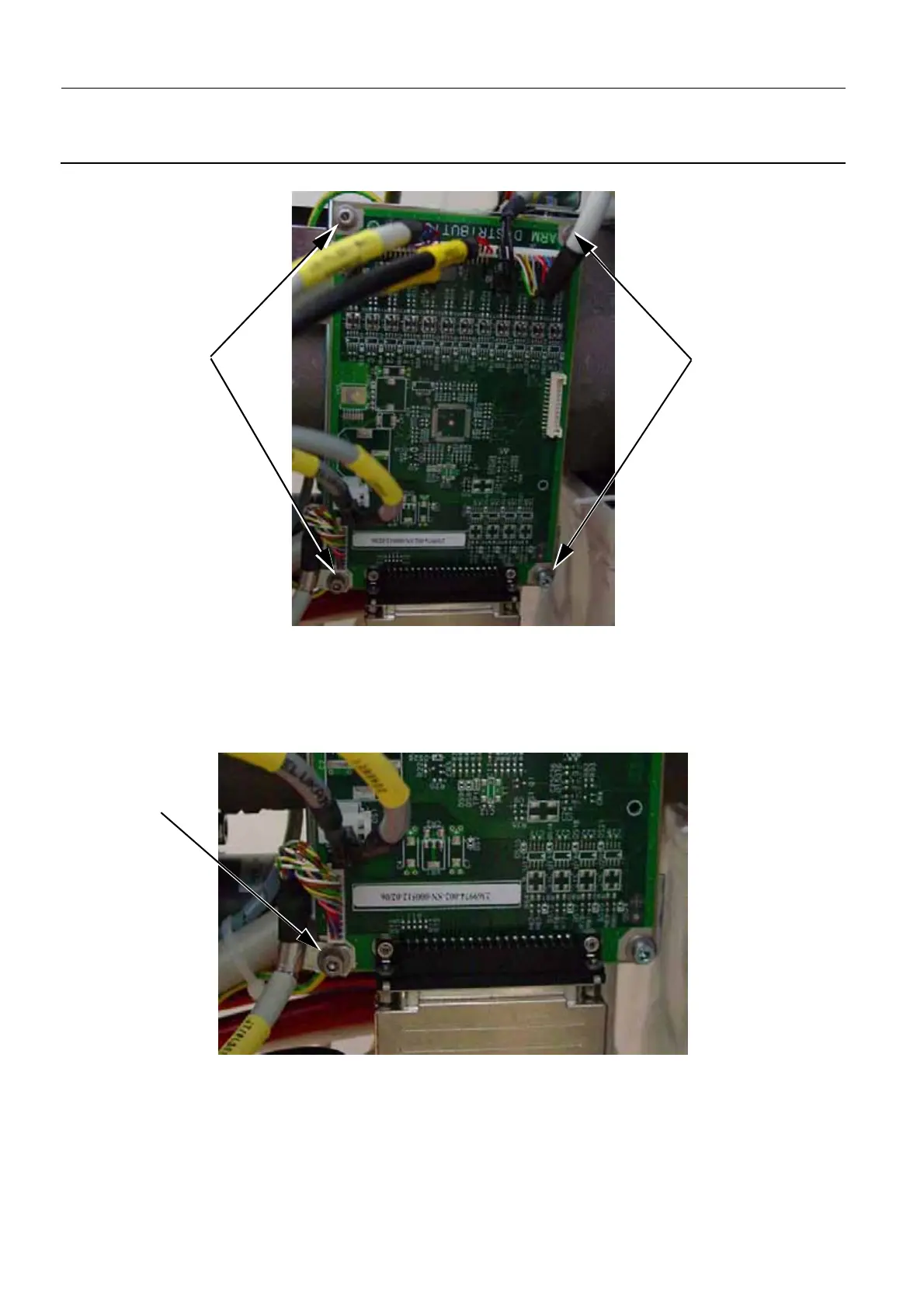

6. Install the replacement Arm Distribution board and secure it with the four screws (1) (3 mm allen
wrench). Secure the top two screws first, then the bottom right screw. When you secure the bottom
left screw, ensure that you have metal connector (2) that surrounds cable J7/PL301 attached to the
screw so that is secured to the Arm Distribution board.
7. Connect all the cables to the new Arm Distribution board as summarized in the diagram and table
1
1
2
To Next Page
