GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A192 - Arm Distribution Board
Page no. 1145 Chapter 9
JC-DR-A-192.fm
below.

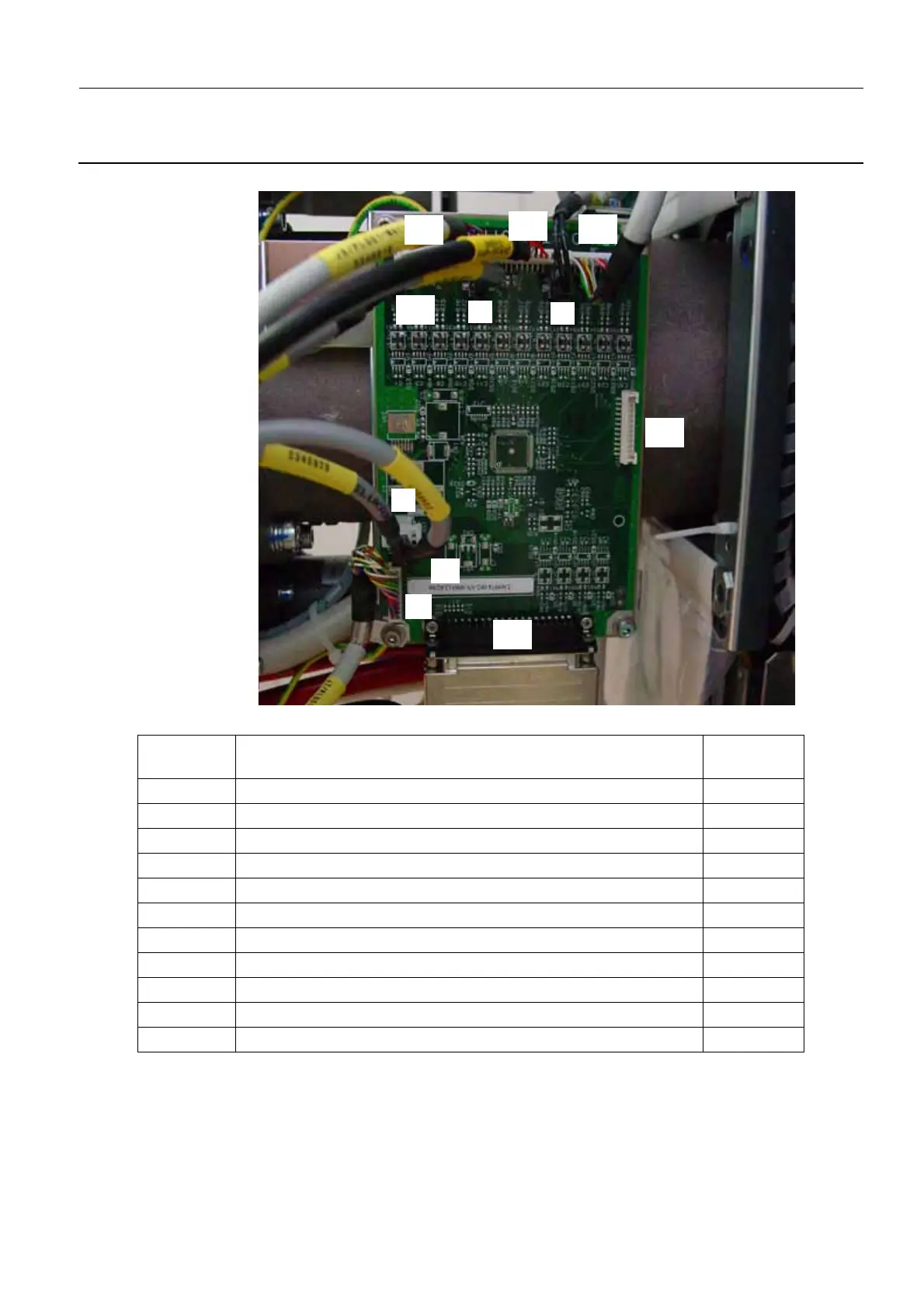

Arm Distribution board cable connections:
8. Switch on the Gantry electrical power.
9. Wait until the Gantry boot is complete, and check that no error has been reported.
10. Switch off the Gantry electrical power.
11. Reinstall the right column cover; refer to Job Card PHY A044 - Remove/Reinstall Gantry Covers on
page 523.
Connector
Label
Description of cable
(usually identified by code on a yellow label)
Cable color
J1 J1/PL301-W314 (2345920-2) Gray
J2 J2/PL301-W315 (2345921) Gray
J3 J3/PL301-W503 (5143848) Black
J4 J4/PL301-W310 (5139723) Gray
J5 J5/PL301-W307 (2371179) Gray
J6 J6/PL301-W308 (2372181) Gray
J7 J7/PL301-W409 (2345934) Gray
J8 J8/PL301-W401 (2345926) Gray
J9 J9/PL301-W411 (2345919) Gray
J10 J10/PL301-W410 (2345918) Gray
J11 No cable attached N/A
J1
J2
J5
J7
J6
J9
J8
J10
J3
J11
J4
To Next Page
