Job Card D/R A194 - AC/DC Module
Page no. 1155 Chapter 9
JC-DR-A-194.fm

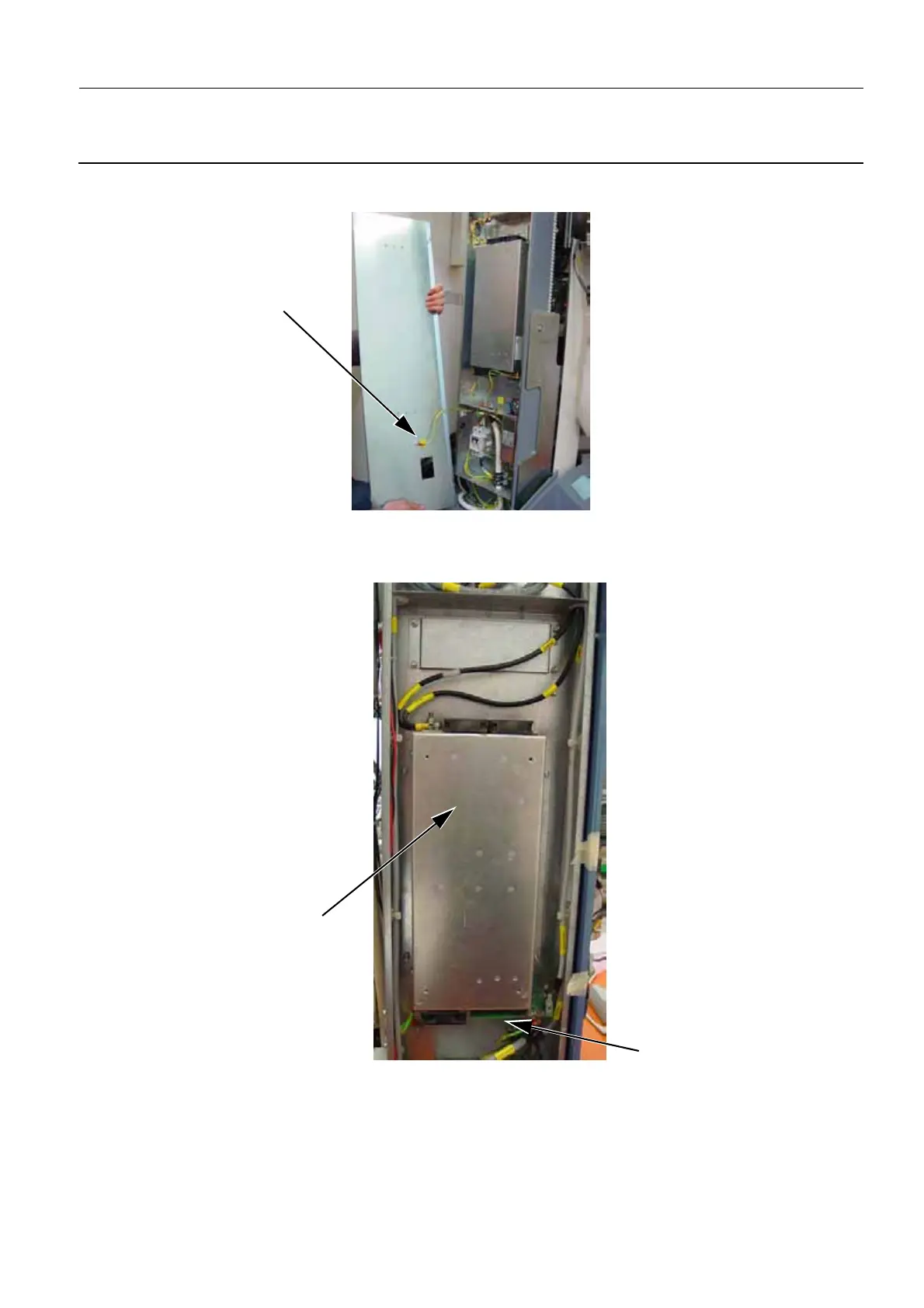

5. Remove the ground cable (5) (8 mm open ended wrench) from the bottom metal panel, and place the
bottom metal panel in a safe place.
6. Removing the bottom metal panel exposes the AC/DC Module (6), AC/DC Board (7) and associated
cabling. In this Job Card you are only replacing the AC/DC Module, but you will need to move the
AC/DC Board.
7. Disconnect the J138/PL107-W107 cable (8) and the J137/PL102-W106 cable (9) from the
5
7
6
