GE Senographe DS User Manual

GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A201 - Lift Board
Page no. 1163 Chapter 9
JC-DR-A-201.fm
6-2 Reassembly of the Lift Board

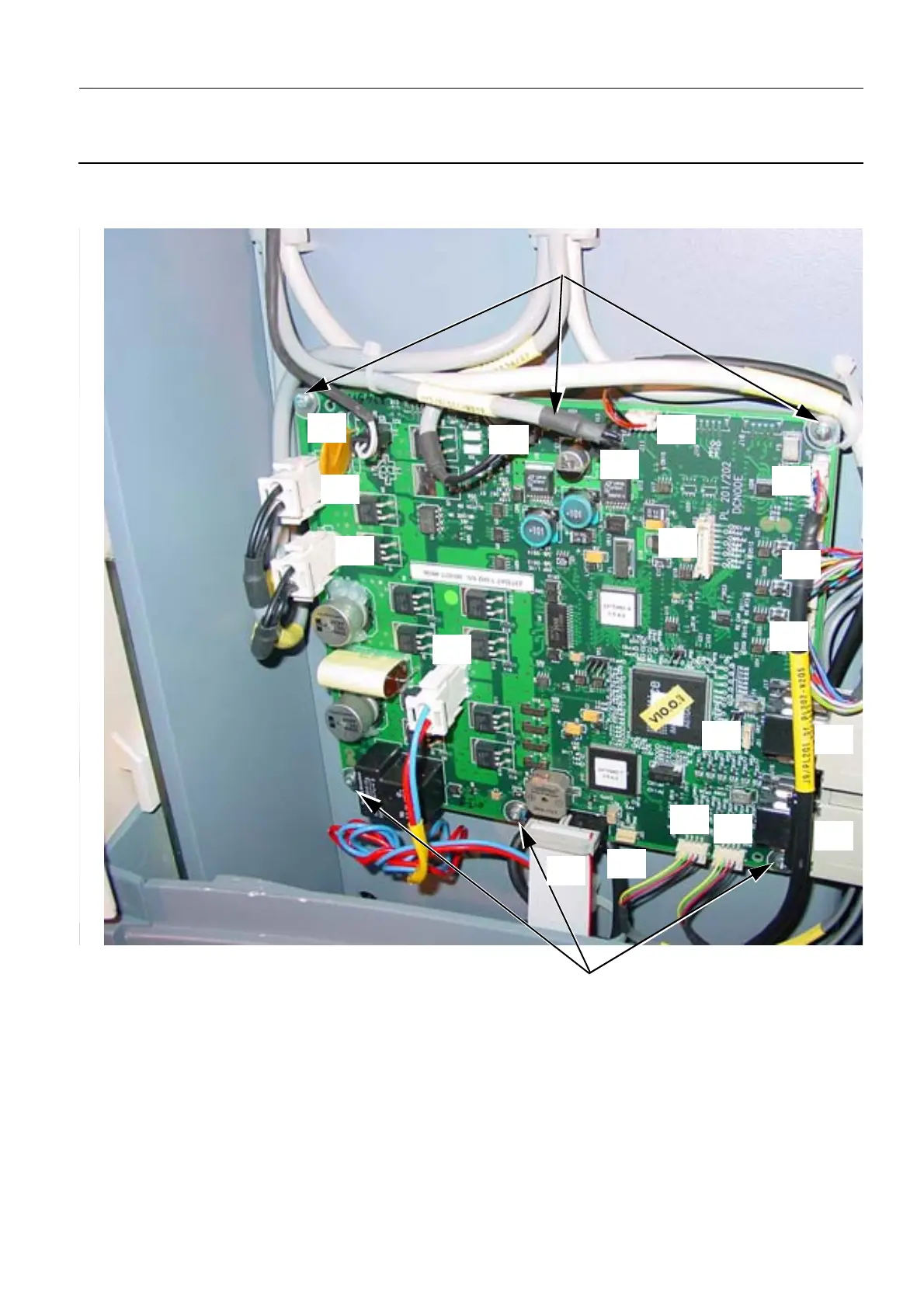

1. Put the new Lift Board in place being careful not to pinch any of the existing cables in the area.
2. Use the six screws (1) to secure the new Lift Board (cross-head screwdriver) to the side of the Gan-
try.
3. Carefully reconnect all of the cables to the new Lift Board as summarized in the diagram above and
table below.
1
1
J12
J1
J2
J4
J5
J3
J9
J10
J15
J22
J16
J17
J14
J13
J4
J23
J21
J6
