GE Senographe DS User Manual

GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A202 - Upper Optical Fork
Page no. 1169 Chapter 9
JC-DR-A-202.fm

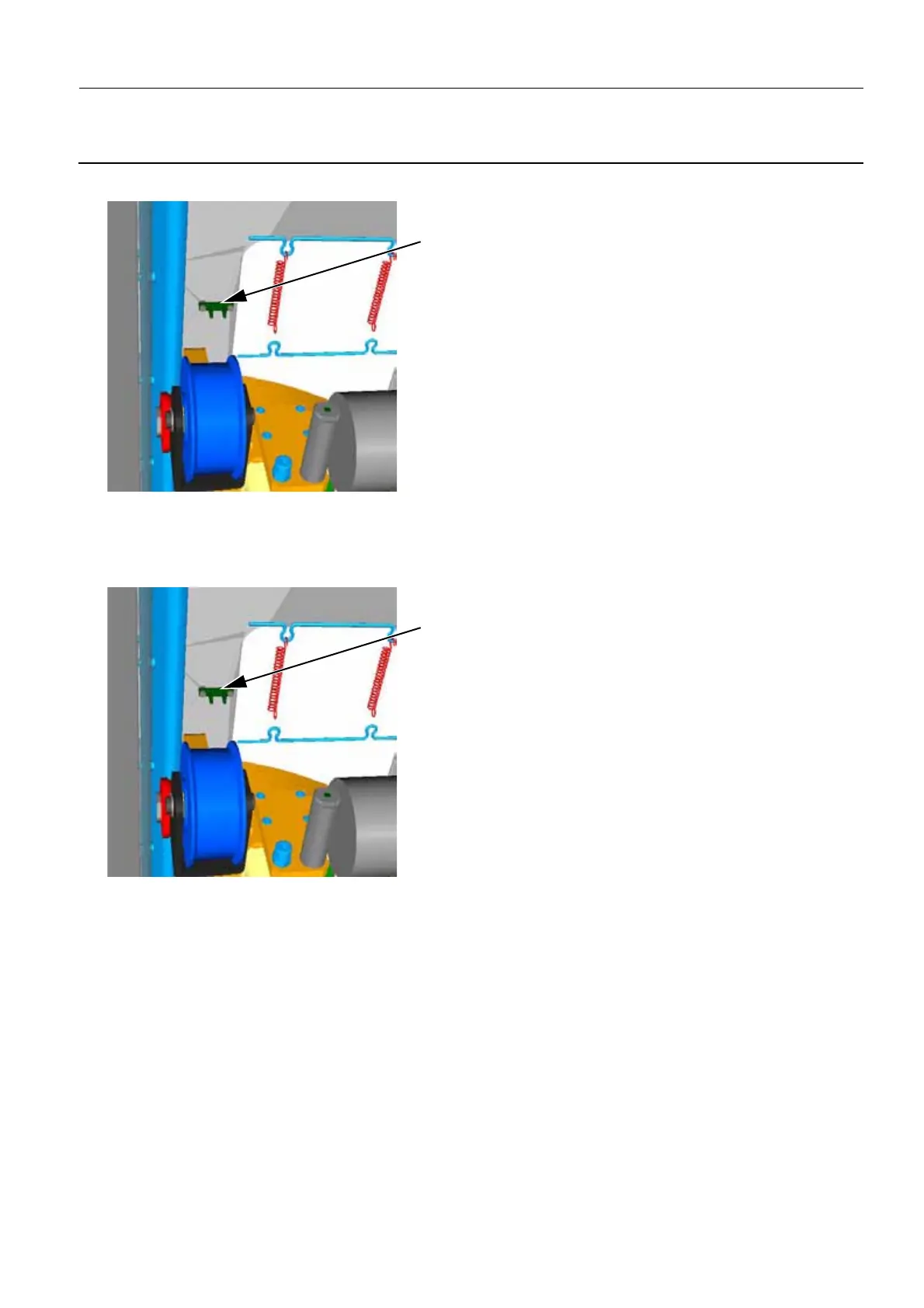

5. Release the two screws securing the Upper Optical Fork (3) (2.5 mm allen wrench).
6-2 Reassembly of the Upper Optical Fork
1. Use the two screws to secure the new Upper Optical Fork (1) (2.5 mm allen wrench) to the Gantry
frame.
2. Route the Upper Optical Fork cable (W201) down the Gantry framework past the position of the lower
Optical Fork. Then use the two screws to secure the original Lower Optical Fork back into place (2.5
mm allen wrench).
3. Connect the Upper Optical Fork cable (2) labeled J4/PL201 - W201 from the new Upper Optical Fork
3
1
