GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A203 - Lower Optical Fork
6 PROCEDURE
6-1 Disassembly of the Lower Optical Fork
1. Release the four bolts securing the lower X plate (10 mm open-ended wrench).

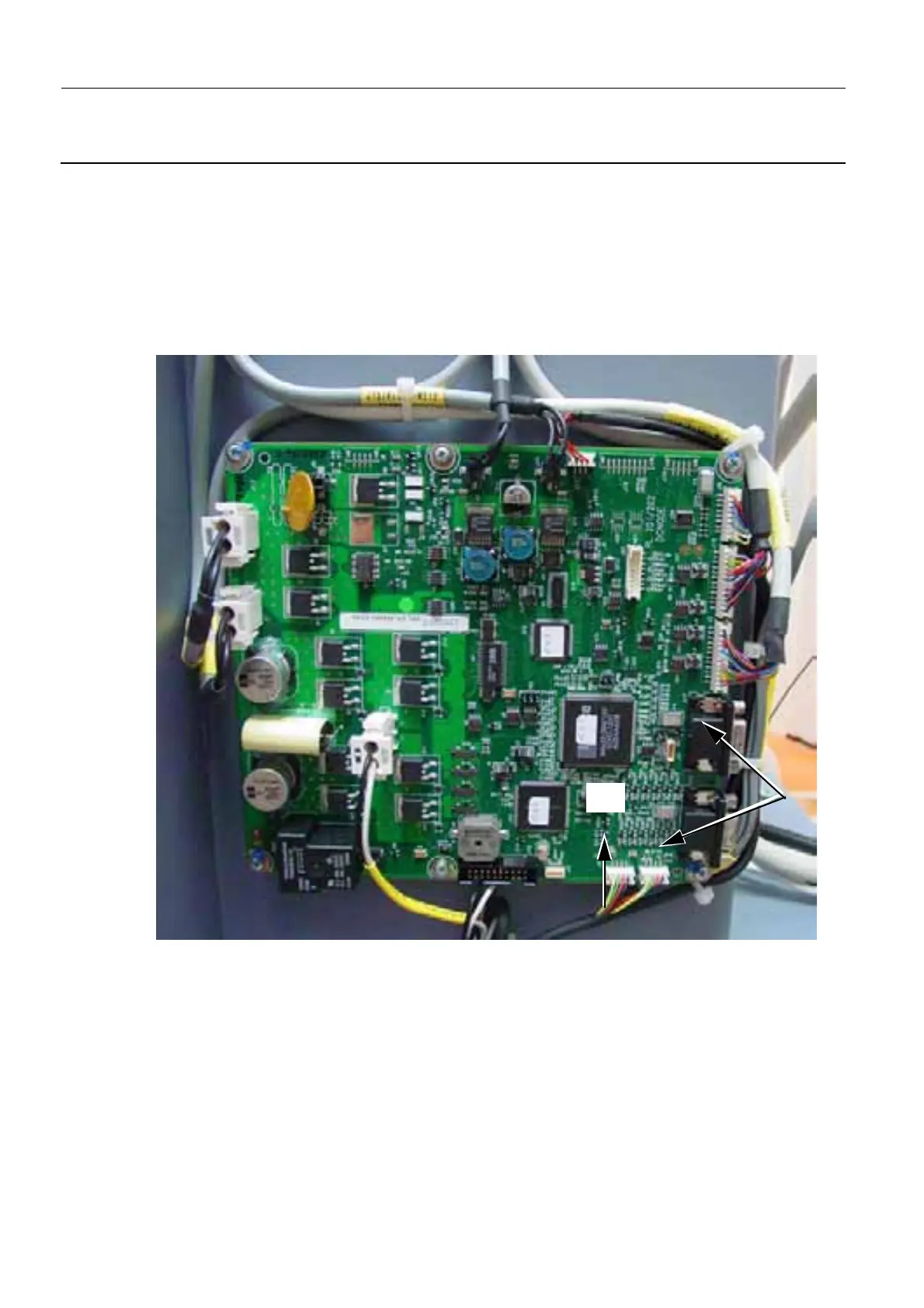

2. Disconnect the Lower Optical Fork cable (1) labeled J5/PL201 - W202 from the J5 connector on the
Lift Board.
3. Carefully cut the cable ties (2) to unattach the Lower Optical Fork cable labeled J5/PL201 - W202
from the rest of the cables running up the right-hand side of the Lift Board.
J5
2
1
