Job Card D/R A204 - Lift Potentiometer
6 PROCEDURE
6-1 Disassembly of the Lift Potentiometer

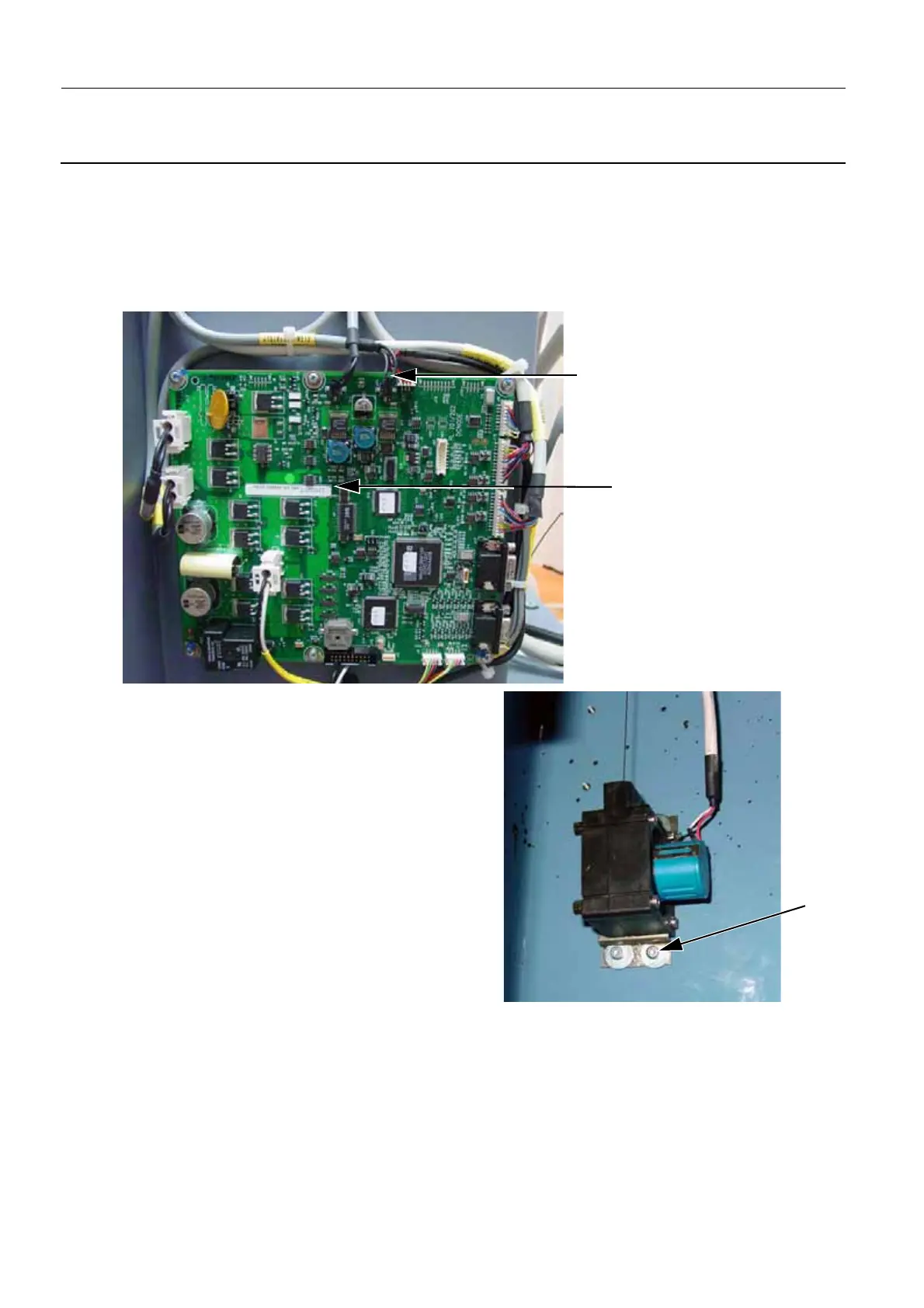

1. Release the four bolts securing the lower X plate (10 mm open-ended wrench).
2. Disconnect from the lift board (2) the Cable W203: Potentiometer cable (connector J11).
3. Release without removing the four screws (3) secur-
ing the potentiometer (2.5 mm allen wrench).
4. Slide the potentiometer out of its supports.
2
J11
3
