Chapter 9 Page no. 1180
JC-DR-A-205.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A205 - Lift Motor
5 PREREQUISITES

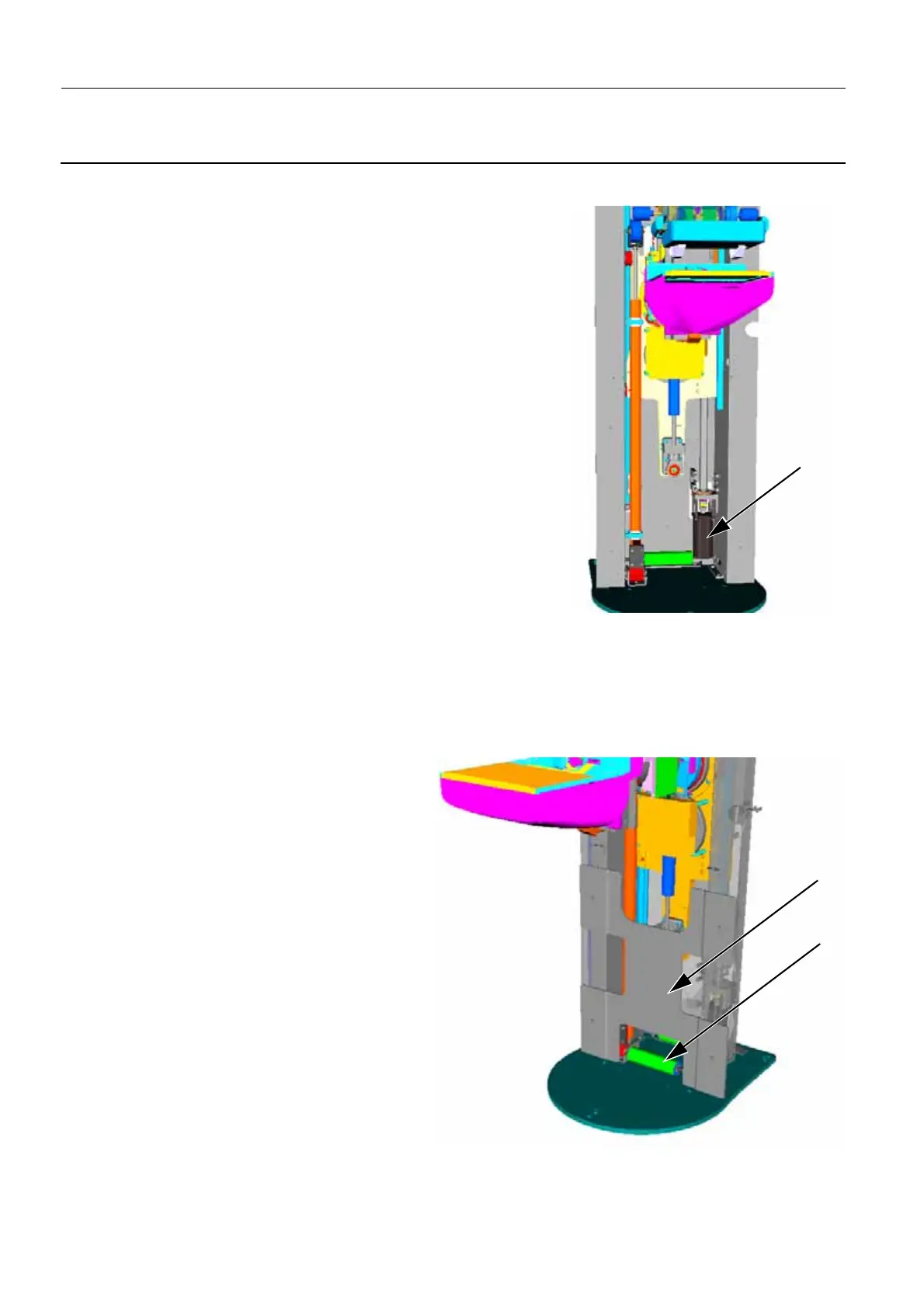

• Raise the column as required for access to the lift motor (1).
• Switch off the system power.
• Remove the front and the column covers (refer to Job Card PHY
A044 - Remove/Reinstall Gantry Covers on page 523).
• Loosen and remove the Gantry curtain (refer to Job Card D/R
A208 - Gantry Curtains on page 1193).
6 PROCEDURE
6-1 Disassembly of the Lift Motor
1. Release the bolts securing the lower X plate
(2) (10 mm open-ended wrench)
2. Remove the curtain roller (3).
1
2
3
To Next Page
