GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A205 - Lift Motor
Page no. 1181 Chapter 9
JC-DR-A-205.fm

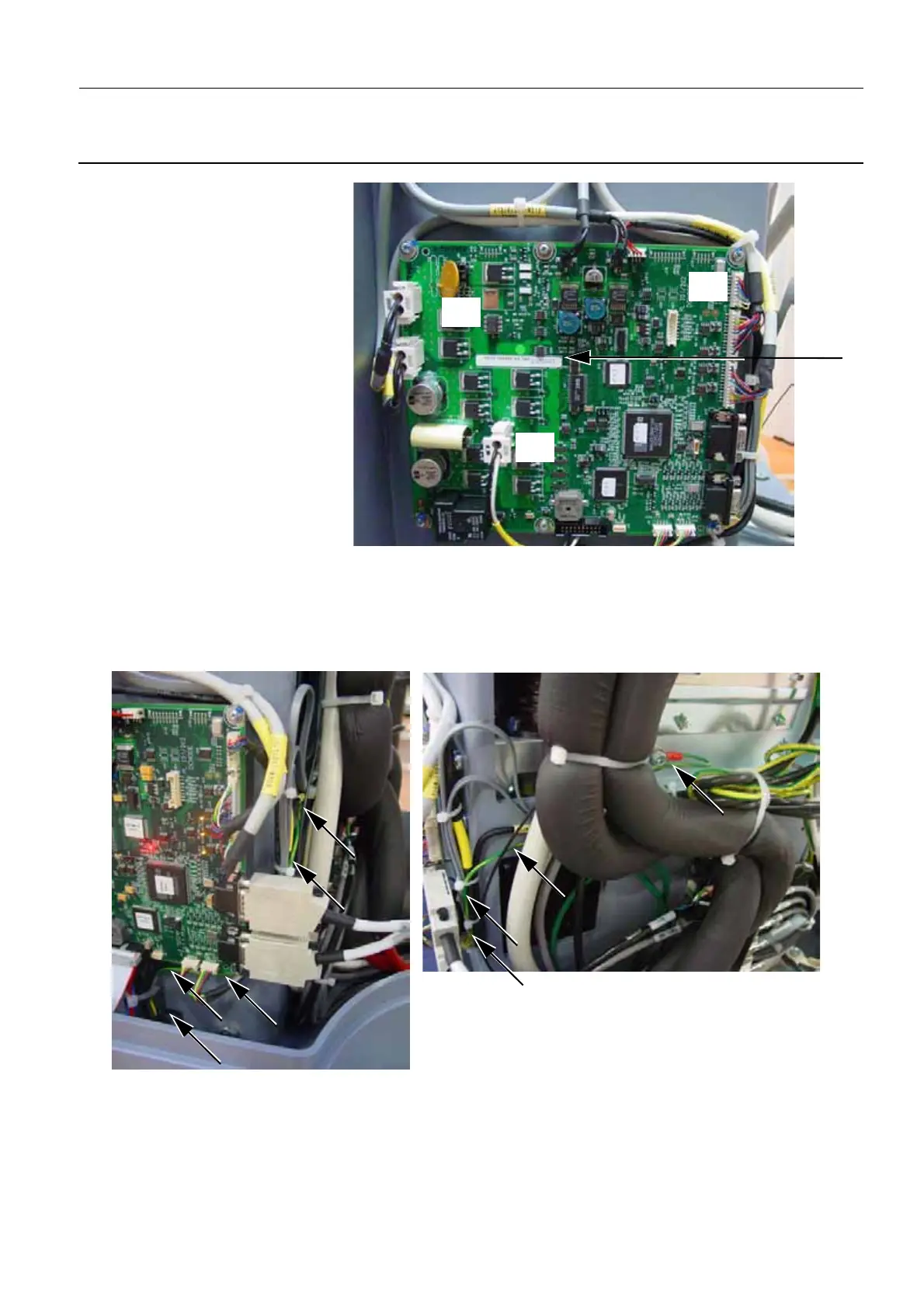

3. Disconnect from the Lift Board
(4):
• Cable W206: Lift Motor
power supply cable (con-
nector J10)
• Cable W205: Lift Motor
Encoder cable (connector
J9)
4. If an earth cable exists, disconnect the earth cable that is routed to the bottom left corner of the
Detector Power Supply plate.
5. If a Motor Brake cable exists (Type 3 Lift Screw Assemblies), disconnect the Motor Brake cable that
is connected to the J6 connector on the Lift Board.
Earth cable routing.
4
J6
J9
J10
To Next Page
