Chapter 9 Page no. 1228
JC-DR-A-222.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A222 - Clutch and Cable
5 PREREQUISITES
• Switch off the Gantry power.

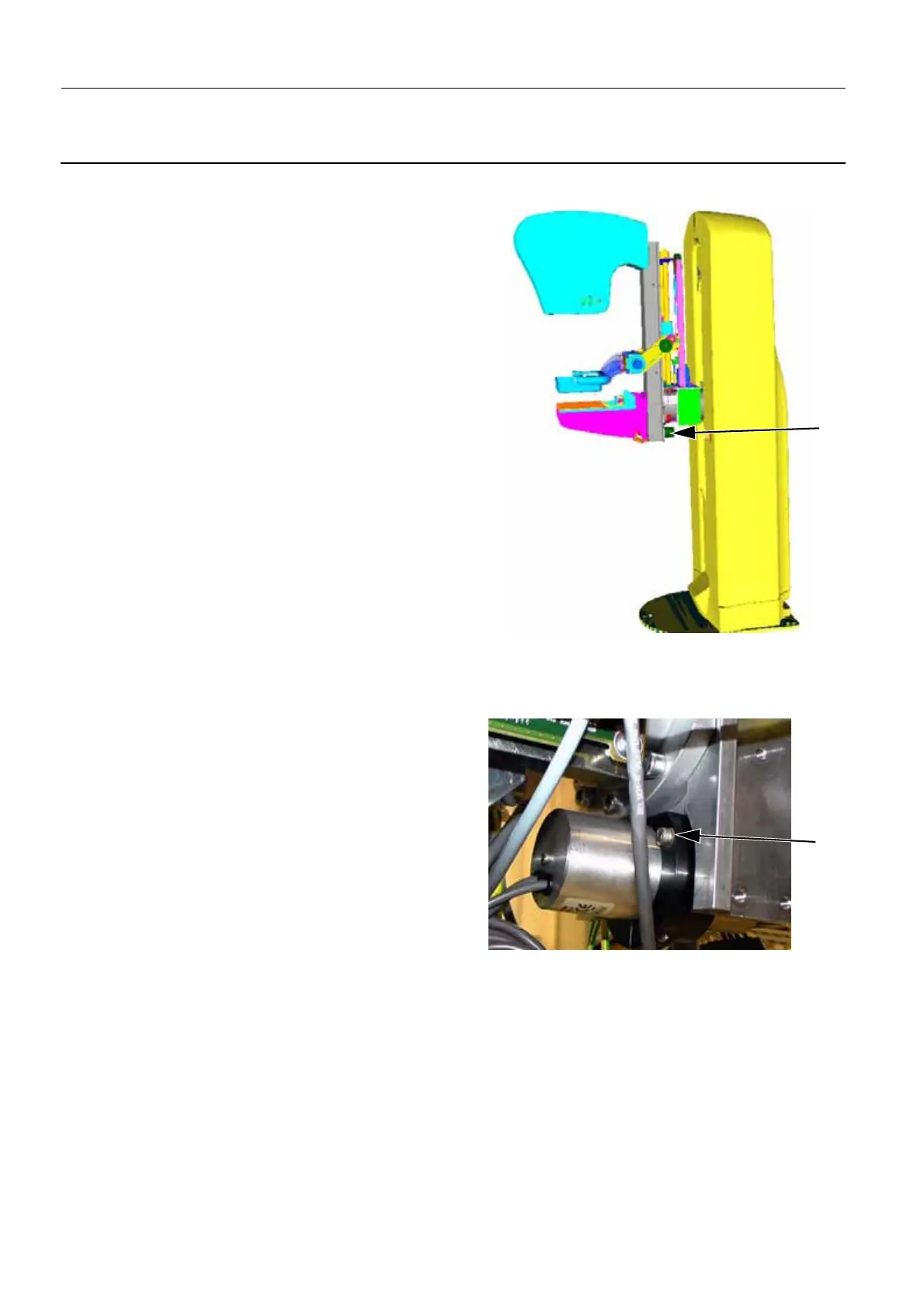

• Remove the arm and the front covers (refer to Job
Card PHY A044 - Remove/Reinstall Gantry Covers on
page 523) for access to the clutch (1).
• Loosen and remove the Gantry curtain (refer to Job
Card D/R A208 - Gantry Curtains on page 1193) for
access to the rotation board.
6 PROCEDURE
6-1 Disassembly of the Clutch
1. Unplug the clutch cables W218 and W221 from the
Rotation Board (connector J8 and J7).
2. Release and remove the two screws (2) securing
the clutch (4 mm allen wrench).
3. Remove the ring supporting the clutch (one screw -
5 mm allen wrench).
1
2
To Next Page
