GE Senographe DS User Manual

Chapter 9 Page no. 1310
JC-DR-A-247.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A247 - Motorized Compression Brake
6 PROCEDURE
6-1 Disassembly of the Motorized Compression Brake

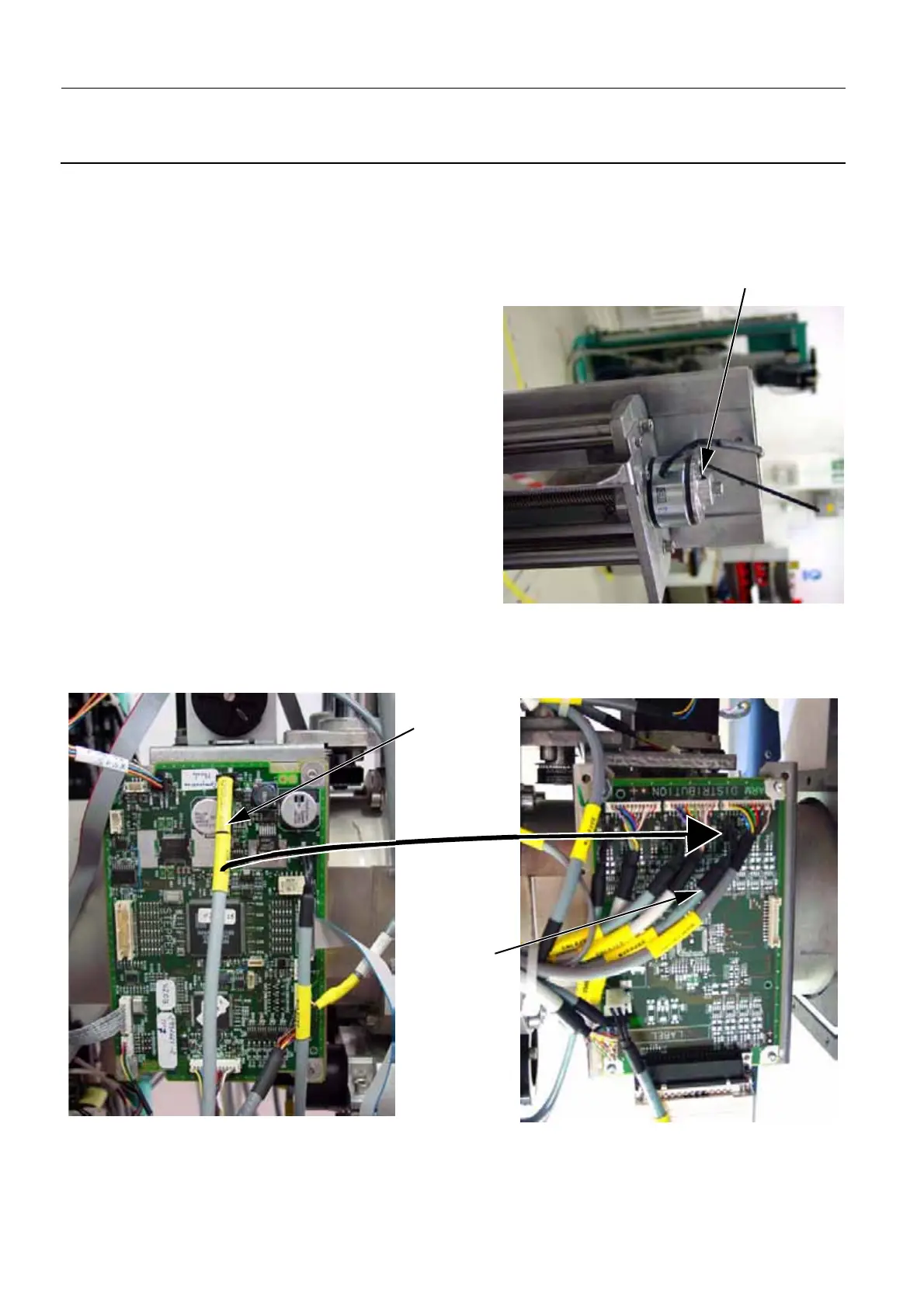

1. Loosen the screw (2) on the top of the brake (2.5 mm
allen wrench)
2. Disconnect the brake power supply cable (3) (W309) from the Compression Board (connector J5)
3. Connect the brake power supply cable (3) (W309) to the Arm Distribution Board (connector J5) in
place of the previous cable (4) (disconnect W307).
2
Compression Board
Arm Distribution Board
3
4
Connect W309
Here
