GE Senographe DS User Manual

Chapter 9 Page no. 1320
JC-DR-A-249.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A249 - W304 Cable for Paddle Recognition
6 PROCEDURE
6-1 Disassembly of the Paddle Recognition Cable

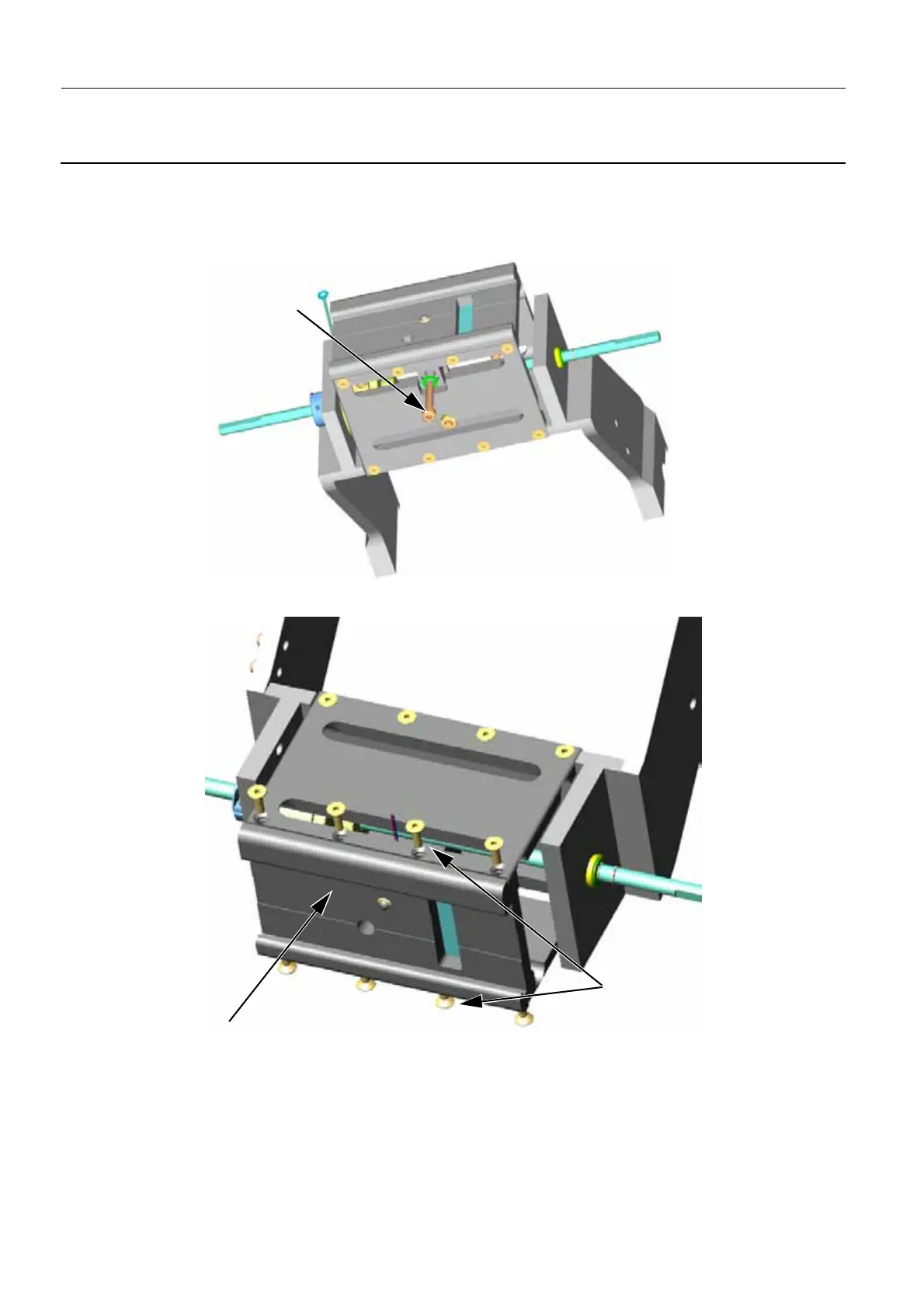

1. Remove the M6 screw (1) (5 mm allen wrench).
2. Release the four pairs of M4 screws (2) (3 mm allen wrench), and remove the Paddle Holder (3).
3. On the Paddle Holder board, carefully disconnect the Paddle Recognition cable from the J2 connec-
tor, Force Sensor cable from the J1 connector and Motor cable from the J2 connector. Disconnect
1
3
2
