GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A249 - W304 Cable for Paddle Recognition
Page no. 1321 Chapter 9
JC-DR-A-249.fm
the ground cable from the Paddle Holder.

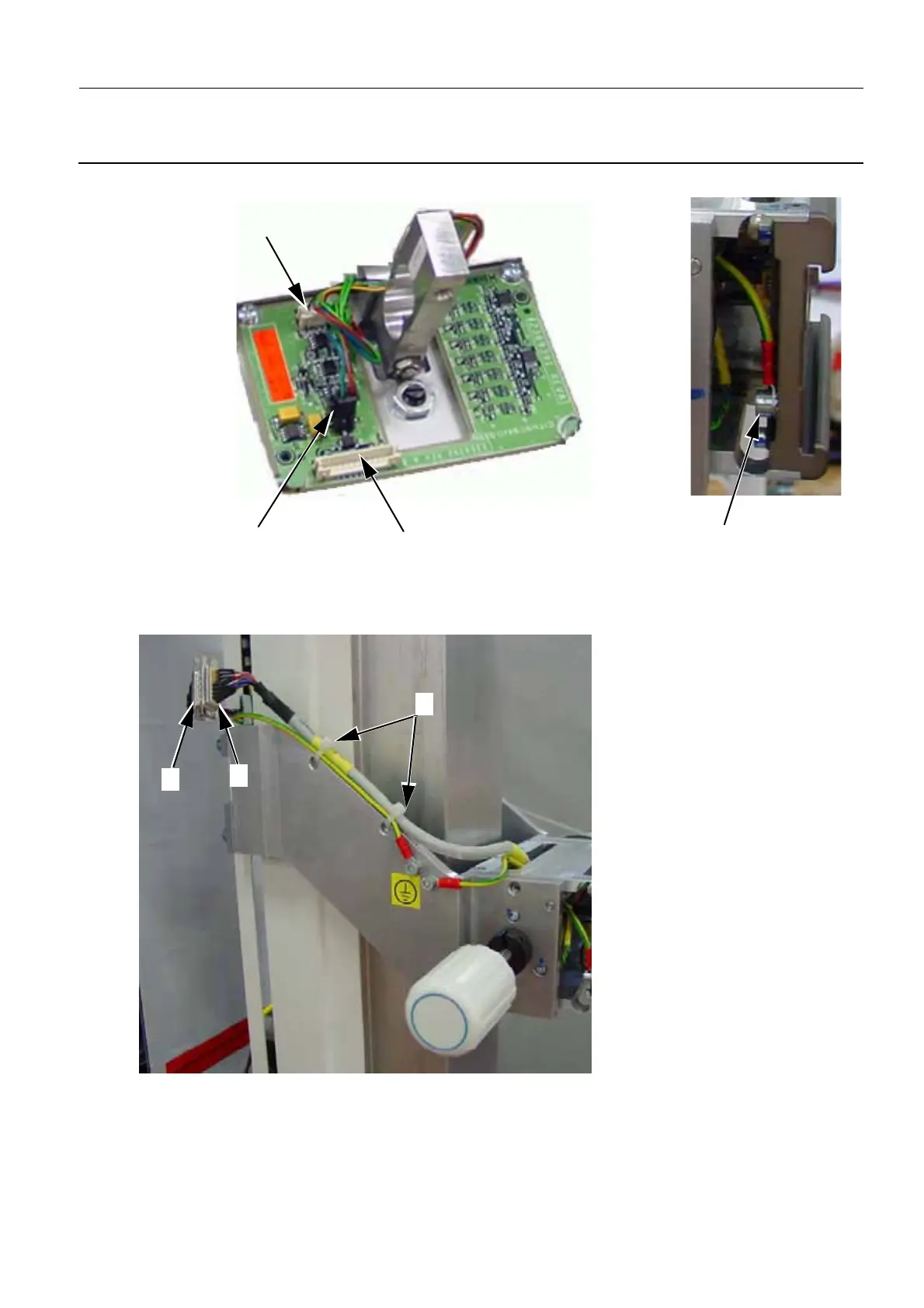

4. Taking care not to damage the earth cable, cut the cable ties (4) that secure the Paddle Recognition
cable to the side of the Compression Arm framework..
5. Carefully disconnect the D-connector (5) of the Paddle Recognition cable from the cable that leads to
the D-Connector (6) of the cable leading to the Compression Board.
J2 : Paddle Recognition Cable
J1 : Force Sensor
J3 : Manual Compression Brake
(J1 / PL304 - W304)
(J3 / PL304 - W314)
(J2 / PL304 - W319)
Paddle Holder
Earth Cable
4
6
5
To Next Page
