Chapter 9 Page no. 1322
JC-DR-A-249.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A249 - W304 Cable for Paddle Recognition
6-2 Reassembly of the Paddle Recognition Cable

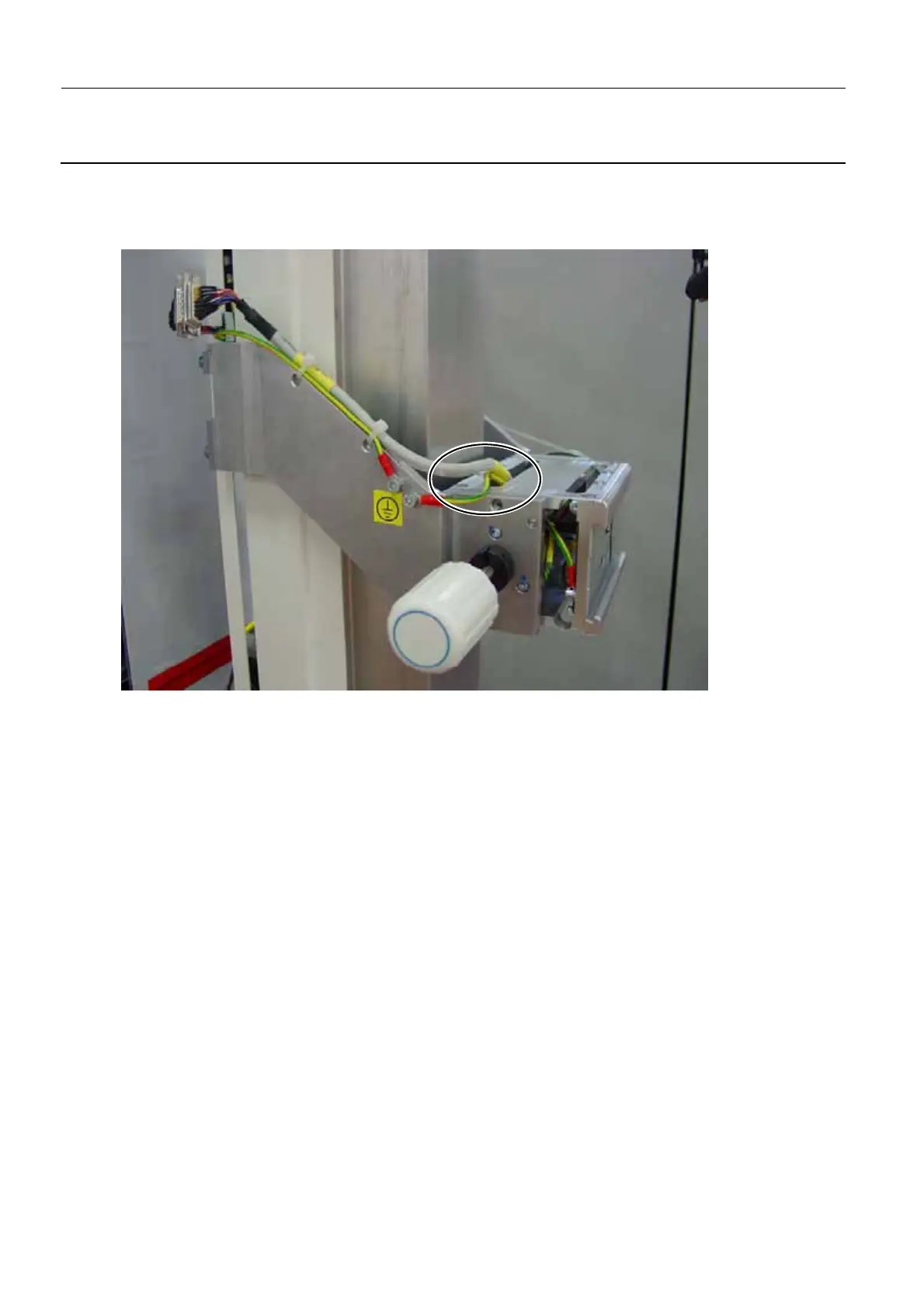

Reverse the disassembly procedure. Take care to correctly route the cables as shown in the illustration
below.
6-3 Check the Compression Movement
Check that both sets of compression/decompression pedals and the manual compression knobs located
on the paddle holder all function correctly. That is, the paddle moves up or down in response to each
control.
7 COMPLETION
None.
