Chapter 9 Page no. 1334
JC-DR-A-251.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A251 - Paddle Holder Board
the ground cable from the Paddle Holder.
4.
5. Remove the four M4 screws (4) (5 mm allen wrench).
6. Remove the Paddle Holder Board (5).

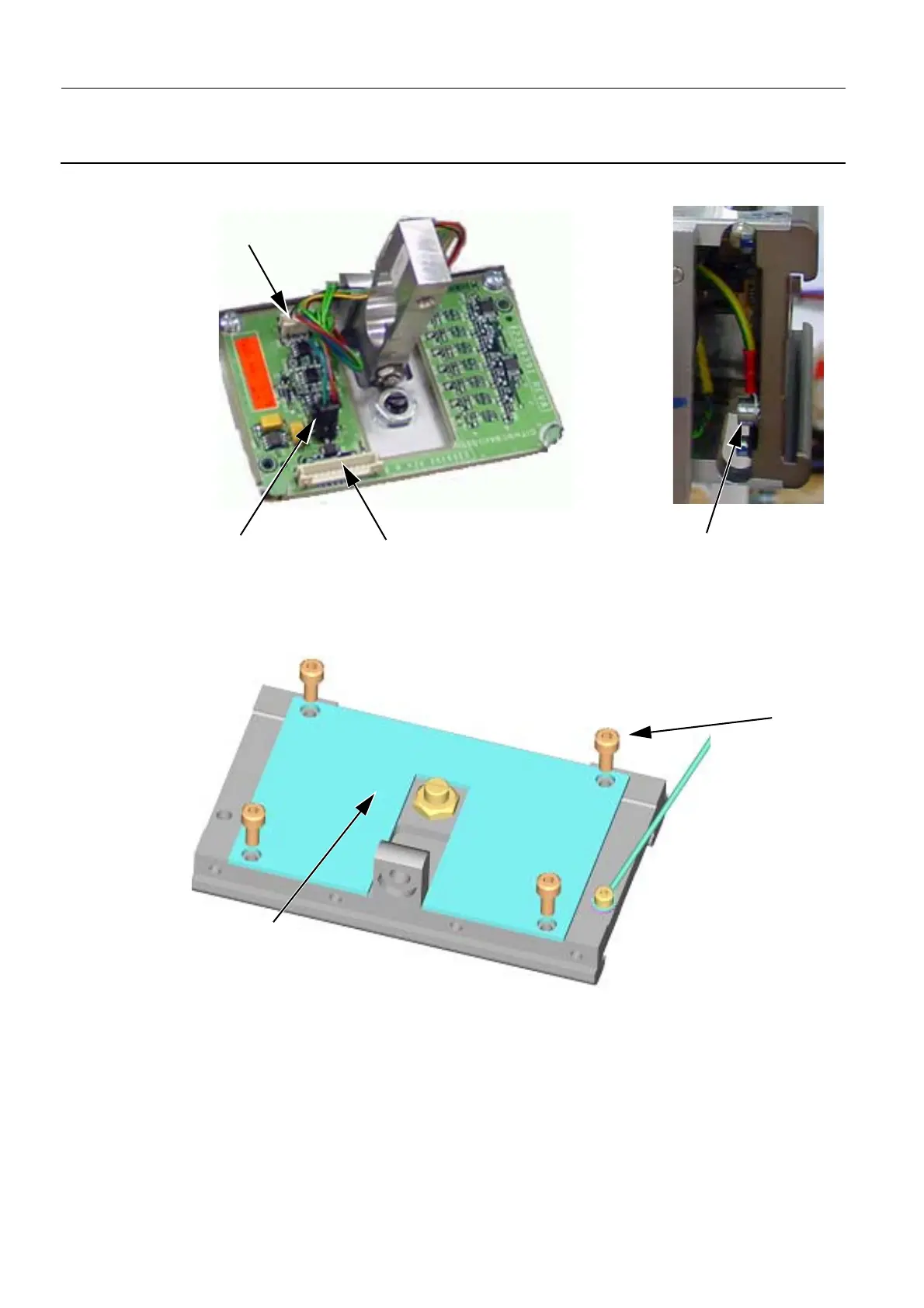

J2 : Paddle Recognition Cable
J1 : Force Sensor
J3 : Manual Compression Brake
(J1 / PL304 - W304)
(J3 / PL304 - W314)
(J2 / PL304 - W319)
Paddle Holder
Earth Cable
4
5
