GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A251 - Paddle Holder Board
Page no. 1335 Chapter 9
JC-DR-A-251.fm

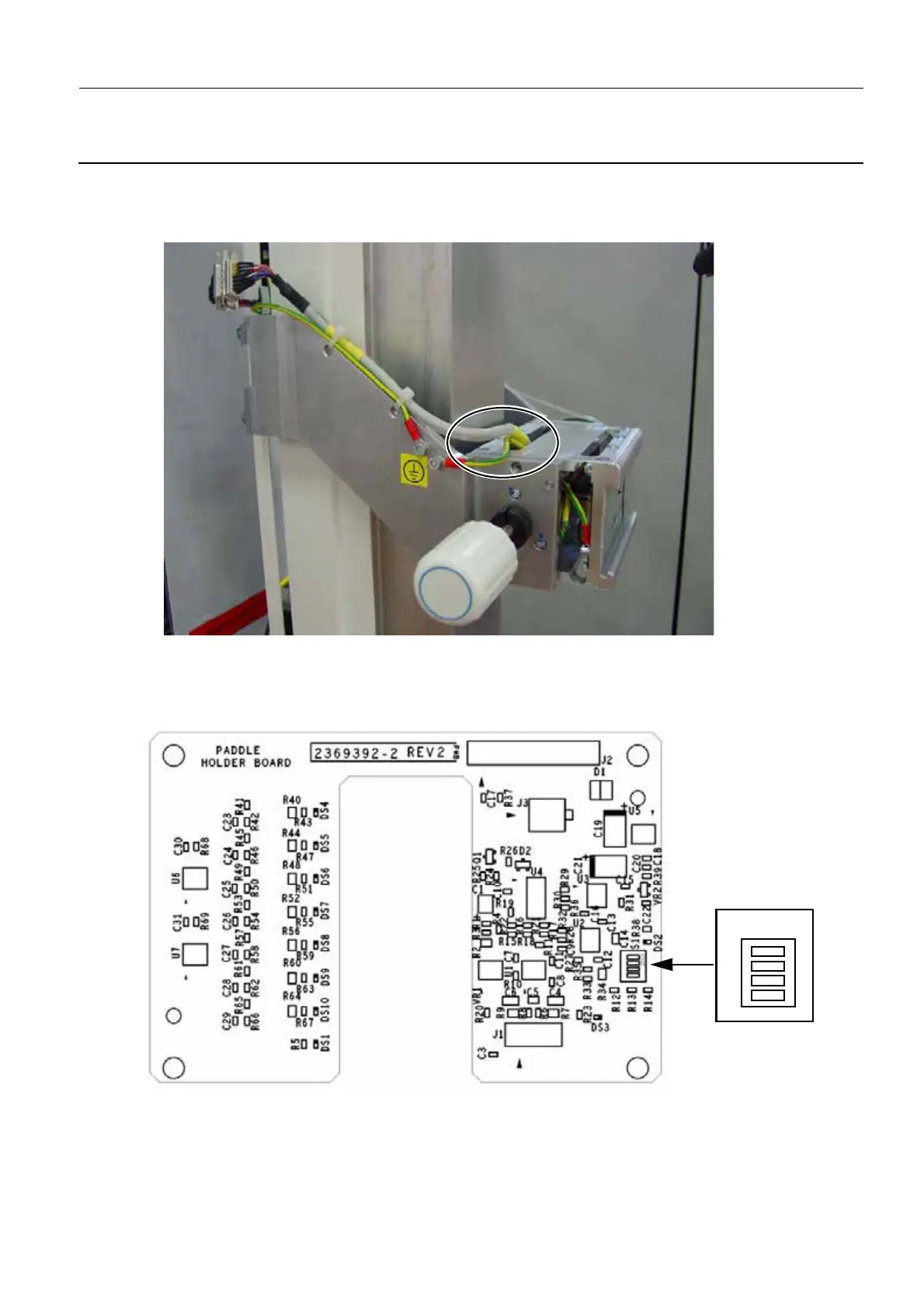

6-2 Reassembly of the Paddle Holder Board
• Reverse the disassembly procedure, however at this stage do not reinstall the Padle Holder cover.
• Take care to correctly route the cables as shown in the illustration below.
6-3 Paddle Holder Board DIP Switch Setting
If you changed the Paddle Holder Board with a Paddle Holder Board (2369391-2) with DIP switches (see
illustration below), set the DIP switches as detailed below.
If you changed Paddle Holder Board 2369391-2 with another 2369391-2, set the DIP switches of the
new Paddle Holder Board to the same position as old Paddle Holder Board.
1
2
3
4
OFF
ON
DIP Switch
